Overview

The Xamarin.Forms 100% stacked area chart displays multiple series of data as stacked areas, ensuring that the cumulative proportion of each stacked element always totals 100%. Thus, the y-axis will always render within the range 0–100. This chart type is best suited for depicting the relative contribution of data points.

Beautiful Xamarin.Forms Stacked Area 100 Charts


Key features

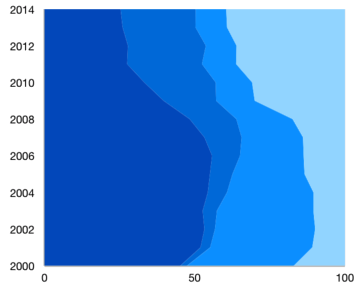

Xamarin.Forms charts show the vertical rendering of stacked area 100 chart

Vertical rendering

Rotate the 100% stacked area chart to plot data in the vertical direction and view it from a different perspective.

Xamarin.Forms charts show the empty or null data point support in stacked area 100 chart

Empty point

Empty or null data points are elegantly handled in the 100% stacked area chart.

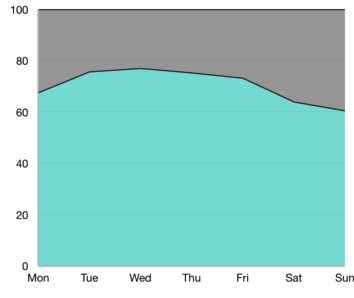

Xamarin.Forms charts show the color and stroke customization of stacked area 100 chart

Customization

Customize the color and border of the 100% stacked area chart using built-in APIs to make it visually unique.


Code example

<?xml version="1.0" encoding="utf-8" ?>
<ContentPage xmlns="http://xamarin.com/schemas/2014/forms"
             xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
             xmlns:local="clr-namespace:ChartExample"
             xmlns:chart="clr-namespace:Syncfusion.SfChart.XForms;assembly=Syncfusion.SfChart.XForms"
             x:Class="ChartExample.MainPage">

    <ContentPage.BindingContext>
        <local:ViewModel/>
    </ContentPage.BindingContext>

    <chart:SfChart>

        <chart:SfChart.PrimaryAxis>
            <chart:CategoryAxis/>
        </chart:SfChart.PrimaryAxis>

        <chart:SfChart.SecondaryAxis>
            <chart:NumericalAxis/>
        </chart:SfChart.SecondaryAxis>

        <chart:StackingArea100Series ItemsSource="{Binding Data}" XBindingPath="Month" YBindingPath="Target"/>

    </chart:SfChart>

</ContentPage>
public class Model
{
    public string Month { get; set; }

    public double Target { get; set; }

    public Model(string xValue, double yValue)
    {
        Month = xValue;
        Target = yValue;
    }
}

public class ViewModel
{
    public ObservableCollection<Model> Data { get; set; }

    public ViewModel()
    {
        Data = new ObservableCollection<Model>()
        {
            new Model("Jan", 50),
            new Model("Feb", 70),
            new Model("Mar", 65),
            new Model("Apr", 57),
            new Model("May", 48),
        };
    }
}

Learning resources

Navigate to GitHub code used to configure the Xamarin.Forms stacked area 100 chart

GitHub Code

The Xamarin.Forms 100% stacked area chart configuration code is available in GitHub.

Navigate to the options available in User Guide to customize the Xamarin.Forms stacked area 100 chart

100% Stacked Area Chart User Guide

Learn available options to customize the Xamarin.Forms 100% stacked area chart.

Navigate to the API references documentation of Xamarin.Forms stacked area 100 chart

100% Stacked Area Chart API Reference

Explore the Xamarin.Forms 100% stacked area chart APIs.
