Overview

The WPF Stacked Bar Chart visualizes data with y-values stacked over one another in the series order. It shows the relationship between individual values to the total sum of the points.

WPF Stacked Bar Chart documentation

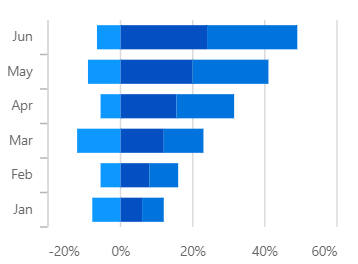

WPF Stacked Bar Chart


Key features

WPF Grouped Stacked Bar Chart

Grouped stacked chart

Group a series with another series separately using a different group name.

WPF Stacked Bar Chart showing Spacing between Bars

Spacing and width

Customize the spacing between two rectangles.

WPF Stacked Bar Chart with Customized Border and Color

UI styling

Customize the color and border of the chart using the built-in APIs to make it visually unique.


Code example

<Window x:Class="ChartExample.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:ChartExample"
        xmlns:chart="clr-namespace:Syncfusion.UI.Xaml.Charts;assembly=Syncfusion.SfChart.WPF"
        mc:Ignorable="d"
        Title="WPF Stacked Bar Chart" Height="450" Width="700">

    <!--Setting DataContext-->
    <Window.DataContext>
        <local:ViewModel/>
    </Window.DataContext>

    <StackPanel>
        <chart:SfChart Height="300" Width="500">
         <!--Initialize the horizontal axis for the WPF Chart-->
            <chart:SfChart.PrimaryAxis>
                <chart:DateTimeAxis LabelFormat="ddd" />
            </chart:SfChart.PrimaryAxis>

            <!--Initialize the vertical axis for the WPF Chart-->
            <chart:SfChart.SecondaryAxis>
                <chart:NumericalAxis />
            </chart:SfChart.SecondaryAxis>

            <!--Adding Stacked BarSeries to the WPF Chart-->

            <chart:StackingBarSeries
                ItemsSource="{Binding Accidents}"
                StrokeThickness="3"
                XBindingPath="Month"
                YBindingPath="Bus">
            </chart:StackingBarSeries>

            <chart:StackingBarSeries
                ItemsSource="{Binding Accidents}"
                StrokeThickness="3"
                XBindingPath="Month"
                YBindingPath="Car">
            </chart:StackingBarSeries>

            <chart:StackingBarSeries
                ItemsSource="{Binding Accidents}"
                StrokeThickness="3"
                XBindingPath="Month"
                YBindingPath="Truck">
            </chart:StackingBarSeries>
        </chart:SfChart>
    </StackPanel>
</Window>
public class StackingBarChartModel
    {
        public DateTime Month { get; set; }
        public double Bus { get; set; }
        public double Car { get; set; }
        public double Truck { get; set; }
    }

public class ViewModel
{
    public ObservableCollection<StackingBarChartModel> Accidents
        {
            get;
            set;
        }


    public ViewModel()
    {
          this.Accidents = new ObservableCollection<StackingBarChartModel>();
            DateTime mth = new DateTime(2011, 1, 1);

            Accidents.Add(new StackingBarChartModel() { Month = mth.AddMonths(6), Bus = 3, Car = 4, Truck = 5 });
            Accidents.Add(new StackingBarChartModel() { Month = mth.AddMonths(7), Bus = 4, Car = 5, Truck = 6 });
            Accidents.Add(new StackingBarChartModel() { Month = mth.AddMonths(8), Bus = 3, Car = 4, Truck = 5 });
            Accidents.Add(new StackingBarChartModel() { Month = mth.AddMonths(9), Bus = 4, Car = 5, Truck = 6 });
            Accidents.Add(new StackingBarChartModel() { Month = mth.AddMonths(10), Bus = 7, Car = 8, Truck = 7 });
            Accidents.Add(new StackingBarChartModel() { Month = mth.AddMonths(11), Bus = 4, Car = 5, Truck = 6 });
            Accidents.Add(new StackingBarChartModel() { Month = mth.AddMonths(12), Bus = 7, Car = 8, Truck = 7 });
            Accidents.Add(new StackingBarChartModel() { Month = mth.AddMonths(13), Bus = 4, Car = 5, Truck = 6 });
    }
}

Learning resources

Navigate to GitHub code used to configure the WPF Stacked Bar Chart

GitHub code

The WPF Stacked Bar Chart configuration code is available in GitHub.

Navigate to the options available in the user guide to customize the WPF Stacked Bar Chart

WPF Stacked Bar Chart User Guide

Learn more about the available options to customize WPF Stacked Bar Charts.

Navigate to the API reference documentation of the WPF Stacked Bar Chart.

WPF Stacked Bar Chart API references

Explore the WPF Stacked Bar Chart APIs.
