Overview

The WPF Histogram Chart is chart plotting the distribution of numerical data. Typically, this is by plotting count of objects that fall within certain data ranges. The most common data representation is bars, as a bar can represent the count with its height, and the data range with its position and its width.

WPF Histogram Chart documentation

WPF Histogram Chart


Key features

WPF Histogram Chart with Markers

Display markers

Marks the available data points within the WPF Histogram Chart segment with the built-in symbols such as cross, square, plus, inverted triangles, hexagon, ellipses, vertical lines, horizontal lines, diamonds, triangles, and pentagons.

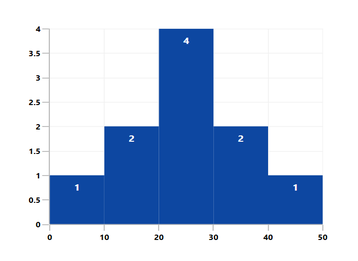

WPF Histogram Chart with Data Labels

Data labels

Data labels display information about the data points. It provides the support for customizing the foreground, border, and background in addition to template support to customize the default appearance with the desired view. You can rotate a data label by its given angle.

WPF Histogram Chart with Customized Color and Border

UI styling

Customizes the color and border of the WPF Histogram Chart using the built-in APIs to make it visually unique.

WPF Histogram Chart Showing Bell Curve

Distribution/Bell curve

Provides a graphical representation of the normal distribution of data in the WPF Histogram Chart.


Code example

<Window x:Class="ChartExample.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:ChartExample"
        xmlns:chart="clr-namespace:Syncfusion.UI.Xaml.Charts;assembly=Syncfusion.SfChart.WPF"
        mc:Ignorable="d"
        Title="WPF Histogram Chart" Height="450" Width="700">

    <!--Setting DataContext-->
    <Window.DataContext>
        <local:ViewModel/>
    </Window.DataContext>

    <StackPanel>
        <chart:SfChart Height="300" Width="500">
            <!--Initialize the horizontal axis for the WPF Chart-->
            <chart:SfChart.PrimaryAxis>
                <chart:NumericalAxis />
            </chart:SfChart.PrimaryAxis>

            <!--Initialize the vertical axis for the WPF Chart-->
            <chart:SfChart.SecondaryAxis>
                <chart:NumericalAxis />
            </chart:SfChart.SecondaryAxis>

            <!--Adding HiLo Series to the WPF Chart-->
            <chart:HistogramSeries
                HistogramInterval="10"
                ItemsSource="{Binding Product}"
                XBindingPath="Price"
                YBindingPath="Value">
            </chart:HistogramSeries>
        </chart:SfChart>
    </StackPanel>
</Window>
public class HistogramChartModel
    {
        public double Price { get; set; }

        public double Value { get; set; }

    }

public class ViewModel
{
    public ObservableCollection<HistogramChartModel> Product { get; set; }

    public ViewModel()
    {
         this.Product = new ObservableCollection<HistogramChartModel>();

            Product.Add(new HistogramChartModel() { Price = 1});
            Product.Add(new HistogramChartModel() { Price = 11 });
            Product.Add(new HistogramChartModel() { Price = 12});
            Product.Add(new HistogramChartModel() { Price = 21 });
            Product.Add(new HistogramChartModel() { Price = 22});
            Product.Add(new HistogramChartModel() { Price = 23});
            Product.Add(new HistogramChartModel() { Price = 27 });
            Product.Add(new HistogramChartModel() { Price = 33 });
            Product.Add(new HistogramChartModel() { Price = 35 });
            Product.Add(new HistogramChartModel() { Price = 43 });
    }
}

Learning resources

Navigate to GitHub code used to configure the WPF Histogram Chart

GitHub Code

The WPF Histogram Chart configuration code is available in GitHub.

Navigate to the options available in the user guide to customize the WPF Histogram Chart

WPF Histogram Chart User Guide

Learn more about the available options to customize WPF Histogram Charts.

Navigate to the API references documentation of the WPF Histogram Chart

WPF Histogram Chart API Reference

Explore the WPF Histogram Chart APIs.
