Overview

The Xamarin.Forms radar chart visualizes data in terms of values and angles. It provides options for visual comparison between several quantitative or qualitative aspects of a situation. It supports interactive features such as selection and tooltip.

Beautiful Xamarin.Forms Radar Charts


Key features

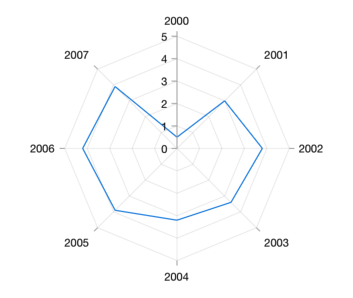

Xamarin.Forms chart shows the different draw type in radar chart

Draw type

Support for area and line rendering types in a radar chart.

Xamarin.Forms chart shows the angle customization

Angle customization

Customize the start angle of a radar chart to visualize data in a different perspective.

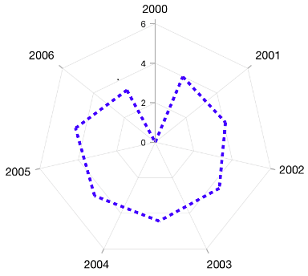

Xamarin.Forms chart shows the color and dashes customization

UI customization

Customize the color and dashes of a radar chart using built-in APIs to make it visually unique.


Code example

<?xml version="1.0" encoding="utf-8" ?>
<ContentPage xmlns="http://xamarin.com/schemas/2014/forms"
             xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
             xmlns:local="clr-namespace:ChartExample"
             xmlns:chart="clr-namespace:Syncfusion.SfChart.XForms;assembly=Syncfusion.SfChart.XForms"
             x:Class="ChartExample.MainPage">

    <ContentPage.BindingContext>
        <local:ViewModel/>
    </ContentPage.BindingContext>

    <chart:SfChart>

        <chart:SfChart.PrimaryAxis>
            <chart:CategoryAxis/>
        </chart:SfChart.PrimaryAxis>

        <chart:SfChart.SecondaryAxis>
            <chart:NumericalAxis/>
        </chart:SfChart.SecondaryAxis>

        <chart:RadarSeries ItemsSource="{Binding Data}" XBindingPath="Month" YBindingPath="Target"/>

    </chart:SfChart>

</ContentPage>
public class Model
{
    public string Month { get; set; }

    public double Target { get; set; }

    public Model(string xValue, double yValue)
    {
        Month = xValue;
        Target = yValue;
    }
}

public class ViewModel
{
    public ObservableCollection<Model> Data { get; set; }

    public ViewModel()
    {
        Data = new ObservableCollection<Model>()
        {
            new Model("Jan", 50),
            new Model("Feb", 70),
            new Model("Mar", 65),
            new Model("Apr", 57),
            new Model("May", 48),
        };
    }
}

Learning resources

Navigate to GitHub code used to configure the Xamarin.Forms radar chart

GitHub Code

The Xamarin.Forms radar chart configuration code is available in GitHub.

Navigate to the options available in User Guide to customize the Xamarin.Forms radar chart

Radar Chart User Guide

Learn available options to customize the Xamarin.Forms radar chart.

Navigate to the API references documentation of Xamarin.Forms radar chart

Radar Chart API Reference

Explore the Xamarin.Forms radar chart APIs.
