ASP.NET MVC 100% stacked line chart displays multiple series of data, ensuring that the cumulative proportion of each stacked element always totals 100%. Hence, the y-axis will always be rendered with the range 0–100. overview

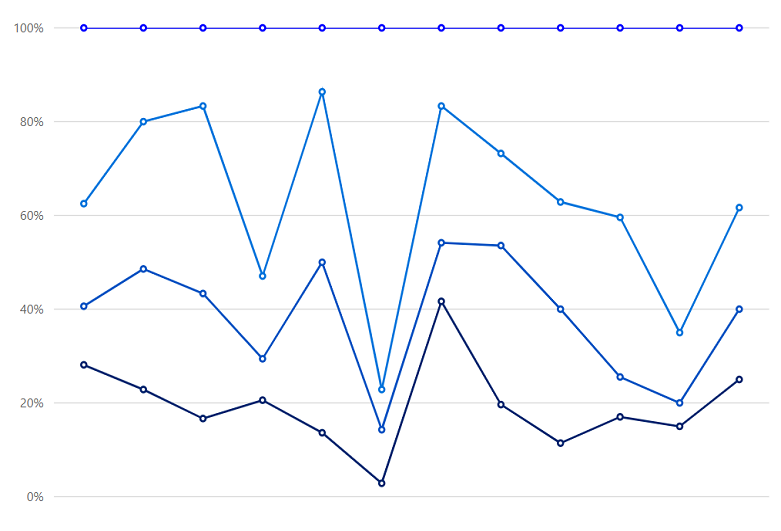

Marks data points with built-in shapes such as circles, rectangles, ellipses, vertical lines, horizontal lines, diamonds, triangles, pentagons, crosses, and pluses. In addition to these shapes, use images to make the point more attractive.


Data label

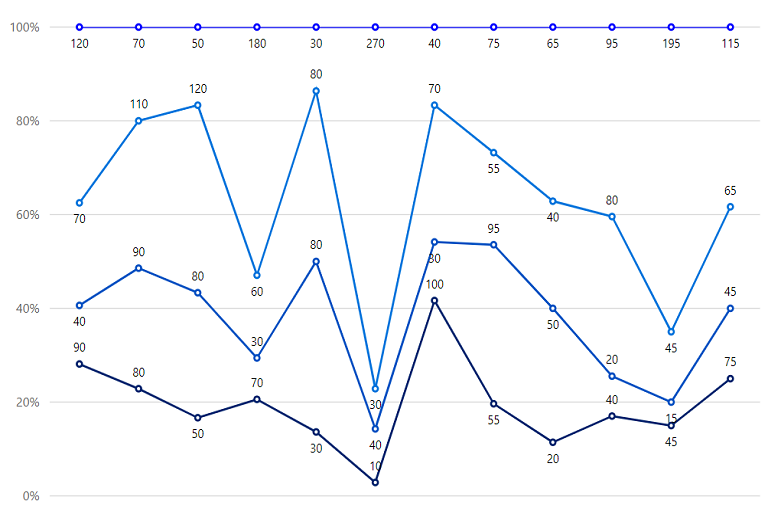

Data labels display information about data points. Add a template to display data labels with HTML elements such as images, DIV, and spans for more informative data labels. You can rotate a data label by its given angle.


Multiple axes

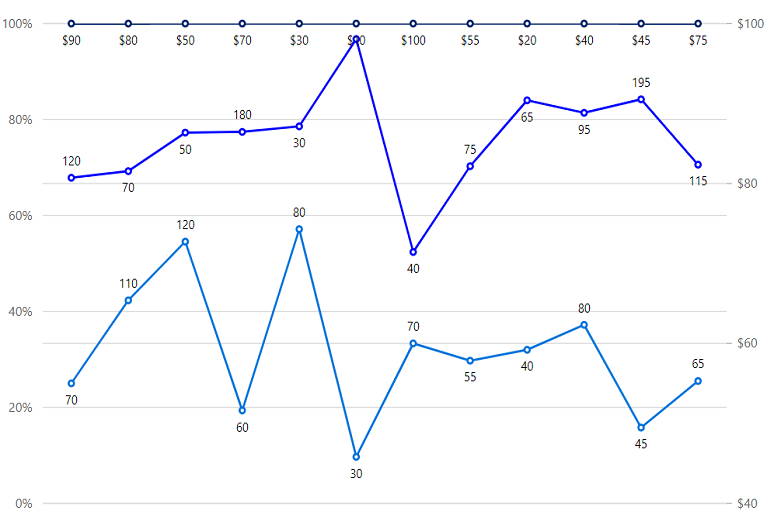

Use multiple axes to plot different data sets that widely vary from one other.

multiple axes

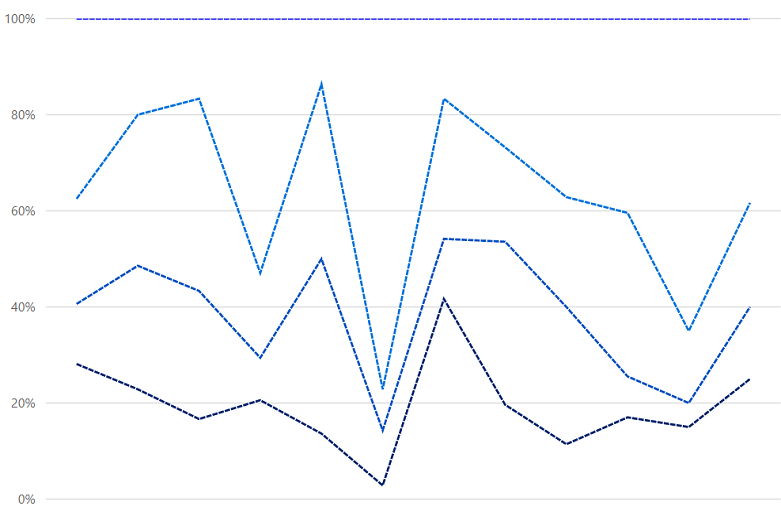

Customize the look and feel of the 100% stacked line chart using built-in APIs.

dashed line

ASP.NET MVC 100% Stacked Line Chart Code Example

Easily get started with ASP.NET MVC 100% Stacked Line Chart using a few simple lines of C# code example as demonstrated below. Also explore our ASP.NET MVC 100% Stacked Line Chart Example that shows you how to render and configure the chart.

@Html.EJS().Chart("container").Series(series =>
    series.Type(Syncfusion.EJ2.Charts.ChartSeriesType.StackingLine100).Marker(mks => mks.Visible(true)).XName("x").YName("y").DataSource(ViewBag.dataSource).Name("John").DashArray("5,1").Add();
     series.Type(Syncfusion.EJ2.Charts.ChartSeriesType.StackingLine100).Marker(mks => mks.Visible(true)).XName("x").YName("y1").DataSource(ViewBag.dataSource).Name("Peter").DashArray("5,1").Add();
     series.Type(Syncfusion.EJ2.Charts.ChartSeriesType.StackingLine100).Marker(mks => mks.Visible(true)).XName("x").YName("y2").DataSource(ViewBag.dataSource).Name("Steve").DashArray("5,1").Add();
     series.Type(Syncfusion.EJ2.Charts.ChartSeriesType.StackingLine100).Marker(mks => mks.Visible(true)).XName("x").YName("y3").DataSource(ViewBag.dataSource).DashArray("5,1").Add();
}).PrimaryXAxis(px => px.ValueType(Syncfusion.EJ2.Charts.ValueType.Category)).Render();
public class HomeController : Controller
 public ActionResult Index()
        List<StackedLineChartData> chartData = new List<StackedLineChartData>
                    new StackedLineChartData { x= "Food", y= 90, y1= 40, y2= 70, y3= 120 },
                    new StackedLineChartData { x= "Transport", y= 80, y1= 90, y2= 110, y3= 70 },
                    new StackedLineChartData { x= "Medical", y= 50, y1= 80, y2= 120, y3= 50 },
                    new StackedLineChartData { x= "Clothes", y= 70, y1= 30, y2= 60, y3= 180 },
                    new StackedLineChartData { x= "Personal Care", y= 30, y1= 80, y2= 80, y3= 30 },
                    new StackedLineChartData { x= "Books", y= 10, y1= 40, y2= 30, y3= 270 },
                    new StackedLineChartData { x= "Fitness", y= 100,y1= 30, y2= 70, y3= 40 },
                    new StackedLineChartData { x= "Electricity", y= 55, y1= 95, y2= 55, y3= 75 },
                    new StackedLineChartData { x= "Tax", y= 20, y1= 50, y2= 40, y3= 65 },
                    new StackedLineChartData { x= "Pet Care", y= 40, y1= 20, y2= 80, y3= 95 },
                    new StackedLineChartData { x= "Education", y= 45, y1= 15, y2= 45, y3= 195 },
                    new StackedLineChartData { x= "Entertainment", y= 75, y1= 45, y2= 65, y3= 115 }
            ViewBag.dataSource = chartData;
            return View();
 public class StackedLineChartData
            public string x;
            public double y;
            public double y1;
            public double y2;
            public double y3;

Learning Resources


100% Stacked Line Chart User Guide

Learn the available options to customize ASP.NET MVC 100% stacked line chart.


100% Stacked line Chart API Reference

Explore the ASP.NET MVC 100% stacked line chart APIs.
