Axes in a Cartesian chart play a vital role in identifying the value of the visualized data. Charts typically have two axes that are used to measure and categorize data: Vertical axis (y-axis) and horizontal axis (x-axis).

The vertical axis always uses a numerical scale. The horizontal axis supports the following scale types:

  • Category
  • Numeric
  • Date-time

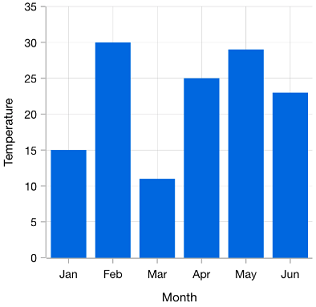

WinUI chart shows the category axis in X scale.


The categorical axis is a nonlinear axis that displays text in axis labels.

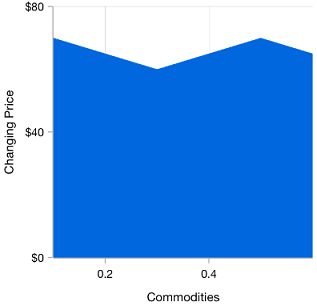

WinUI chart shows the numerical axis in Y scale.


The numerical axis is a linear axis that displays numbers with an equal interval in axis labels.

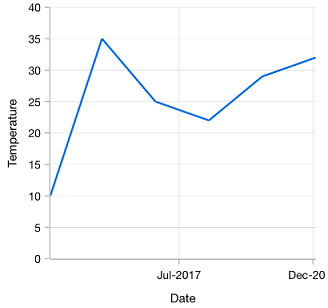

WinUI chart shows the date-time axis in X scale.


The date-time axis displays date-time values with an equal interval in axis labels. It is typically used as an x-axis.

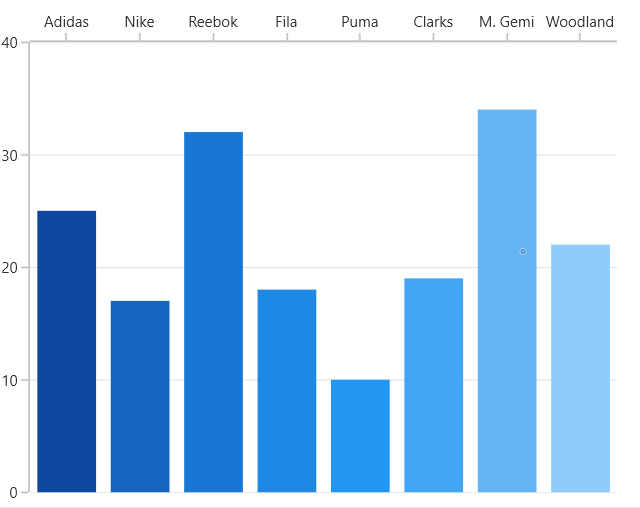

WinUI Cartesian Charts control with multiple axes in opposite positions.

Opposed axis

Cartesian Charts support opposed axis being rendered in a side opposite to the default position.

WinUI Cartesian Charts control with inversed axis.

Inversed axis

There is support for inverting values in an axis.

WinUI Cartesian Charts control with customized axis labels.

Axis labels

Cartesian Charts provide many customization options for axis labels, including positioning, placement, label format, and rotation. It also has options to avoid labels overlapping.
