The WPF Template Studio is a tool Syncfusion provides specifically for building apps using its WPF components. This tool streamlines the development process by including essential Syncfusion components, managing necessary NuGet references, providing predefined namespaces, and generating component-rendering code. It acts as a template wizard, making it easier for developers to create WPF apps using Syncfusion components.
Let’s see how to install Syncfusion WPF extensions and effectively utilize their functionalities and capabilities using the new Syncfusion WPF Template Studio for Visual Studio.
To utilize the WPF Template Studio, install the Syncfusion WPF extensions. This can be done either in Visual Studio or through the Visual Studio Marketplace.
Follow these steps to directly install the WPF extensions in Visual Studio:
- Open Visual Studio.
- Navigate to Extensions -> Manage Extensions -> Online and search for Syncfusion WPF option.
- Locate the WPF Extensions –> Syncfusion item.
- Click the Download or Install option next to the extension.
Note: Close all Visual Studio instances before clicking Modify in the VSIX installer to install the extension. For more details, refer to the Syncfusion VS Extensions Now on the Visual Studio Marketplace blog.
There are two options for creating WPF projects using the installed extension. Let’s check them out.
Option 1: Create WPF projects using the Syncfusion menu in Visual Studio

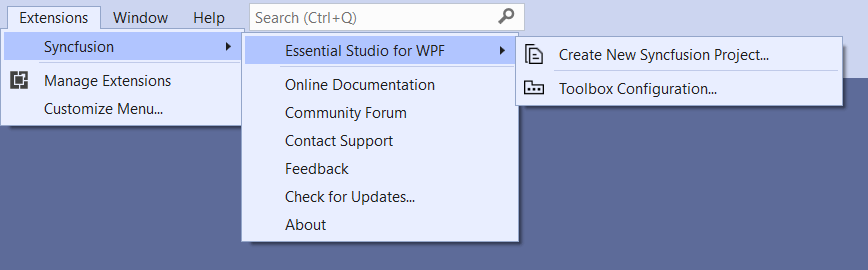

Click Extensions –> Syncfusion and choose Essential Studio for WPF -> Create New Syncfusion Project in Visual Studio.
Refer to the following image.
Note: In Visual Studio 2017, the Syncfusion menu is located in the Visual Studio menu.
Option 2: Create WPF projects using the installed extension
To create a Syncfusion WPF project using the installed extension, follow these steps:
- Open Visual Studio and select File -> New -> Project. This will launch the Create a new project dialog.

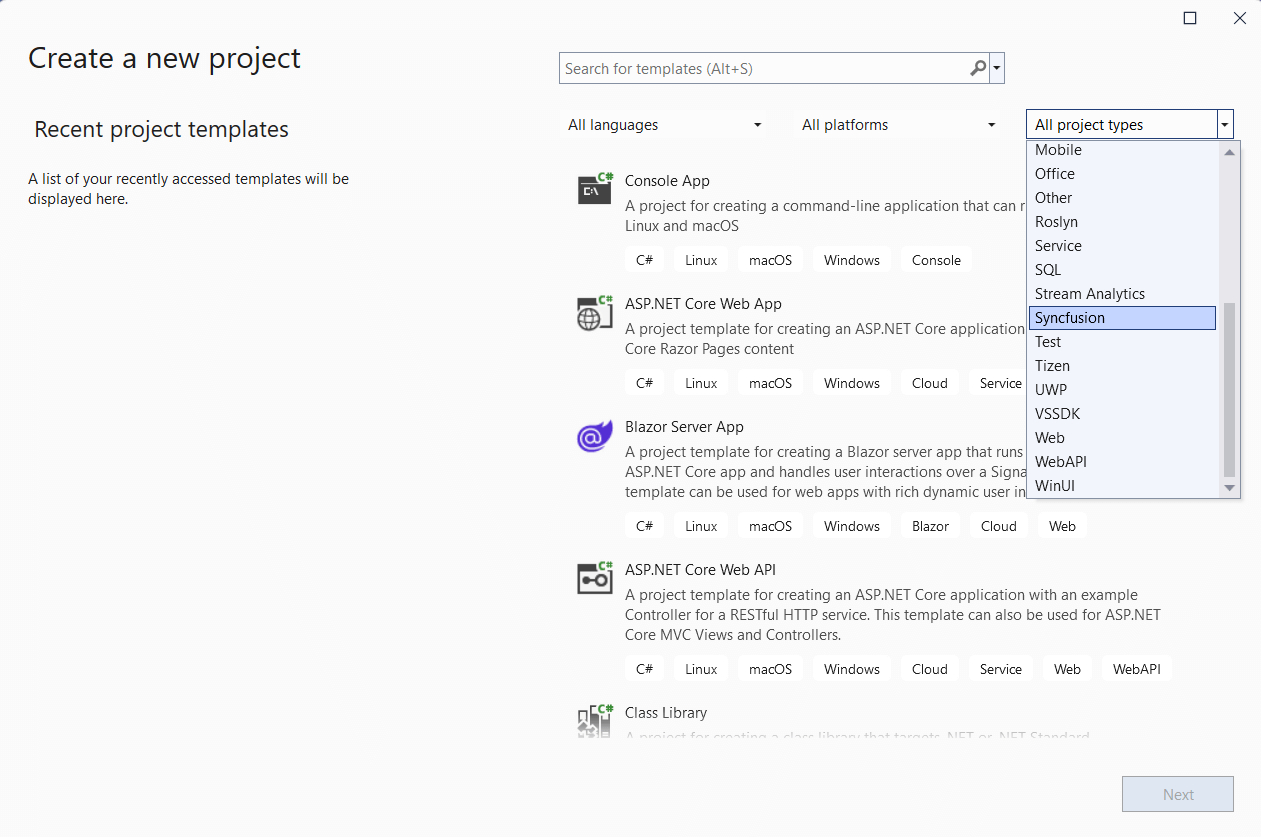

- To find the templates Syncfusion offers for WPF, filter the project type by selecting Syncfusion in the project type dropdown.

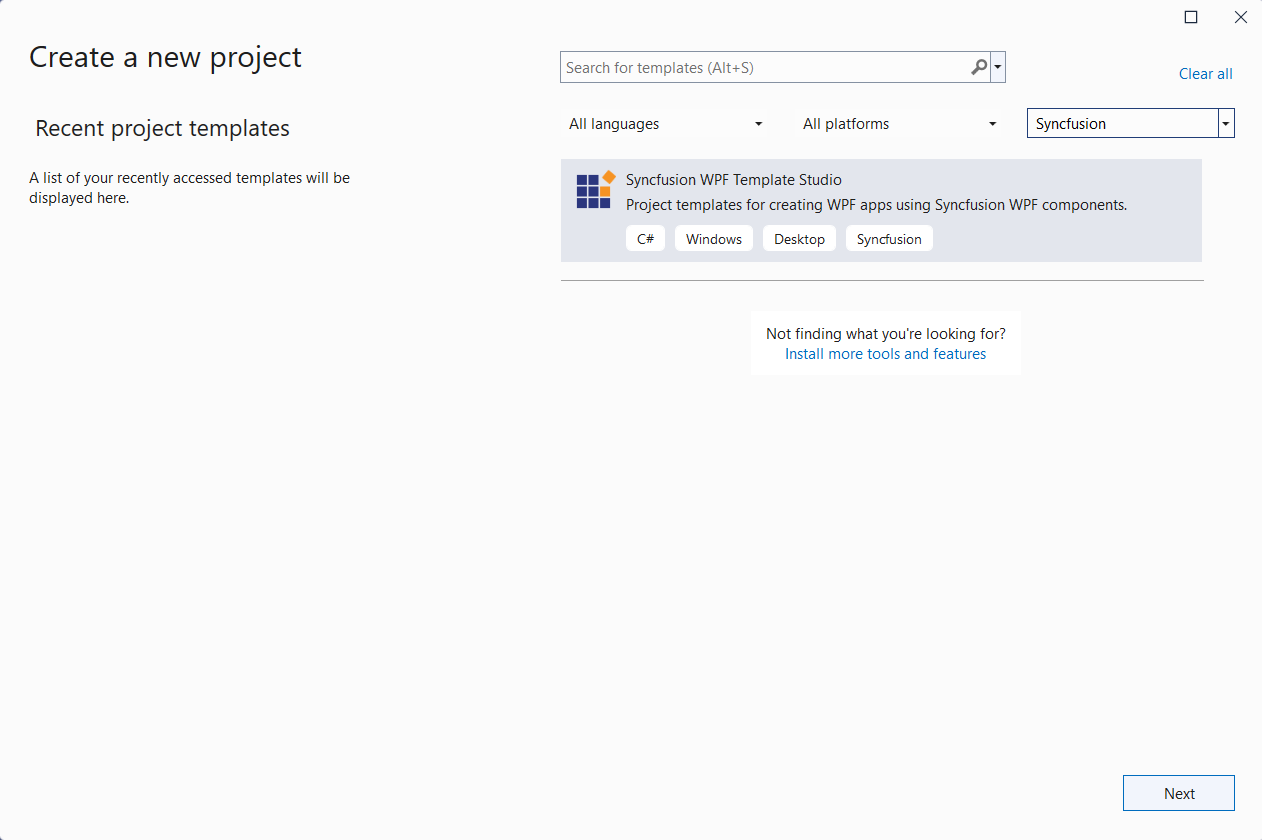

- Select Syncfusion WPF Template Studio and click Next.

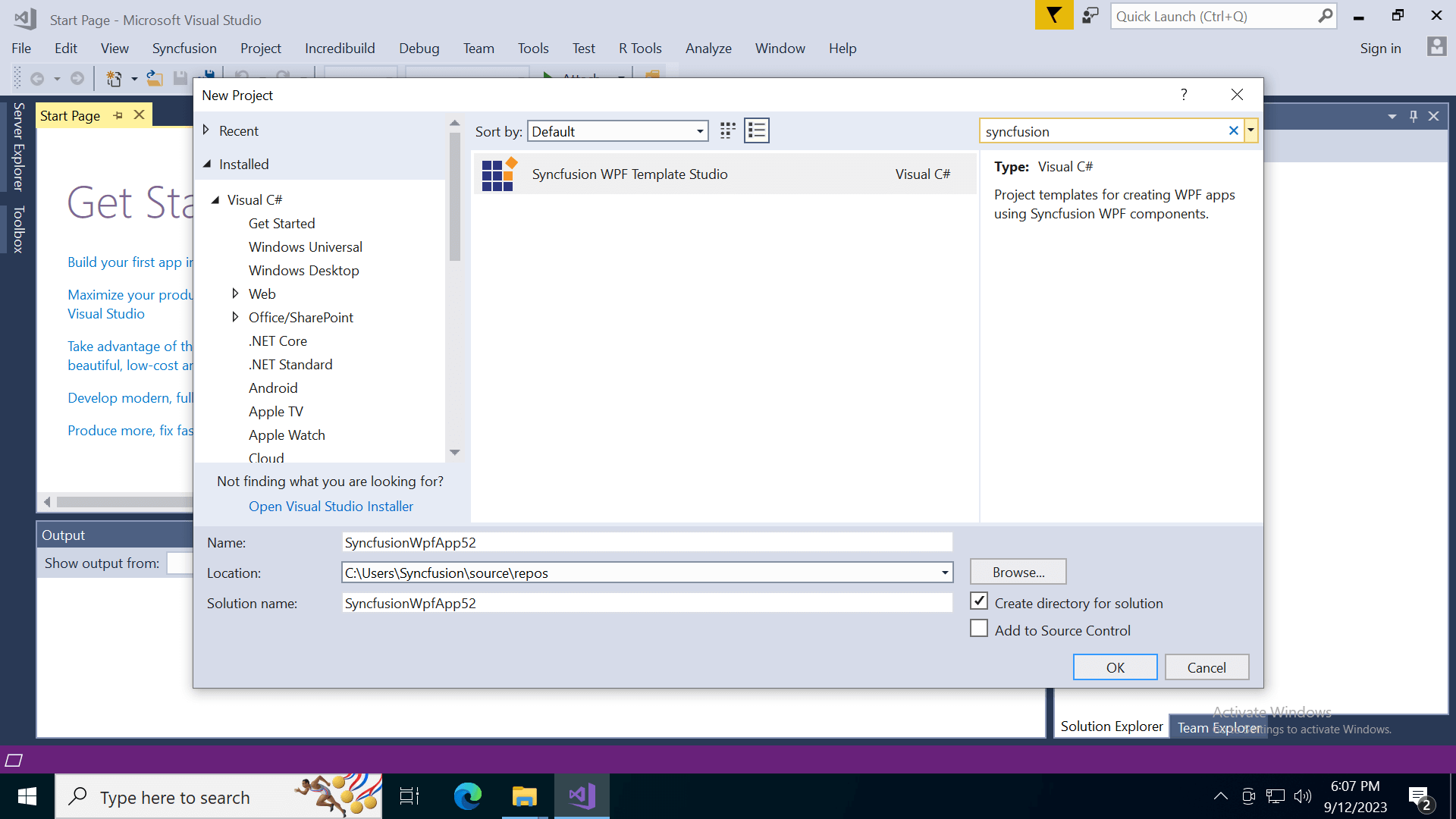

If you’re using Visual Studio 2017, select File -> New -> Project and then navigate to Syncfusion -> Windows -> Syncfusion WPF Template Studio.
- Name the project, specify the project location, and then click OK. This will open the project configuration wizard.

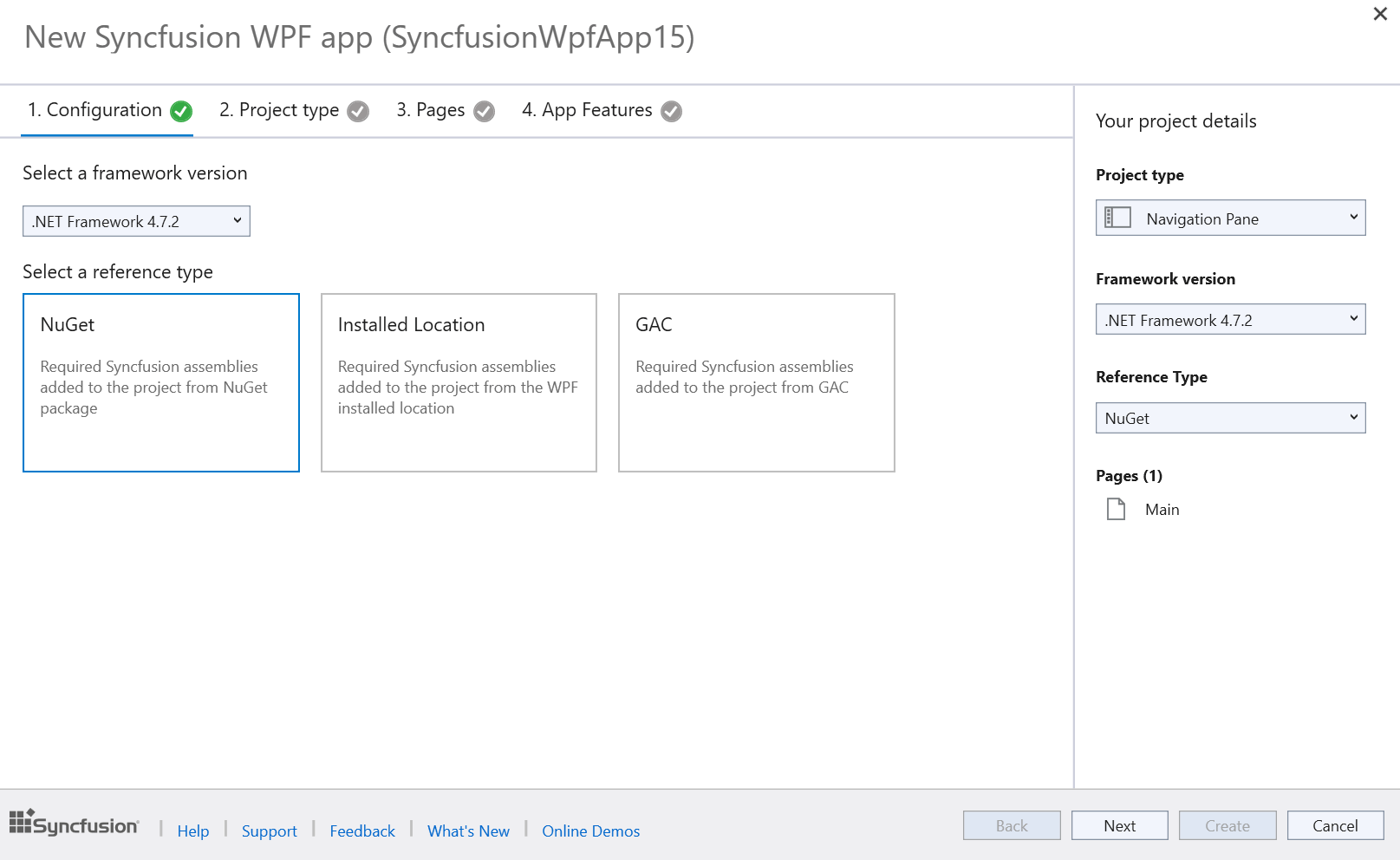

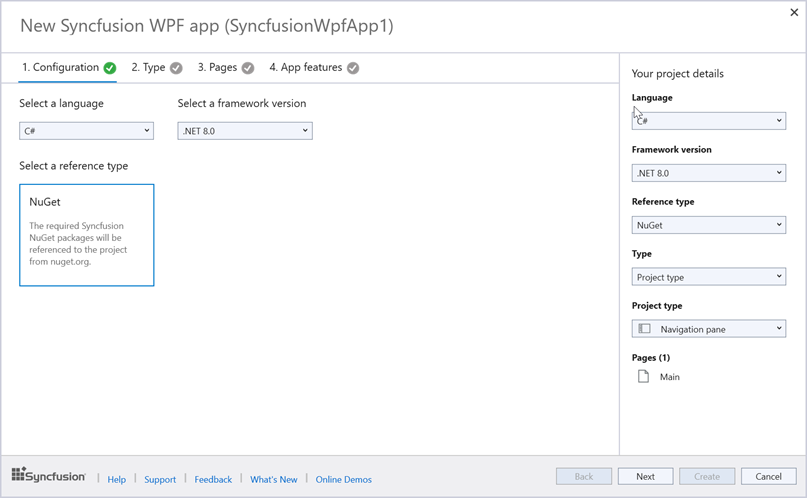

- In the Configuration tab, select a framework version (.NET 7.0, .NET 6.0, or .NET Framework) and select a reference type, such as NuGet, GAC Location, or Installed Location, for where the assembly is added to the project. Then, click Next.
Note: The installed location and GAC options will be available only after the Syncfusion Essential WPF setup has been installed. You can use the NuGet option instead of installing the Syncfusion Essential WPF setup. Also, the GAC option will not be available if you choose .NET 6.0 or .NET 7.0 as the framework version in Visual Studio.

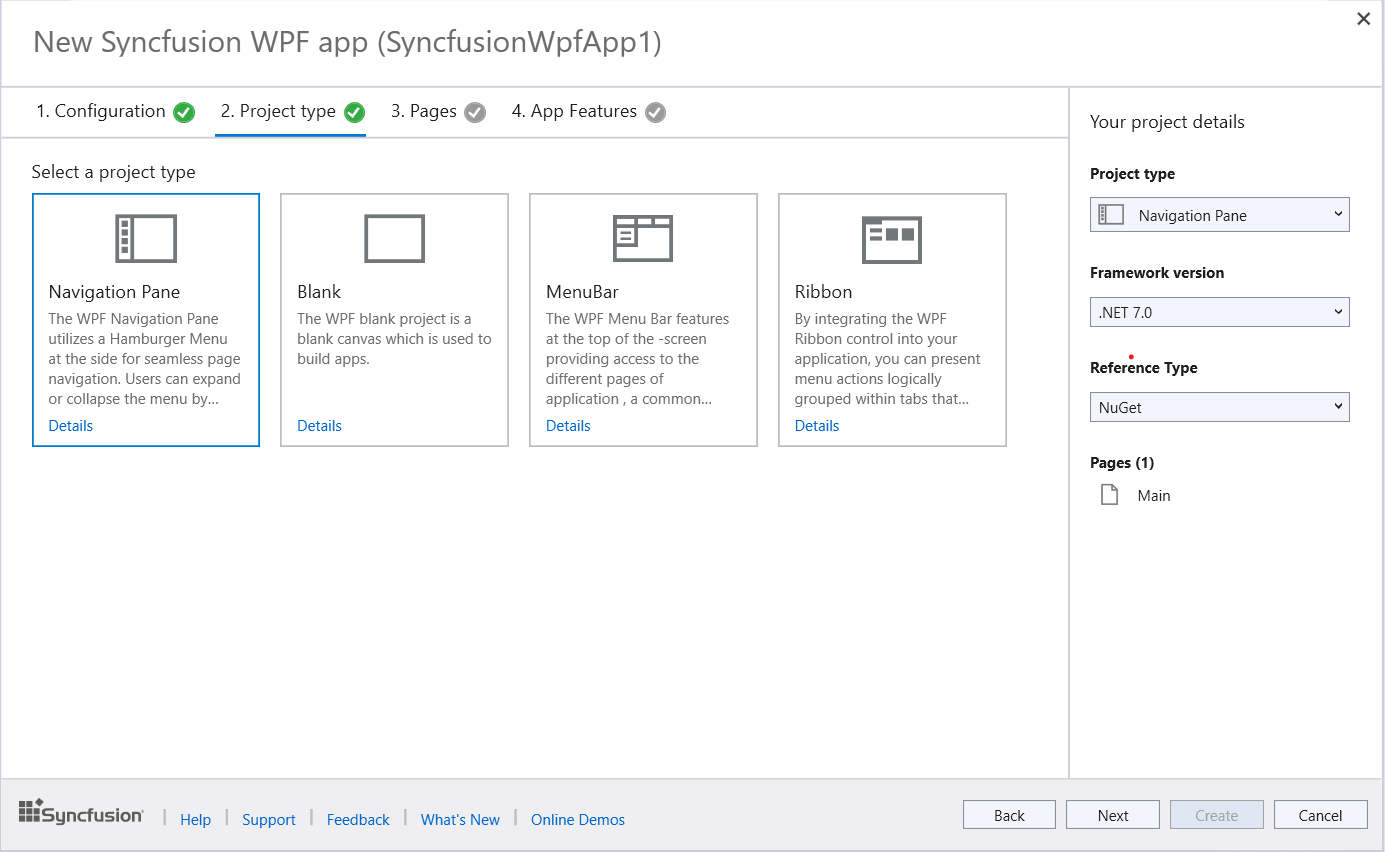

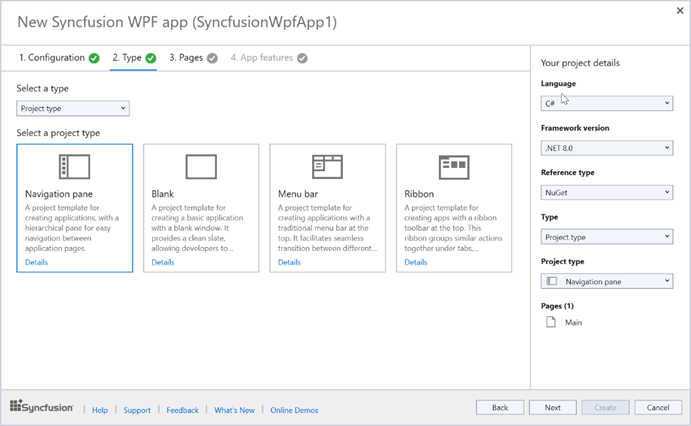

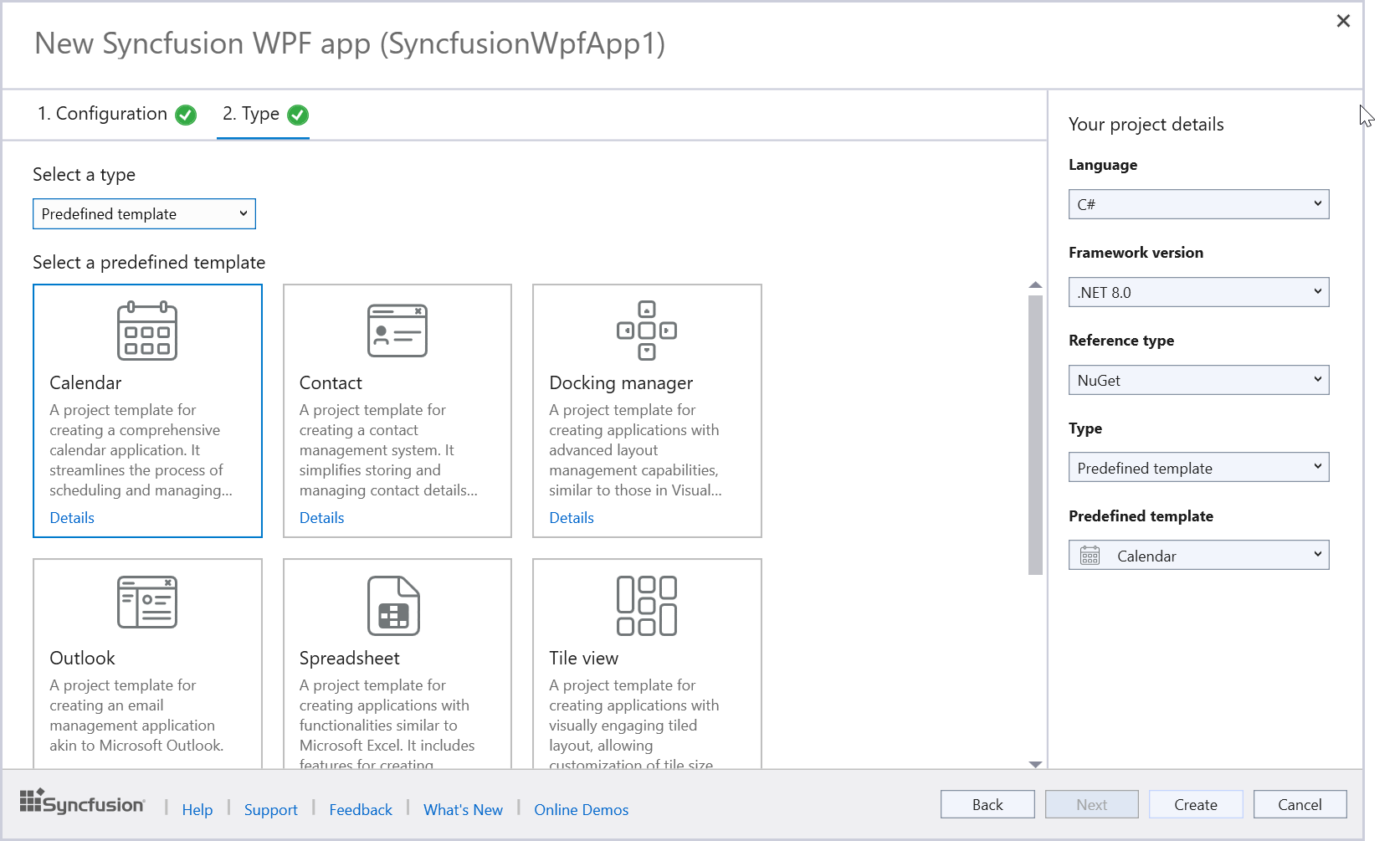

- Select a project type from the Project Type tab and click Next.

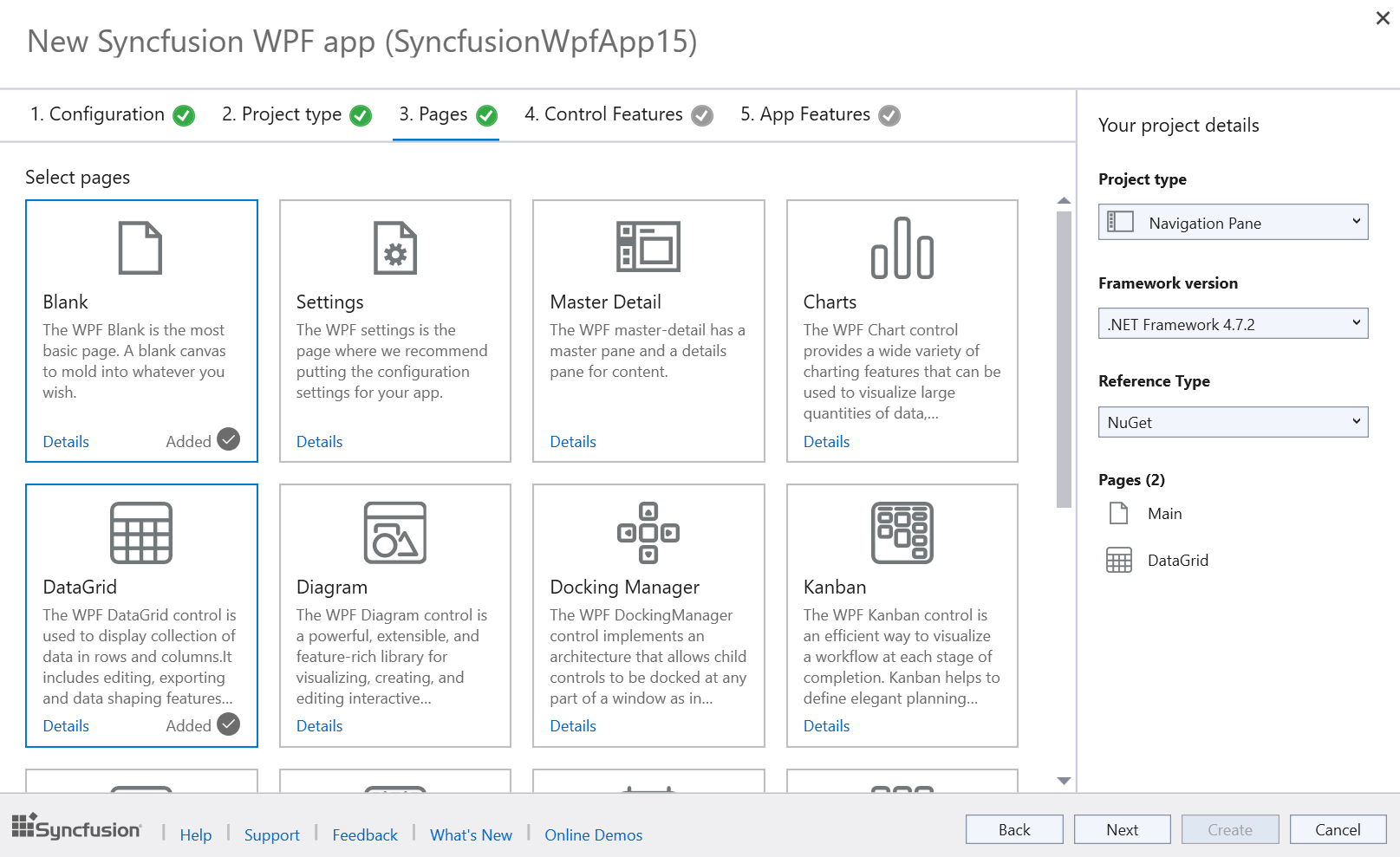

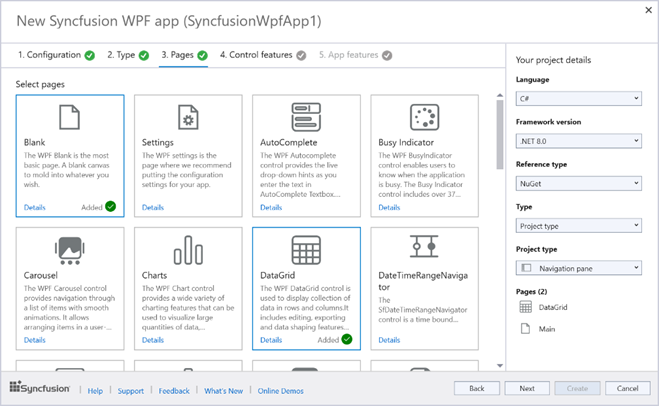

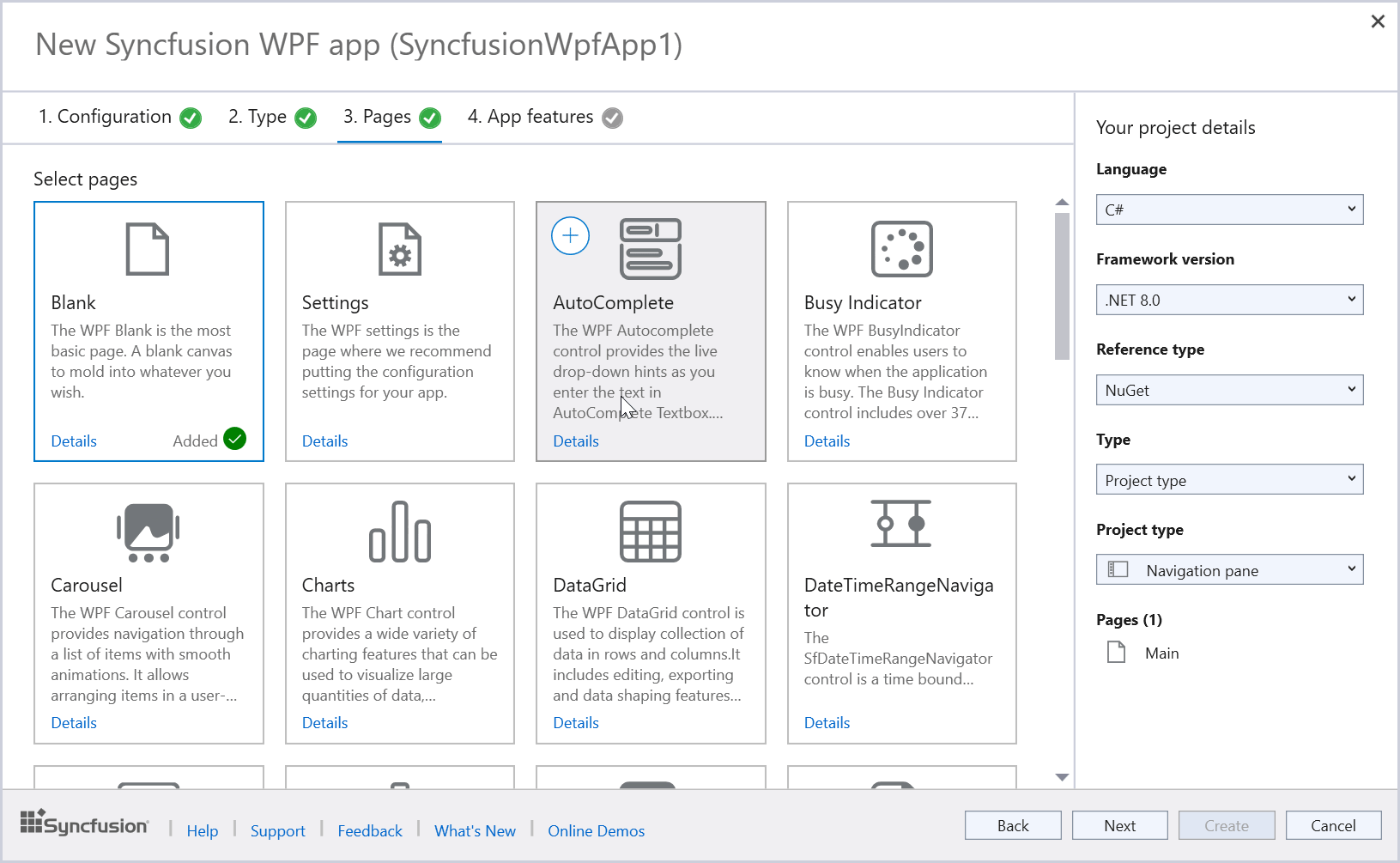

- In the Pages tab, select the Syncfusion WPF controls you want to include in your app by clicking on them.

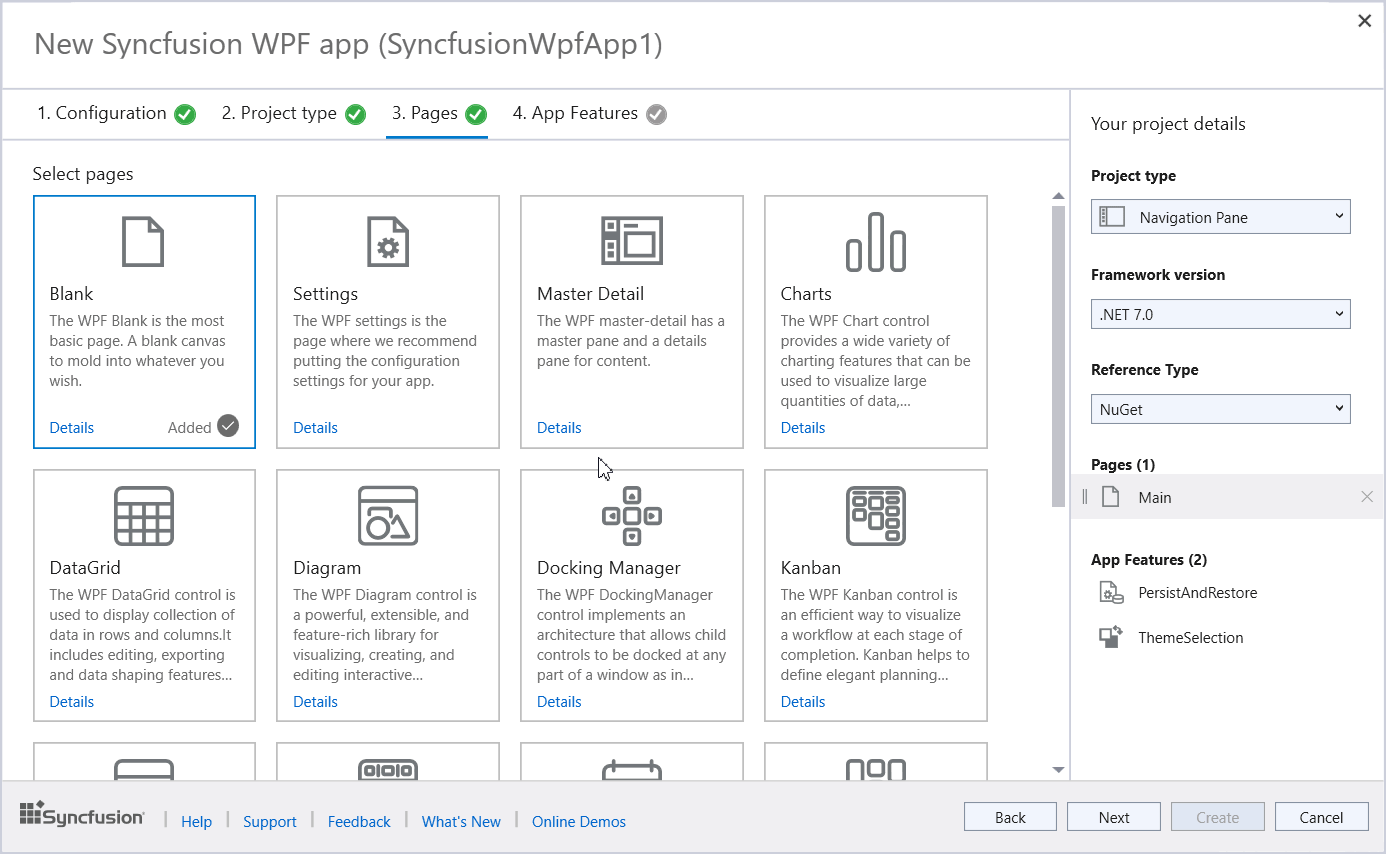

- Click Next or the Control Features tab to see the features of the selected controls. Then, choose the control features you need.

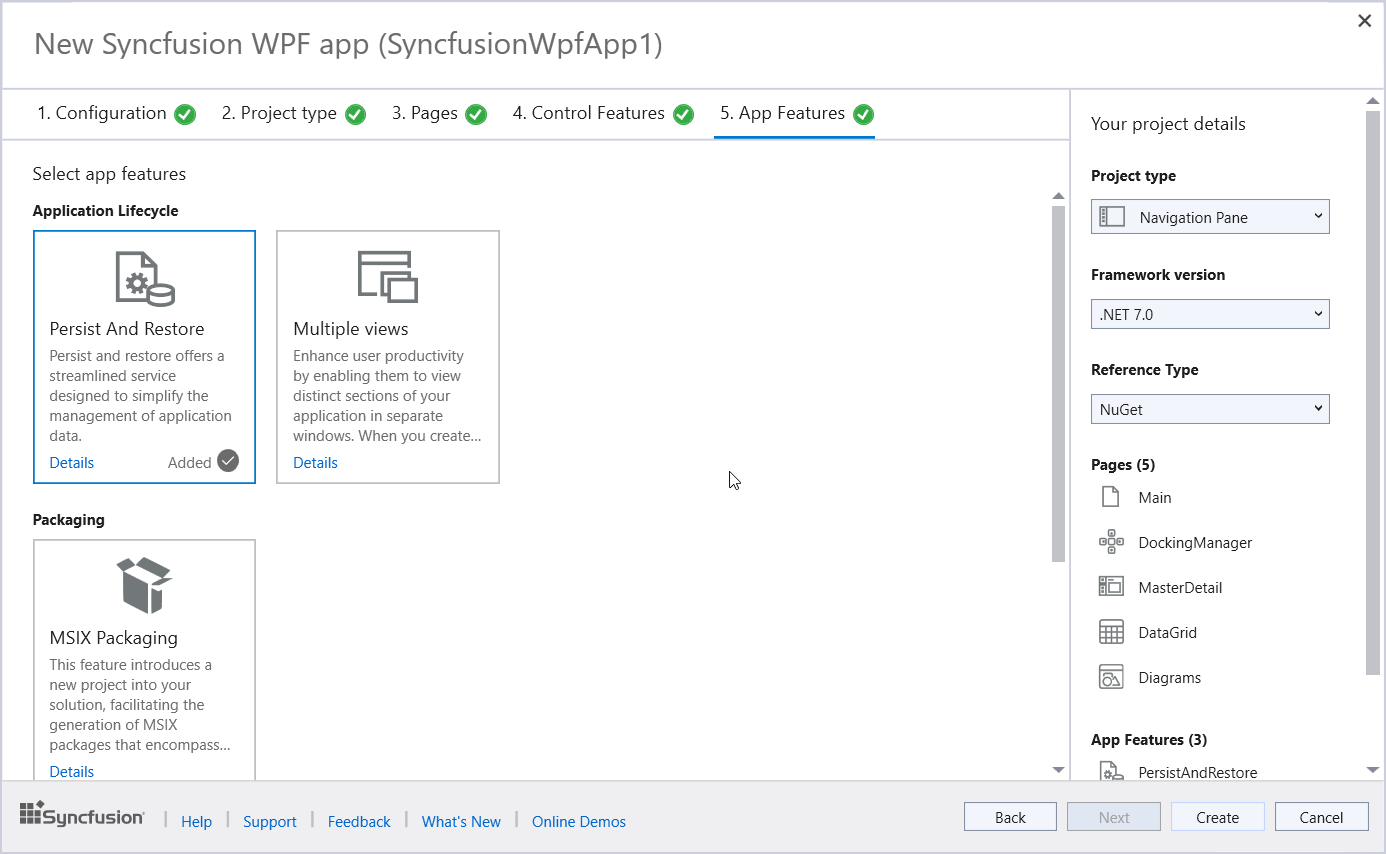

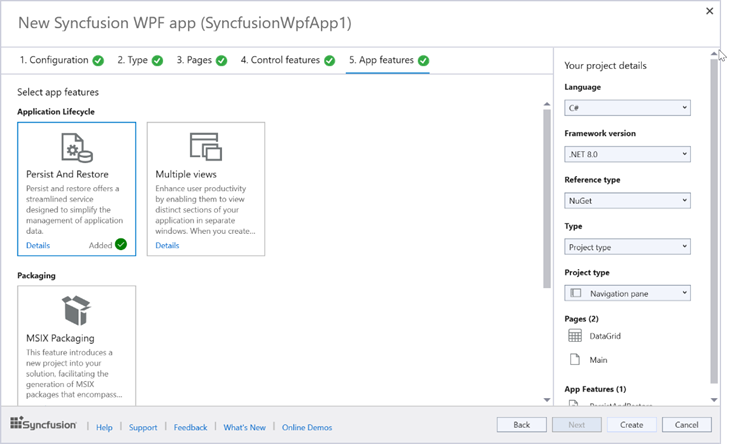

- Select the required app features from the App Features tab.

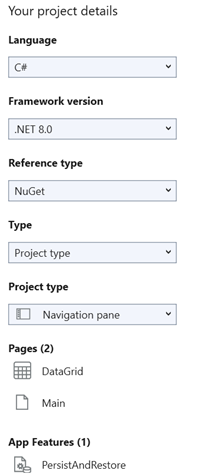

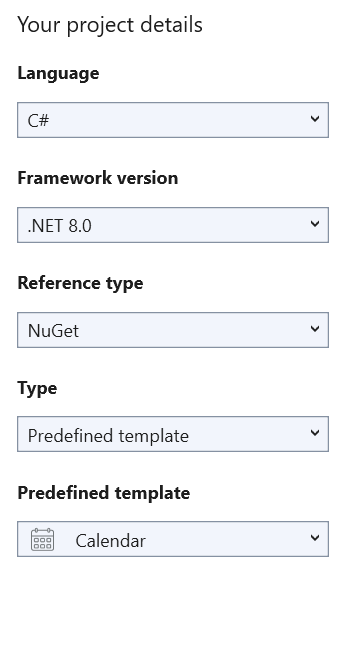

In the project details pane, you can change the project type, framework version, reference type, remove selected controls, and remove selected app features.

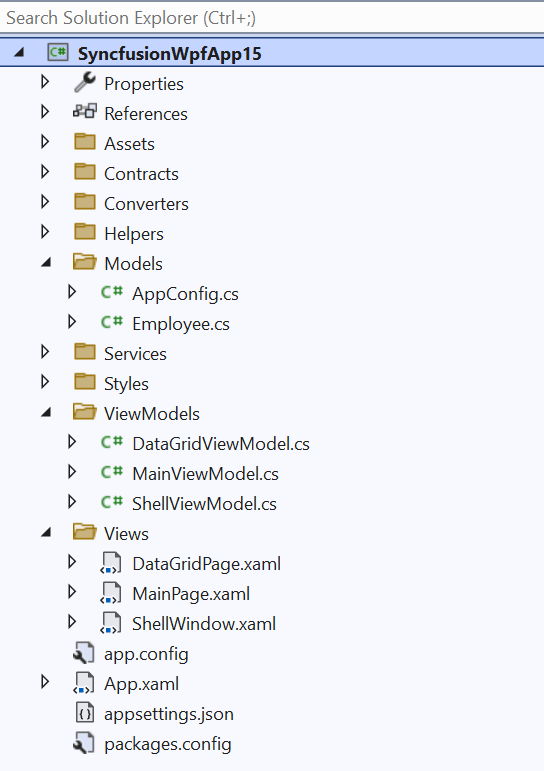

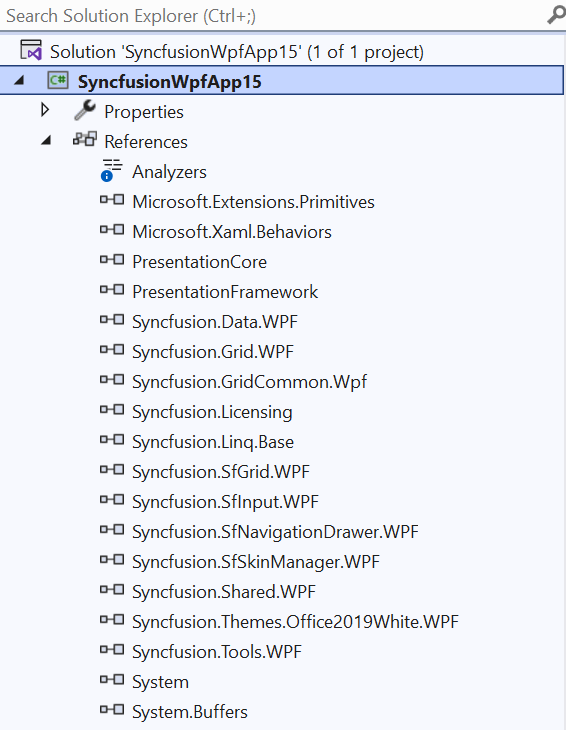

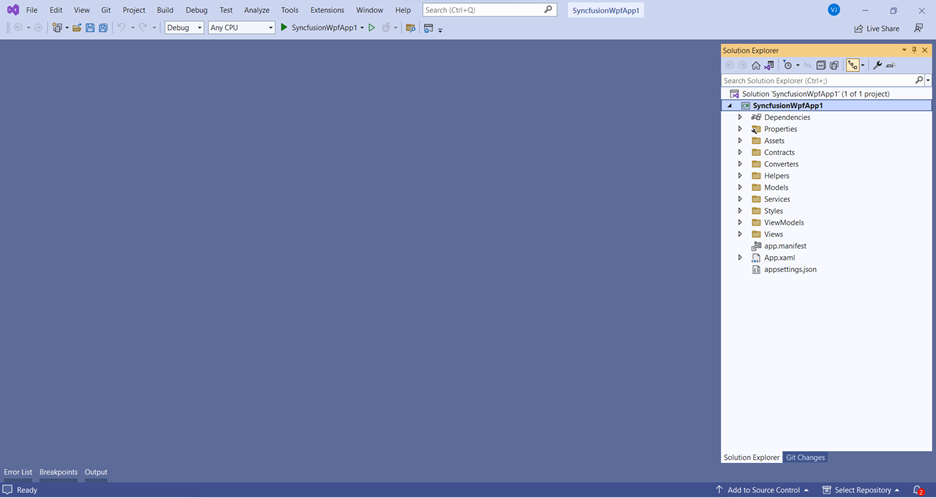

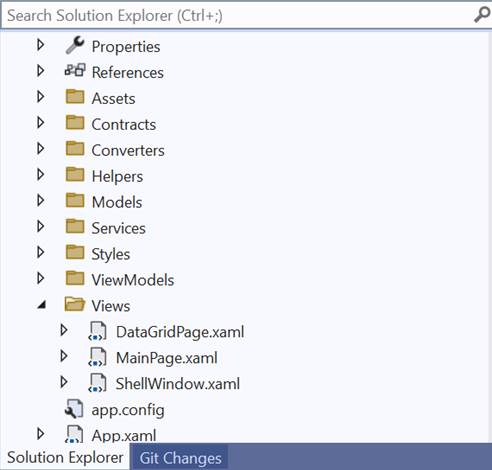

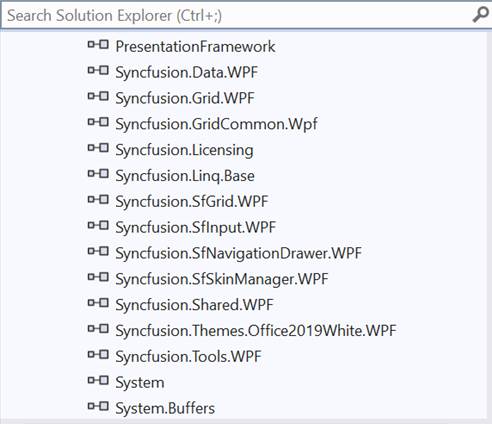

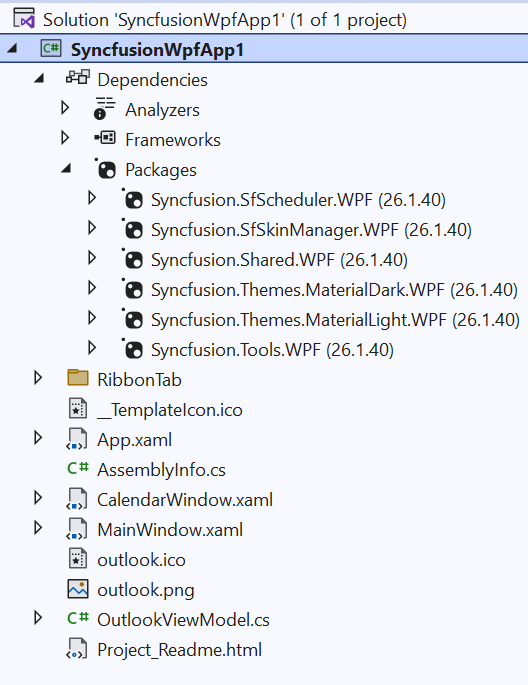

- After configuring all the previous options in the project configuration wizard, click Create. The Syncfusion WPF project will be created with the necessary XAML files and required Syncfusion WPF assemblies or NuGet packages.
Refer to the following images.
Thanks for reading! In this blog, we’ve explored the new Syncfusion WPF Template Studio for Visual Studio, available in the 2023 Volume 3 release. It provides a user-friendly project wizard that simplifies the integration of Syncfusion components into your apps, generating code and references for your app so you don’t have to do it manually. Try out this marvelous tool and share your feedback in the comment section of this blog.
Current customers can download the new version of Essential Studio from the License and Downloads page. If you are not yet a Syncfusion customer, you can try our 30-day free trial to check out our incredible features.
