Svg shape from Symbol Palette cannot add to SfDiagramComponent

[[e-mail]]

Hi,

I can create svg shape to Symbol Palette,but when I dragging to the SfDiagramComponent,the svg image is hiden.I have try the path shape is OK.And It's OK too when I create svg node to the SfDiagramComponent directly.

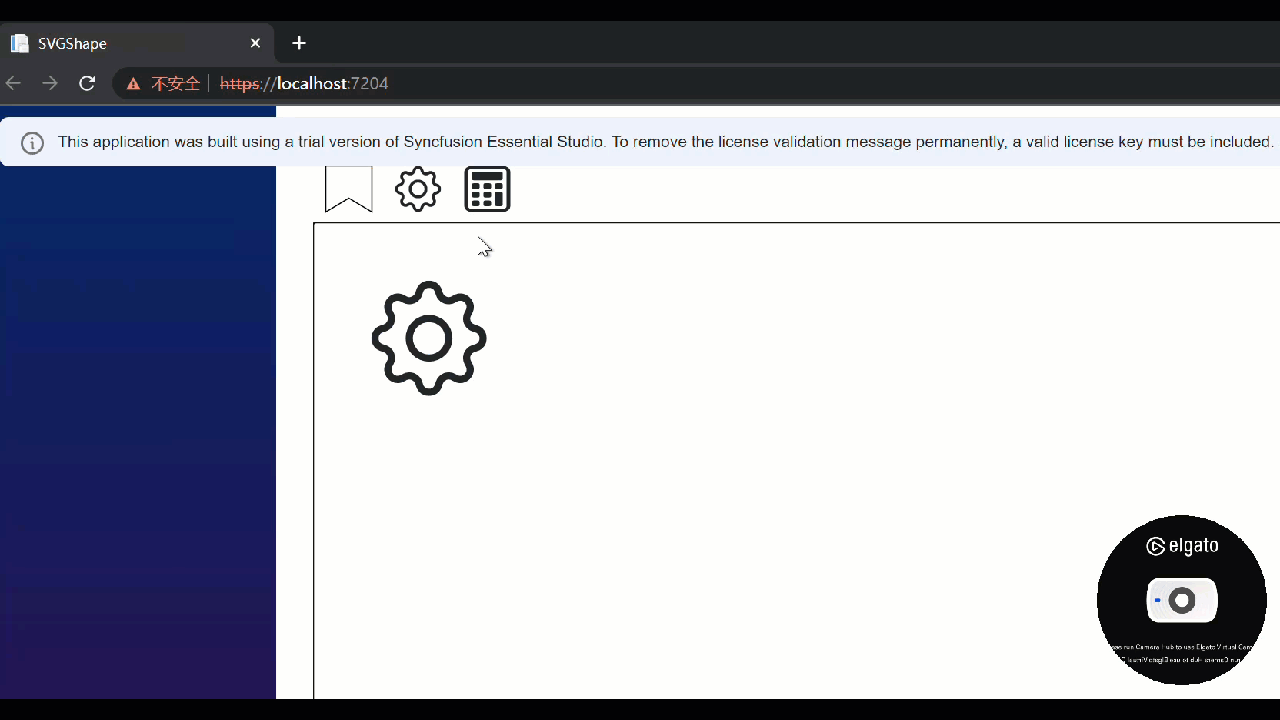

The following link is sample demo gif,the first icon is path shape,the second and the third icon is svg shape.

https://i.postimg.cc/xCcXy36j/2023-03-12-22-34-14.gif

The sample project in attachment.

Attachment: SVGShape_1216c3c6.zip

[Balavignesh RaviChandran]

The node template in the SfSymbolPalette is only for the symbols rendered in the palette. For the dropped nodes, the node template must be set in the SfDiagramComponent as well. We can match the template with the dropped node using the Node ID, just like the node template in the SfSymbolPalette. We have made the necessary corrections to the provided sample and attached it. Please refer to the sample.

Regards,
Balavignesh

Attachment: SVGShape_1216c3c6_86a5599c.zip

[[e-mail]]

It's worked,thanks.

[Preethi Rajakandham]

Hi [e-mail],

We are glad that the provided response meets your requirement. Please let us know if you need further assistance. As always, we are happy to help you out.

Regards,

Preethi R
