How to Build a CRUD Operations Using ASP.NET Core 5.0 preview2 and Entity Fram

How to Build CRUD Operations Using ASP.NET Core 5.0 Preview 2 and Entity Framework Core 5.0 Preview 2 (.NET 5.0 Preview 2)

In this blog, I am going to walk through developing a web application using ASP.NET Core 5.0, connecting it to a database using Entity Framework Core 5.0, and performing CRUD operations. For the purpose of demonstration, I am going to develop a sample application for inventory management with basic operations.

.NET 5.0 is the next version of .NET Core and .NET Framework. The .NET 5.0 preview includes the following features:

  • NET Core 5.0 preview 2.0
  • Entity Framework Core 5.0 preview 2.0
  • Support for Windows ARM64
  • Regular expression performance improvements
  • Garbage Collector improvements

This blog post will discuss the following:

Note: For developing this demo application, I have used ASP.NET Core 5.0 Preview 2, Entity Framework Core 5.0 Preview 2, and Visual Studio 2019 16.6.0 Preview 2.0.

Prerequisites

Make sure that the necessary software is installed:

  • Visual Studio 2019 16.6.0 Preview 2.0
  • .NET 5.0 Preview 2.0 SDK
  • SQL Server 2017

Create ASP.NET Core web application

Follow these steps to create an ASP.NET Core application:

Step 1: Open Visual Studio.

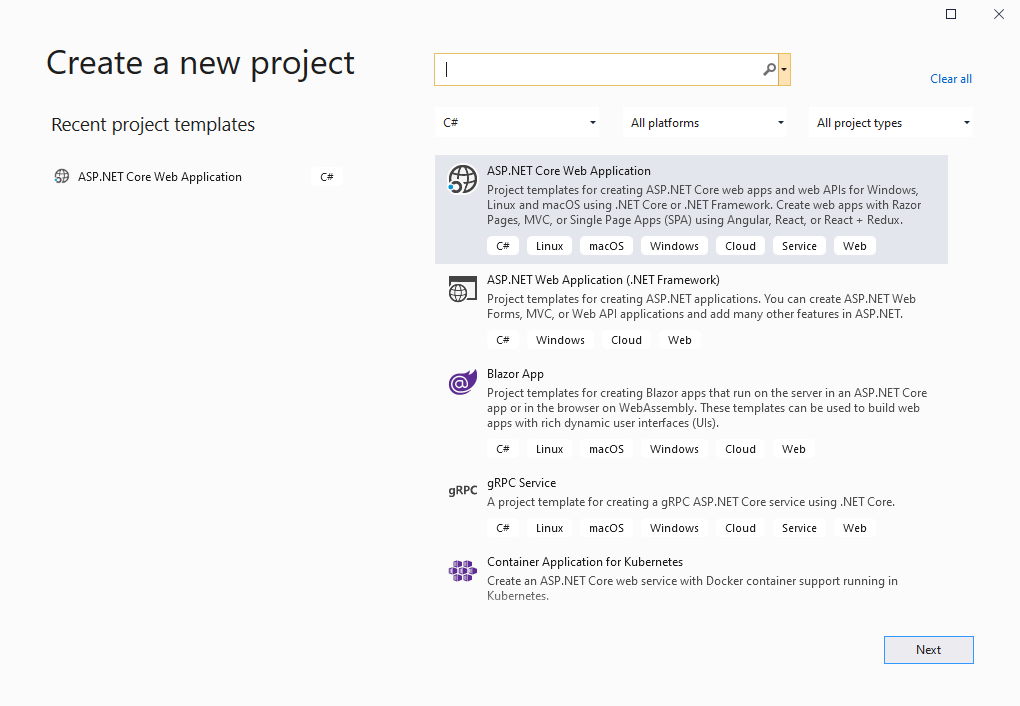

Step 2: Click File a New a Project.

Step 3: Select the ASP.NET Core Web Application template and click Next.Create a new project

Step 4: Enter the Project name and click Create. The project template dialog will be displayed.

Step 5: Select .NET Core, ASP.NET Core 5.0, and the Web Application (Model-View-Controller) template (highlighted in the following figure).Create a new ASP.NET Core web application

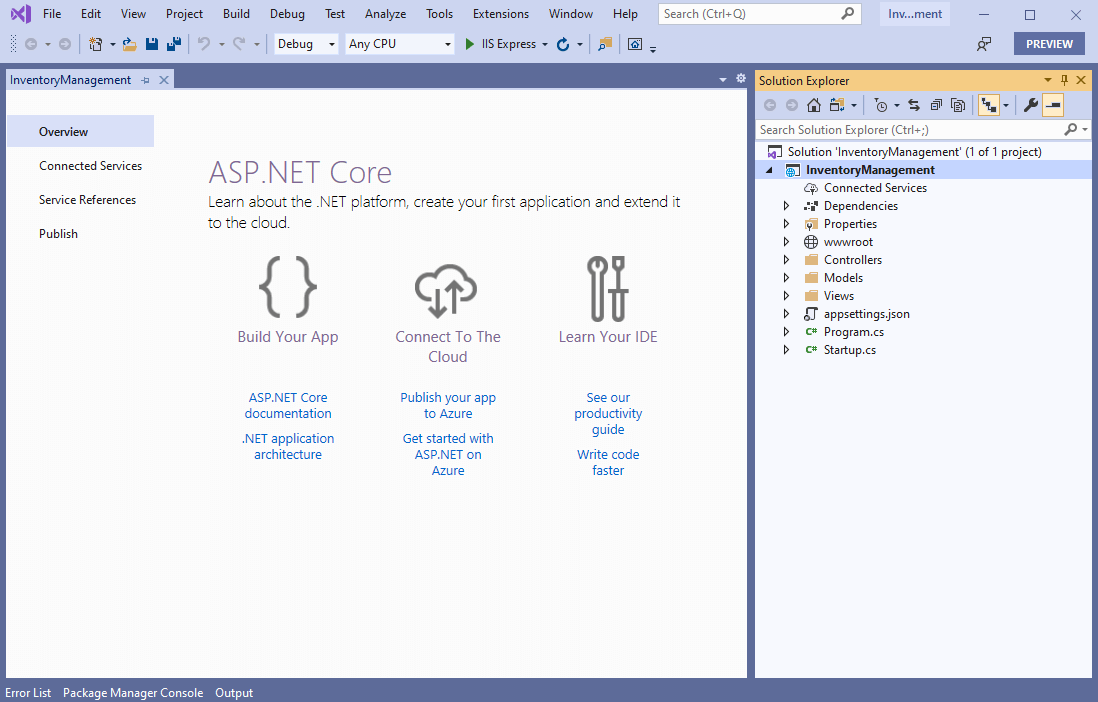

Step 6: Click Create. Then the sample ASP.NET Core web application will be created. Find the project structure in the following screenshot.ASP.NET Core

Install necessary NuGet packages

The following NuGet packages should be added to work with the SQL Server database.

Step 1: Click Tools à NuGet Package Manager à Package Manager Console.

Step 2:  Run the following commands in Package Manager Console:

  • Install-Package Microsoft.EntityFrameworkCore.Tools -Version 5.0.0-preview.2.20159.4

– This package helps to create database context and the model class from the database.

  • Install-Package Microsoft.EntityFrameworkCore.SqlServer -Version 5.0.0-preview.2.20159.4

– The database provider allows Entity Framework Core to work with SQL Server.

Create database and connect it with the application

I hope you have installed SQL Server 2017 in your machine. (You can use SQL Server 2008, 2012, or 2016).

Step 1: Create a new database (Inventory).

Step 2: For this application, I am going to create a table called Products with basic attributes. Paste the following SQL query into the query window and run it to create the table.

Create Table Products(
ProductId Int Identity(1,1) Primary Key,
Name Varchar(50) Not Null,
Category Varchar(30),
Color Varchar(15),
UnitPrice Decimal Not Null,
AvailableQuantity Int Not Null,
CreatedDate DateTime Default(GetDate()) Not null)
GO

Step 3: Run the following scaffold command in the Package Manager Console to reverse engineer the database and create the database context and entity POCO classes from tables. The scaffold command will create POCO classes only for the tables that have a primary key.

Scaffold-DbContext “Server=******;Database=Inventory;Integrated Security=True” Microsoft.EntityFrameworkCore.SqlServer -OutputDir Models

The details of this command are as follows:

  • Connection: Sets connection string of the database.
  • Provider: Sets which provider is to be used to connect the database.
  • OutputDir: Sets the directory where the POCO classes are to be generated.

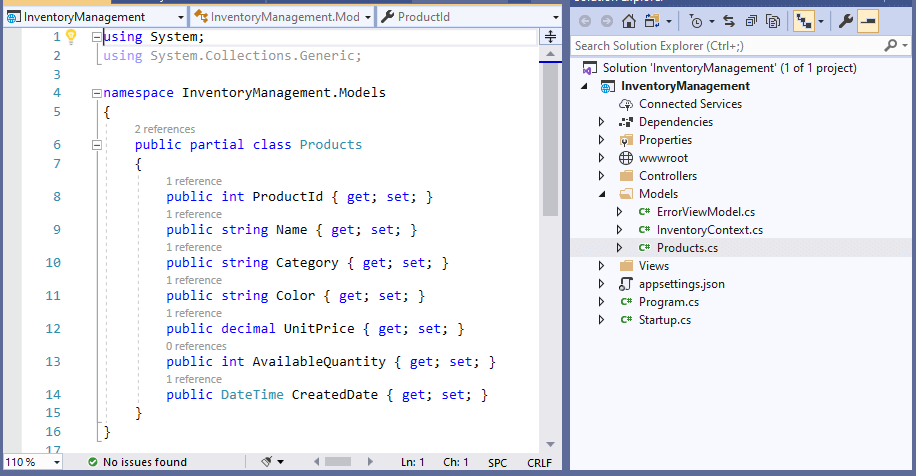

In our case, the Products class and Inventory context class will be created as shown in the following screenshot.Product Class

In the automatically generated Inventory Context class file, you can see that the database credentials are hard coded in the OnConfiguring method. It is not good practice to have SQL Server credentials in C# class. So, remove the following OnConfiguring method and parameterless constructor from the context file (highlighted).OnConfiguring method

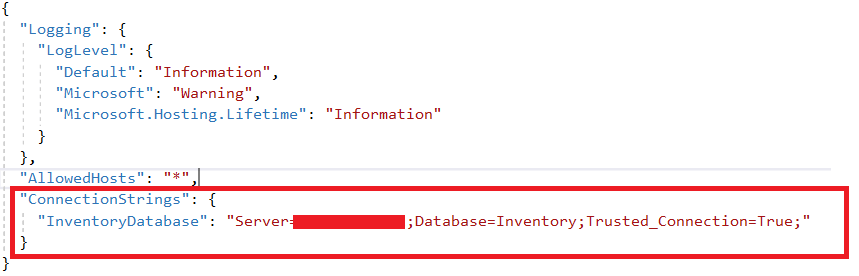

Then add the connection string into the appsetting.json file, as shown in the following screenshot.appsetting

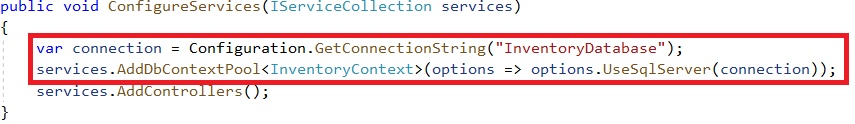

Then register the database context service (InventoryContext) during the application startup. In the following code, the connection string is read from the appsetting file and passed to the context service.

var connectionString = Configuration.GetConnectionString("InventoryDatabase");
services.AddDbContextPool<InventoryContext>(option => option.UseSqlServer(connectionString));

Add the following code in the ConfigureServices method of the Startup file, as shown in the following screenshot.ConfigureServices

Whenever a new context is requested, it will be returned from the context pool if it is available, otherwise a new context will be created and returned.

Add data validation

Now we will see how to validate data when we add and edit the product details. The validation can be applied using Data Annotation and ModelMetadataType.

Step 1:  In the model folder, add a class named ProductsMetaData and replace that file with the following code.

using Microsoft.AspNetCore.Mvc;
using System.ComponentModel.DataAnnotations;

namespace InventoryManagement.Models
{
    [ModelMetadataType(typeof(ProductsMetaData))]
    public partial class Products
    {
    }

    public class ProductsMetaData
    {
        [Required]
        [MaxLength(100)]
        public string Name { get; set; }

        [Required]
        [Display(Name = "Unit price")]
        public decimal UnitPrice { get; set; }

        [Required]
        [Display(Name = "Available quantity")]
        public int AvailableQuantity { get; set; }
    }
}

Step 2: In this code, the Products class is declared as partial and the ModelMetadataType attribute is added with ProductsMetaData. In the ProductsMetaData class, we added necessary validation for the product’s properties. In this sample, I have applied required validations and set display names for some properties.

You can find more about data validation in Microsoft’s tutorials.

Create products controller

Now let’s see how to create products controller and modify its default root.

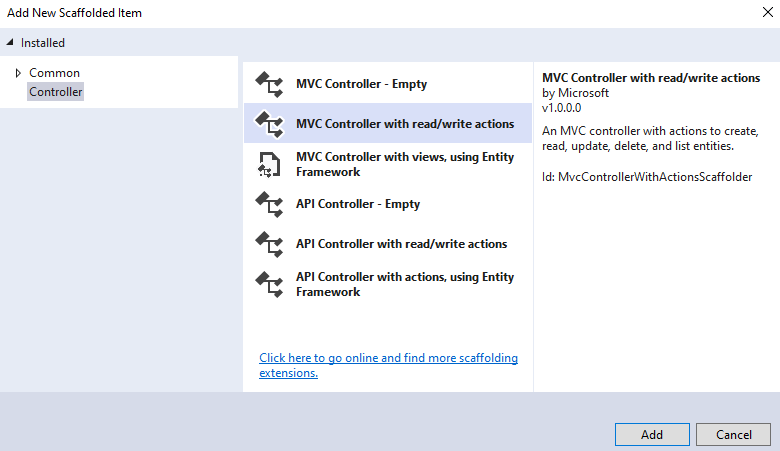

Step 1: Right-click on the controller folder, select add new item, and then select controller. Then the following dialog will be displayed.Add new scaffolded item

Select the MVC Controller with read/write actions option and click Add.

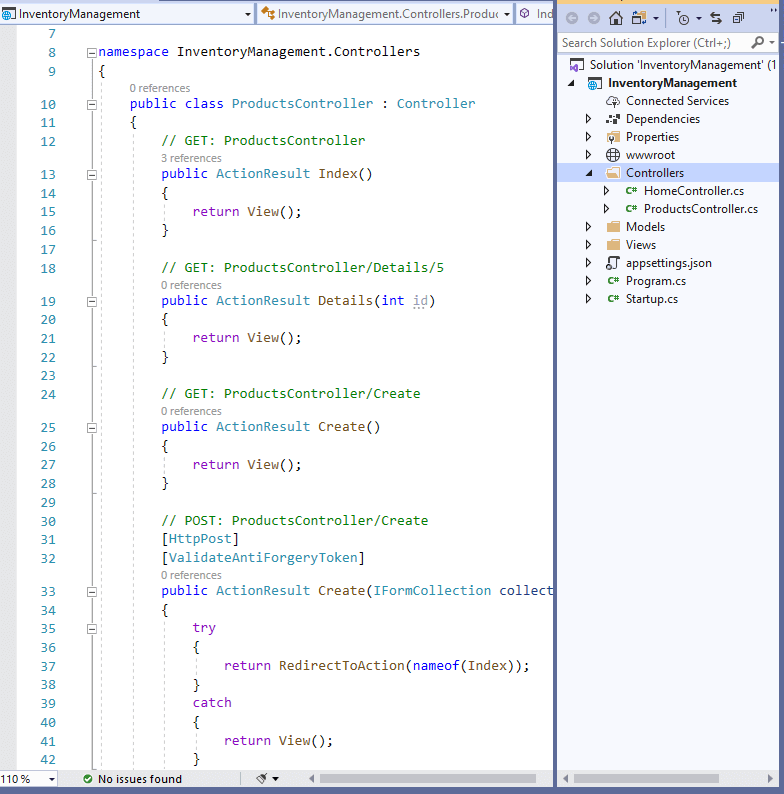

Step 2: In the dialog, provide ProductsController.cs as the name and click Add. Now the following basic code will be generated.ProductsController

Step 3: Now, change the default application route to load the Products Controller instead of the home controller.

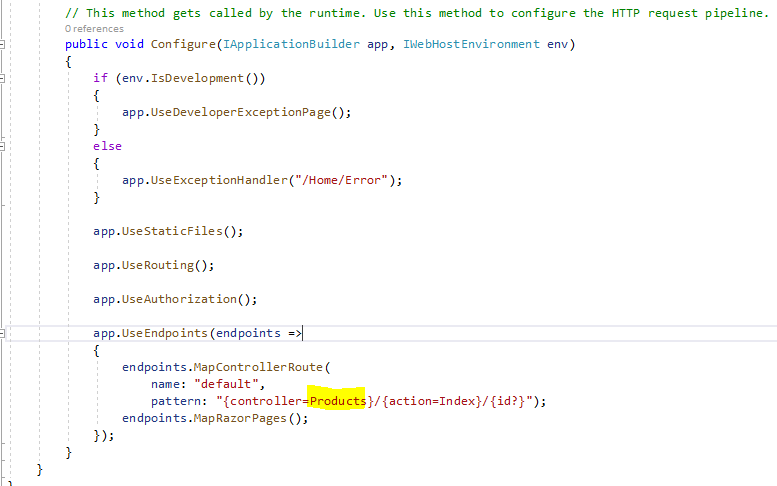

Step 4: Open the Startup.cs file and under the Configure method, change the default controller to Products.Startup

Perform CRUD operations

Now, we will modify the controller actions to perform CRUD operations on InventoryContext.

Add controller action

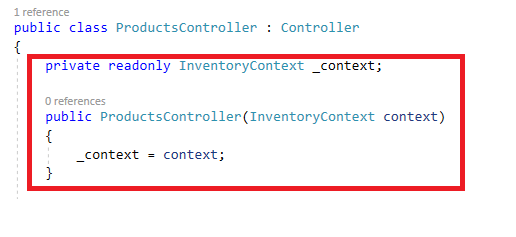

Step 1:  Inject InventoryContext with the products controller’s constructor, as shown in the following screenshot.InventoryContext

Whenever the products controller is requested, an InventoryContext is returned from the context pool.

Step 2: Replace the controller with the following code.

using System.Linq;
using System.Threading.Tasks;
using InventoryManagement.Models;
using Microsoft.AspNetCore.Mvc;
using Microsoft.EntityFrameworkCore;

namespace InventoryManagement.Controllers
{
    public class ProductsController : Controller
    {
        private readonly InventoryContext _context;

        public ProductsController(InventoryContext context)
        {
            _context = context;
        }

        // GET: Products
        public async Task<IActionResult> Index()
        {
            var products = await _context.Products.ToListAsync();

            return View(products);
        }

        // GET: Products/Details/5
        public async Task<IActionResult> Details(int? id)
        {
            if (id == null)
            {
                return NotFound();
            }

            var product = await _context.Products.FirstOrDefaultAsync(m => m.ProductId == id);

            if (product == null)
            {
                return NotFound();
            }

            return View(product);
        }

        // GET: Products/Create
        public IActionResult Create()
        {
            return View();
        }

        // POST: Products/Create
        // To protect from overposting attacks, please enable the specific properties you want to bind to. For
        // more details see http://go.microsoft.com/fwlink/?LinkId=317598.
        [HttpPost]
        [ValidateAntiForgeryToken]
        public async Task<IActionResult> Create([Bind("ProductId,Name,Category,Color,UnitPrice,AvailableQuantity")] Products products)
        {
            if (ModelState.IsValid)
            {
                _context.Add(products);
                await _context.SaveChangesAsync();

                return RedirectToAction(nameof(Index));
            }

            return View(products);
        }

        // GET: Products/Edit/5
        public async Task<IActionResult> Edit(int? id)
        {
            if (id == null)
            {
                return NotFound();
            }

            var product = await _context.Products.FindAsync(id);

            if (product == null)
            {
                return NotFound();
            }

            return View(product);
        }

        // POST: Products/Edit/5
        // To protect from overposting attacks, please enable the specific properties you want to bind to. For
        // more details see http://go.microsoft.com/fwlink/?LinkId=317598.
        [HttpPost]
        [ValidateAntiForgeryToken]
        public async Task<IActionResult> Edit(int id, [Bind("ProductId,Name,Category,Color,UnitPrice,AvailableQuantity")] Products updatedProductDetails)
        {
            if (id != updatedProductDetails.ProductId)
            {
                return NotFound();
            }

            var product = await _context.Products.FindAsync(id);

            if (product == null)
            {
                return NotFound();
            }

            if (ModelState.IsValid)
            {
                try
                {
                    product.Name = updatedProductDetails.Name;
                    product.Category = updatedProductDetails.Category;
                    product.Color = updatedProductDetails.Color;
                    product.UnitPrice = updatedProductDetails.UnitPrice;
                    product.AvailableQuantity = updatedProductDetails.AvailableQuantity;

                    _context.Update(product);
                    await _context.SaveChangesAsync();
                }
                catch (DbUpdateConcurrencyException)
                {
                    if (!ProductsExists(updatedProductDetails.ProductId))
                    {
                        return NotFound();
                    }
                    else
                    {
                        throw;
                    }
                }

                return RedirectToAction(nameof(Index));
            }

            return View(updatedProductDetails);
        }

        // GET: Products/Delete/5
        public async Task<IActionResult> Delete(int? id)
        {
            if (id == null)
            {
                return NotFound();
            }

            var products = await _context.Products.FirstOrDefaultAsync(m => m.ProductId == id);

            if (products == null)
            {
                return NotFound();
            }

            return View(products);
        }

        // POST: Products/Delete/5
        [HttpPost, ActionName("Delete")]
        [ValidateAntiForgeryToken]
        public async Task<IActionResult> DeleteConfirmed(int id)
        {
            var product = await _context.Products.FindAsync(id);

            _context.Products.Remove(product);
            await _context.SaveChangesAsync();

            return RedirectToAction(nameof(Index));
        }

        private bool ProductsExists(long id)
        {
            return _context.Products.Any(e => e.ProductId == id);
        }
    }
}

The actions and their purposes are explained:

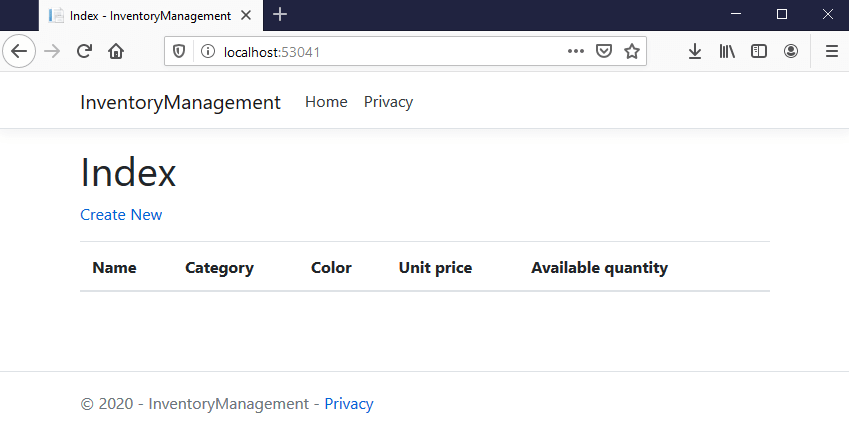

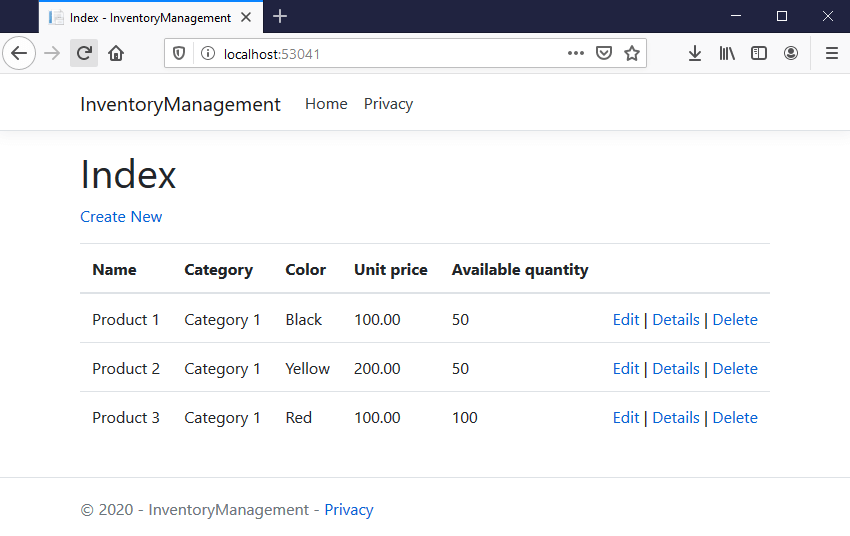

Index: Returns all the products from inventory and returns to view.

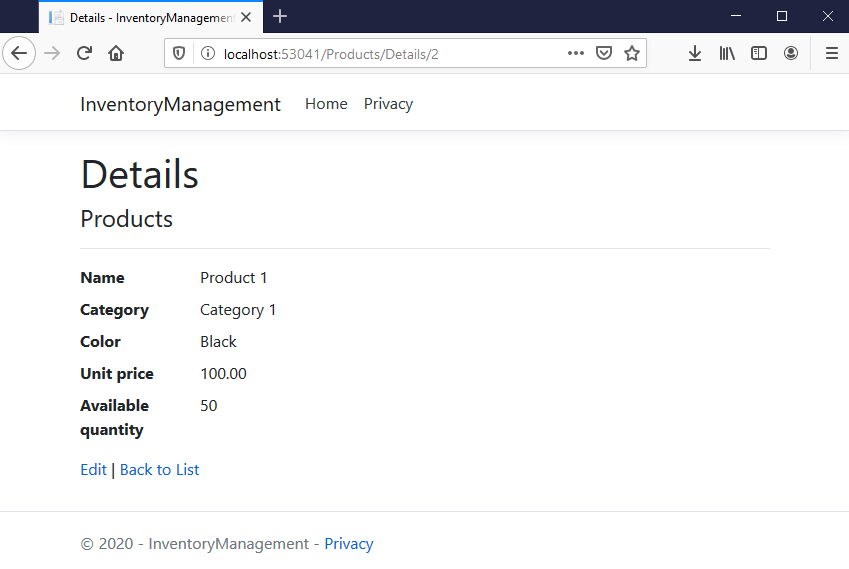

Details: Returns the product details from the products table by product ID. If the product is not found, then it will return a Not Found result.

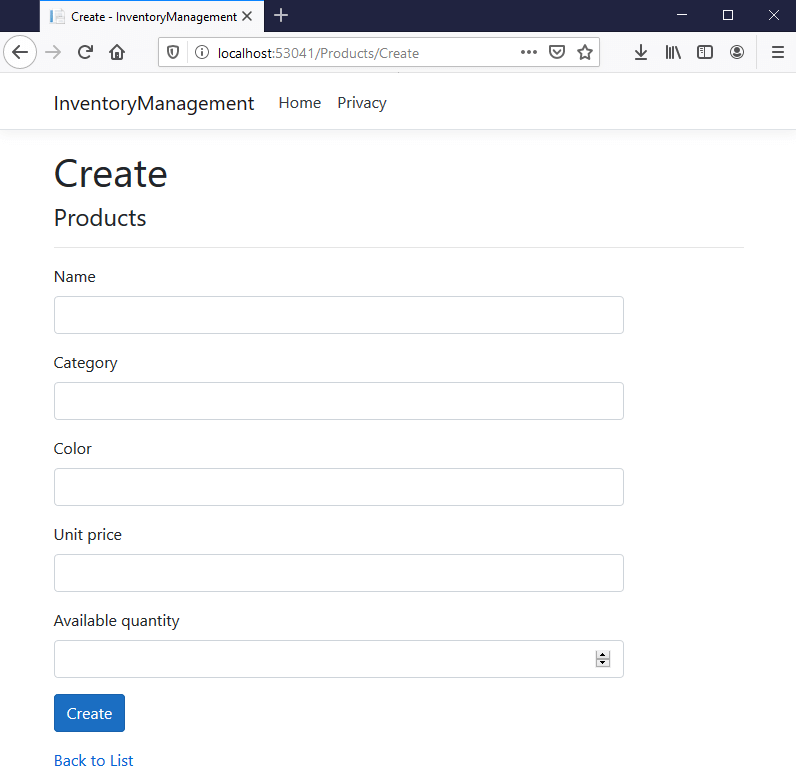

Create: Accepts products details as input and creates a new product in the inventory.

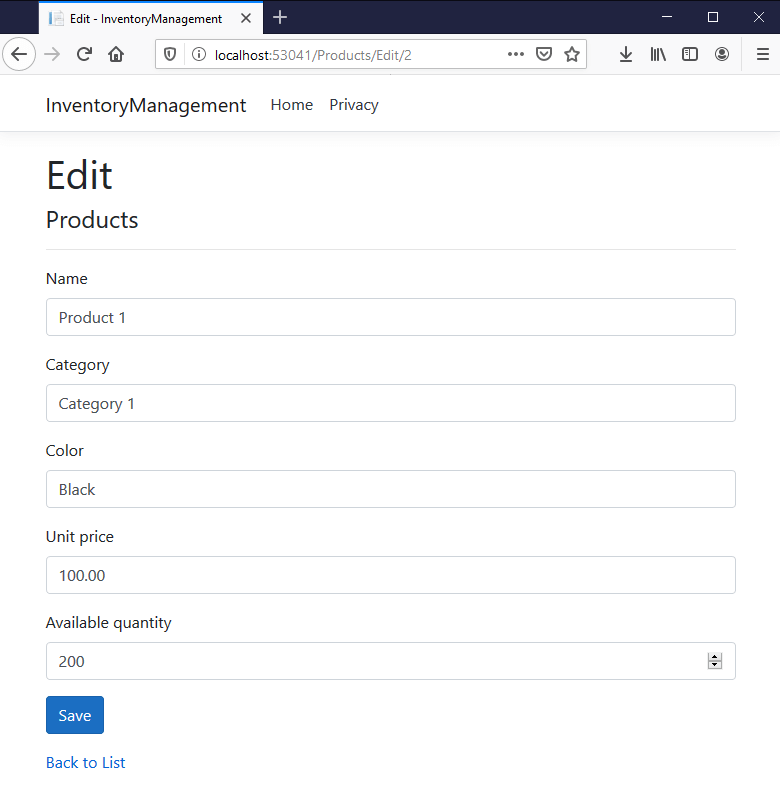

Edit: Accepts the product ID and details as input and, if the product is found, then it updates the new details in the inventory.

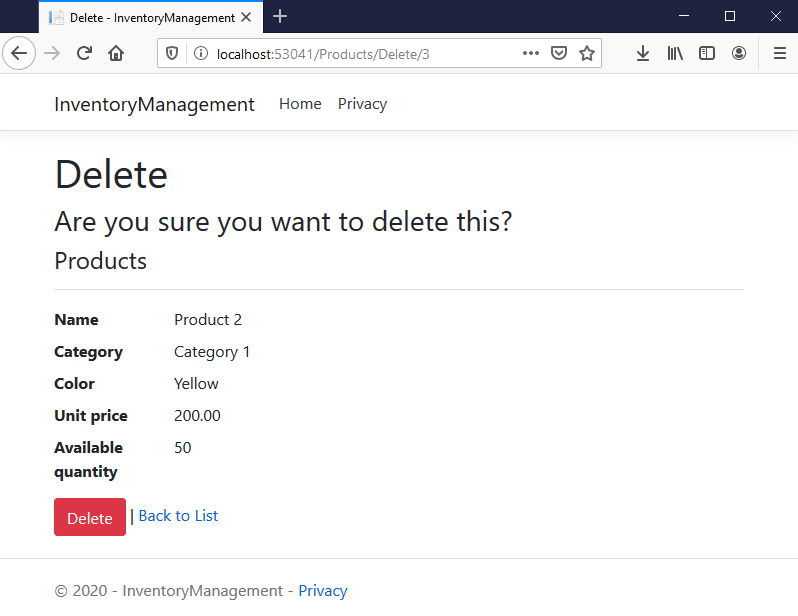

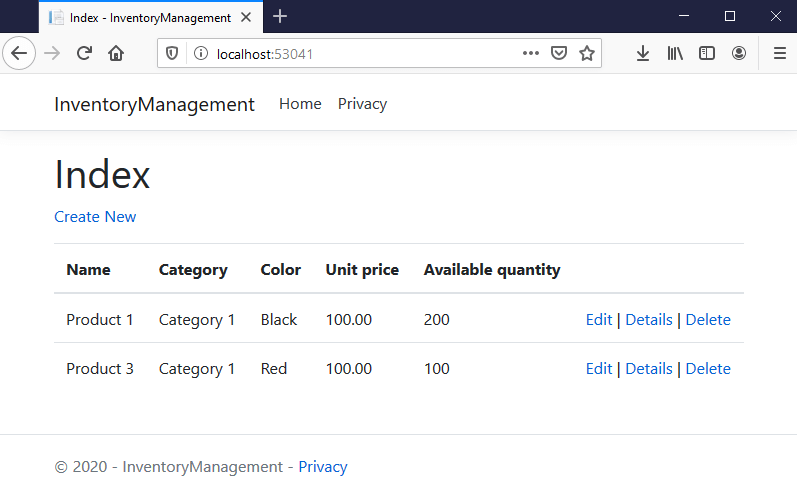

Delete: Gets the product ID as input, requests confirmation, and deletes that product from inventory.

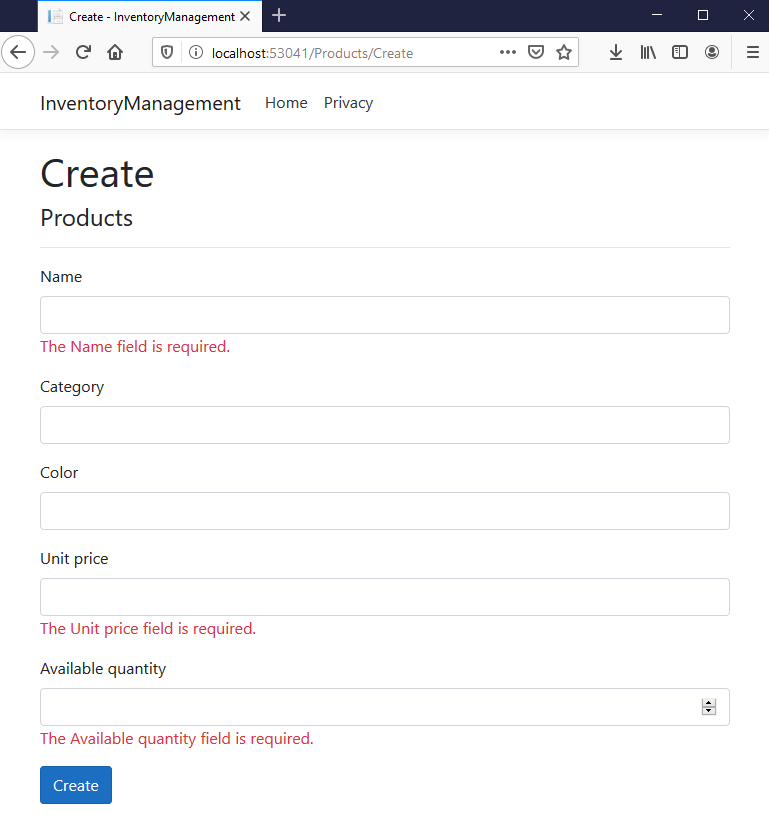

Server-side validation

In the add and edit action, we have added ModelState.IsValid check to ensure the user entered is valid according to the data validation rule we have added to products metadata class.

If all data annotation rules are passed, then inserting or updating will be made to the database. Otherwise, an error message will be returned to the user.

Also, in the add and edit action’s parameter, we have used the Bind attribute, which helps to bind only necessary properties from the UI.

Add View:

Step 1: Create a new folder called Products under Views.

Step 2: Click on the Products folder and click Add. Then select View and click the Razor View – Empty template. Add the following five view files:

  • Create.cshtml
  • Delete.cshtml
  • Details.cshtml
  • Edit.cshtml
  • Index.cshtml

Replace the code in the views with the following code.

Create

@model InventoryManagement.Models.Products

@{
    ViewData["Title"] = "Create";
    Layout = "~/Views/Shared/_Layout.cshtml";
}

<h1>Create</h1>

<h4>Products</h4>
<hr />
<div class="row">
    <div class="col-md-4">
        <form asp-action="Create">
            <div asp-validation-summary="ModelOnly" class="text-danger"></div>
            <div class="form-group">
                <label asp-for="Name" class="control-label"></label>
                <input asp-for="Name" class="form-control" />
                <span asp-validation-for="Name" class="text-danger"></span>
            </div>
            <div class="form-group">
                <label asp-for="Category" class="control-label"></label>
                <input asp-for="Category" class="form-control" />
                <span asp-validation-for="Category" class="text-danger"></span>
            </div>
            <div class="form-group">
                <label asp-for="Color" class="control-label"></label>
                <input asp-for="Color" class="form-control" />
                <span asp-validation-for="Color" class="text-danger"></span>
            </div>
            <div class="form-group">
                <label asp-for="UnitPrice" class="control-label"></label>
                <input asp-for="UnitPrice" class="form-control" />
                <span asp-validation-for="UnitPrice" class="text-danger"></span>
            </div>
            <div class="form-group">
                <label asp-for="AvailableQuantity" class="control-label"></label>
                <input asp-for="AvailableQuantity" class="form-control" />
                <span asp-validation-for="AvailableQuantity" class="text-danger"></span>
            </div>
            <div class="form-group">
                <input type="submit" value="Create" class="btn btn-primary" />
            </div>
        </form>
    </div>
</div>

<div>
    <a asp-action="Index">Back to List</a>
</div>

@section Scripts {
    @{await Html.RenderPartialAsync("_ValidationScriptsPartial");}
}

Delete

@model InventoryManagement.Models.Products

@{
    ViewData["Title"] = "Delete";
    Layout = "~/Views/Shared/_Layout.cshtml";
}

<h1>Delete</h1>

<h3>Are you sure you want to delete this?</h3>
<div>
    <h4>Products</h4>
    <hr />
    <dl class="row">
        <dt class = "col-sm-2">
            @Html.DisplayNameFor(model => model.Name)
        </dt>
        <dd class = "col-sm-10">
            @Html.DisplayFor(model => model.Name)
        </dd>
        <dt class = "col-sm-2">
            @Html.DisplayNameFor(model => model.Category)
        </dt>
        <dd class = "col-sm-10">
            @Html.DisplayFor(model => model.Category)
        </dd>
        <dt class = "col-sm-2">
            @Html.DisplayNameFor(model => model.Color)
        </dt>
        <dd class = "col-sm-10">
            @Html.DisplayFor(model => model.Color)
        </dd>
        <dt class = "col-sm-2">
            @Html.DisplayNameFor(model => model.UnitPrice)
        </dt>
        <dd class = "col-sm-10">
            @Html.DisplayFor(model => model.UnitPrice)
        </dd>
        <dt class = "col-sm-2">
            @Html.DisplayNameFor(model => model.AvailableQuantity)
        </dt>
        <dd class = "col-sm-10">
            @Html.DisplayFor(model => model.AvailableQuantity)
        </dd>
    </dl>

    <form asp-action="Delete">
        <input type="hidden" asp-for="ProductId" />
        <input type="submit" value="Delete" class="btn btn-danger" /> |
        <a asp-action="Index">Back to List</a>
    </form>
</div>

Details

@model InventoryManagement.Models.Products

@{
    ViewData["Title"] = "Details";
    Layout = "~/Views/Shared/_Layout.cshtml";
}

<h1>Details</h1>

<div>
    <h4>Products</h4>
    <hr />
    <dl class="row">
        <dt class = "col-sm-2">
            @Html.DisplayNameFor(model => model.Name)
        </dt>
        <dd class = "col-sm-10">
            @Html.DisplayFor(model => model.Name)
        </dd>
        <dt class = "col-sm-2">
            @Html.DisplayNameFor(model => model.Category)
        </dt>
        <dd class = "col-sm-10">
            @Html.DisplayFor(model => model.Category)
        </dd>
        <dt class = "col-sm-2">
            @Html.DisplayNameFor(model => model.Color)
        </dt>
        <dd class = "col-sm-10">
            @Html.DisplayFor(model => model.Color)
        </dd>
        <dt class = "col-sm-2">
            @Html.DisplayNameFor(model => model.UnitPrice)
        </dt>
        <dd class = "col-sm-10">
            @Html.DisplayFor(model => model.UnitPrice)
        </dd>
        <dt class = "col-sm-2">
            @Html.DisplayNameFor(model => model.AvailableQuantity)
        </dt>
        <dd class = "col-sm-10">
            @Html.DisplayFor(model => model.AvailableQuantity)
        </dd>
    </dl>
</div>
<div>
    <a asp-action="Edit" asp-route-id="@Model.ProductId">Edit</a> |
    <a asp-action="Index">Back to List</a>
</div>

Edit

@model InventoryManagement.Models.Products

@{
    ViewData["Title"] = "Edit";
    Layout = "~/Views/Shared/_Layout.cshtml";
}

<h1>Edit</h1>

<h4>Products</h4>
<hr />
<div class="row">
    <div class="col-md-4">
        <form asp-action="Edit">
            <div asp-validation-summary="ModelOnly" class="text-danger"></div>
            <input type="hidden" asp-for="ProductId" />
            <div class="form-group">
                <label asp-for="Name" class="control-label"></label>
                <input asp-for="Name" class="form-control" />
                <span asp-validation-for="Name" class="text-danger"></span>
            </div>
            <div class="form-group">
                <label asp-for="Category" class="control-label"></label>
                <input asp-for="Category" class="form-control" />
                <span asp-validation-for="Category" class="text-danger"></span>
            </div>
            <div class="form-group">
                <label asp-for="Color" class="control-label"></label>
                <input asp-for="Color" class="form-control" />
                <span asp-validation-for="Color" class="text-danger"></span>
            </div>
            <div class="form-group">
                <label asp-for="UnitPrice" class="control-label"></label>
                <input asp-for="UnitPrice" class="form-control" />
                <span asp-validation-for="UnitPrice" class="text-danger"></span>
            </div>
            <div class="form-group">
                <label asp-for="AvailableQuantity" class="control-label"></label>
                <input asp-for="AvailableQuantity" class="form-control" />
                <span asp-validation-for="AvailableQuantity" class="text-danger"></span>
            </div>
            <div class="form-group">
                <input type="submit" value="Save" class="btn btn-primary" />
            </div>
        </form>
    </div>
</div>

<div>
    <a asp-action="Index">Back to List</a>
</div>

@section Scripts {
    @{await Html.RenderPartialAsync("_ValidationScriptsPartial");}
}

Index

@model IEnumerable<InventoryManagement.Models.Products>

@{
    ViewData["Title"] = "Index";
    Layout = "~/Views/Shared/_Layout.cshtml";
}

<h1>Index</h1>

<p>
    <a asp-action="Create">Create New</a>
</p>
<table class="table">
    <thead>
        <tr>
            <th>
                @Html.DisplayNameFor(model => model.Name)
            </th>
            <th>
                @Html.DisplayNameFor(model => model.Category)
            </th>
            <th>
                @Html.DisplayNameFor(model => model.Color)
            </th>
            <th>
                @Html.DisplayNameFor(model => model.UnitPrice)
            </th>
            <th>
                @Html.DisplayNameFor(model => model.AvailableQuantity)
            </th>
            <th></th>
        </tr>
    </thead>
    <tbody>
@foreach (var item in Model) {
        <tr>
            <td>
                @Html.DisplayFor(modelItem => item.Name)
            </td>
            <td>
                @Html.DisplayFor(modelItem => item.Category)
            </td>
            <td>
                @Html.DisplayFor(modelItem => item.Color)
            </td>
            <td>
                @Html.DisplayFor(modelItem => item.UnitPrice)
            </td>
            <td>
                @Html.DisplayFor(modelItem => item.AvailableQuantity)
            </td>
            <td>
                <a asp-action="Edit" asp-route-id="@item.ProductId">Edit</a> |
                <a asp-action="Details" asp-route-id="@item.ProductId">Details</a> |
                <a asp-action="Delete" asp-route-id="@item.ProductId">Delete</a>
            </td>
        </tr>
}
    </tbody>
</table>

Client-side validation

Notice that in the Add and Edit views I have rendered the following partial view.

Html.RenderPartialAsync("_ValidationScriptsPartial");

You can find the _ValidationScriptsPartial view in the shared view folder (default file generated by the ASP.NET Web application template), which has necessary script files to handle validation at the client side.

The client-side validation also works according to the rules we have added to products’ metadata class using data annotation, and it displays validation messages.

Note: In this application, we have used both server-side and client-side validation. The benefit of client-side validation is that it reduces the server round-trip time by preventing form submission to the server when the form is in an invalid state.

Run application

Now we have added the products controller, views, and validations. Let’s see how to run the application. Follow these steps to do so:

Step 1: Click Run to view the application. A new browser tab will open, and you’ll be able to see the product listing page. Since there is no product in the inventory, it will be empty.Inventory Management

Step 2: Click Create New to add new product to the inventory, and the following screen will be displayed.Create Product

Step 3: Click Create without filling any data and you will be able to see the below validation errors which we added using data annotation,Data Validation during creation

Step 4:  Enter a name, category, color, unit price, and available quantity. Then click Create.

Now we should see a newly created product in the listing page as in the following screenshot. I have added two more products.Read the data

Step 5: Click Details to view the product details.Display details

Step 6:  Click Edit to update product details. Modify the products details and click Save. I have modified the available quanilty of Product 1 to 200 and clicked Save.Edit details

Now the modified quantity will be updated in the database.

Step 7:  Click Delete to delete a product. Confirmation will be asked before it’s deleted from the database. By clicking Delete, product will be deleted from the database.Delete confirmation

The final inventory products list looks as follows.Display updated details

Migrate to ASP.NET Core 5 from ASP.NET Core 3.x

Follow these steps to migrate to the latest version of ASP.NET Core from ASP.NET Core 3.0 or 3.1.

Step 1: Edit the project file and change the TargetFramework to 5.0 as follows.Correct Target Framework

Step 2: Update all Microsoft.AspNetCore.* package references to 5.0.0preview.2.20167.3.

Step 3: Update all Microsoft.Extensions.* package references to 5.0.0preview.2.20167.3.

Step 4: Update all Microsoft.EntityFrameworkCore.* package references to 5.0.0-preview.2.20159.4.

Step 5: Build and run the application. Now your application will run in ASP.NET Core 5.0 with .NET 5.0.

Sample application

I have shared the sample application in this GitHub location. Follow these steps to run the sample:

Step 1: Check out the sample project from the previously linked GitHub location to a location in your disk.

Step 2: Open the solution file using the Visual Studio 2019 Preview 16.6.0 Preview 2.0 or later.

Step 3: Restore the NuGet packages by rebuilding the solution.

Step 4: Change the connection string in the appsettings.json file that points to your SQL Server.

Step 5: Run the project.

Conclusion

In this blog, we have learned how to create an ASP.NET Core 5.0 application and connect it to a SQL database to perform basic CRUD operations using Entity Framework Core 5.0. I hope it was useful. Please share your feedback in the comments section below.

Syncfusion provides over 70 high-performance, lightweight, modular, and responsive ASP.NET Core UI controls such as DataGrid, Charts, and Scheduler, and all of them have built-in support for localization. You can use them to improve your application development.

If you have any questions about this blog, please let us know in the comments section below. You can also contact us through our support forum, Direct-Trac, or feedback portal. We are always happy to assist you!

Tags:

Share this post:

Share on twitter
Share on facebook
Share on linkedin

Leave a comment

Popular Now

Be the first to get updates

Subscribe RSS feed
Scroll To Top
