Easily Publish an ASP.NET Core App in Linux Docker that Compresses PDF Documents

Easily Publish an ASP.NET Core App in Linux Docker that Compresses PDF Documents

We are glad to announce that the Syncfusion PDF Library has been extended to support compressing PDF documents in the ASP.NET Core platform from version 18.2.0.44 (Essential Studio 2020 Volume 2 release) onwards.

In this blog, I am going to create an ASP.NET Core web application to compress PDF documents and run the application in Linux Docker. The following topics will be covered:

Let’s get started!

Create an ASP.NET Core web application

Follow these steps to create an ASP.NET Core web application in Visual Studio 2019:

  1. In Visual Studio 2019, go to File > New and then select Project.
  2. Select Create a new project.
  3. Select the ASP.NET Core Web Application template.
  4. Enter the Project name and then click Create. The Project template dialog will be displayed.
  5. Select the Enable Docker Support check box and select Linux in the drop-down list and click Create.

Refer to the following screenshot.

Note: Install Docker for Windows to deploy applications in a Linux Docker container.

Install necessary NuGet packages to compress PDF documents

After creating the ASP.NET Core web application, follow these steps to install the Syncfusion.Pdf.Imaging.Net.Core NuGet package in the project:

  1. Right-click on the project and select Manage NuGet Packages.

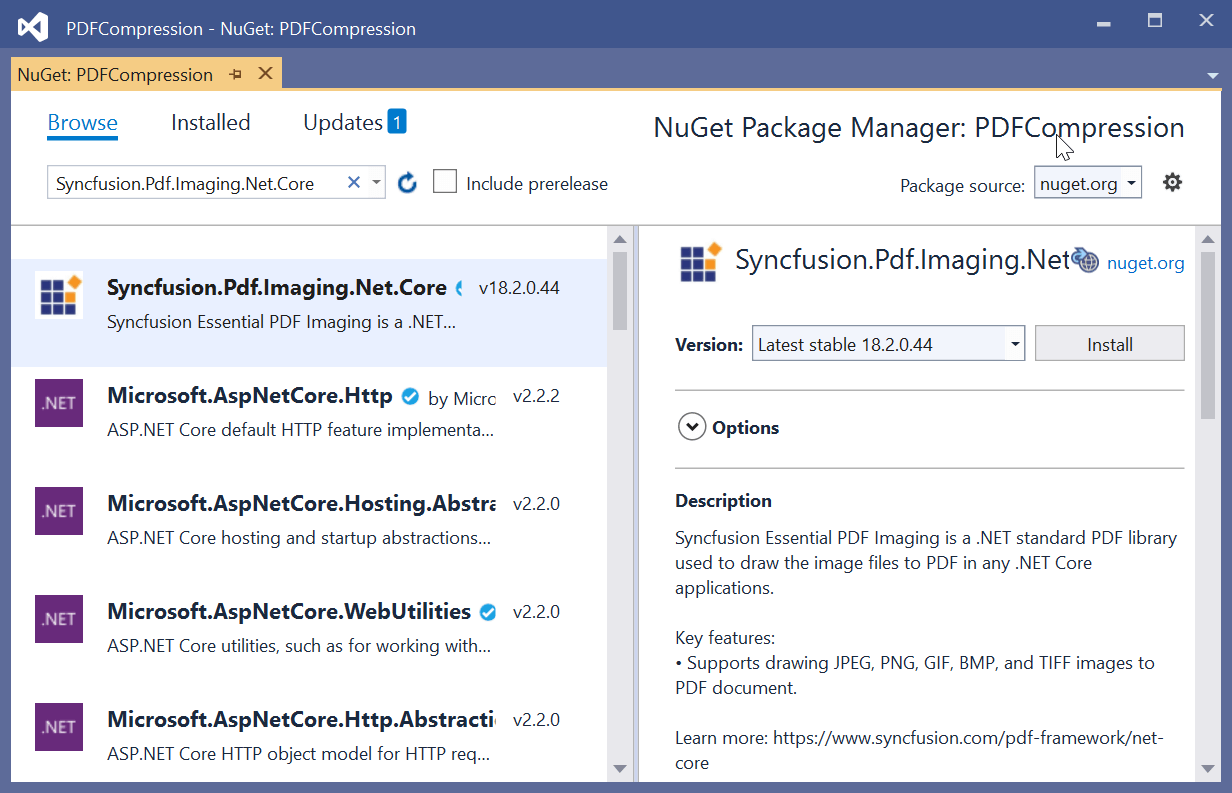

  1. Search for the Syncfusion.Pdf.Imaging.Net.Core package and then install it.

Refer to the following screenshot.
Search for the Syncfusion.Pdf.Imaging.Net.Core package and then install it.

Compress PDF documents

After installing the necessary NuGet packages, follow these steps to compress PDF documents:

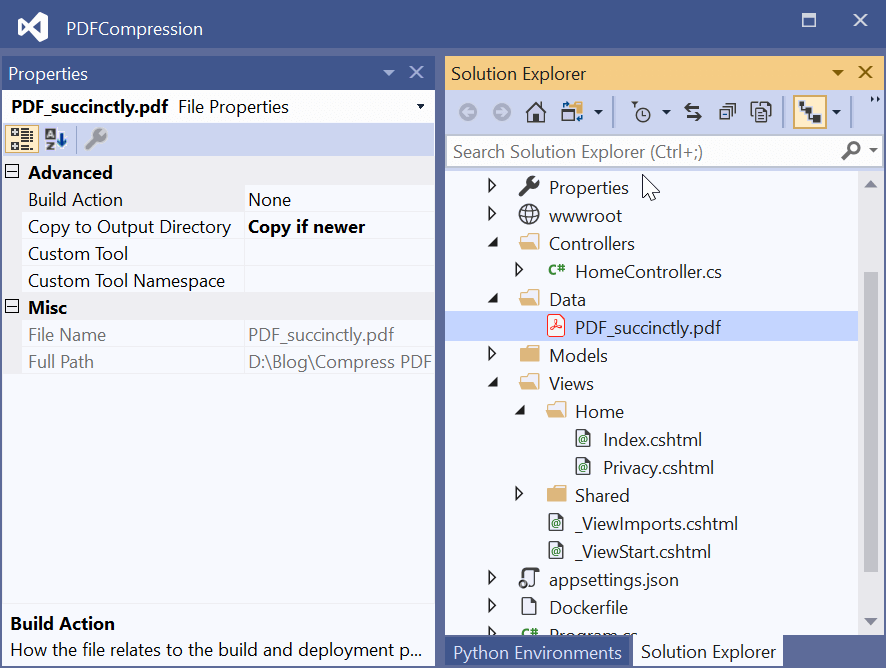

  1. Place the input document in the Data folder, and in the properties of the PDF document, set Copy to Output Directory to Copy if newer for the data as shown in the following screenshot.
    Set Copy to Output Directory to Copy if newer for the data in the Properties section
  2. Add a new button in the index.cshtml file.
    @{ Html.BeginForm("CompressPDF", "Home", FormMethod.Post);
        {
            <input type="submit" value="Compress PDF Document" class=" btn" />
        }
    }

  3. Include the following namespaces in HomeController.cs.
    using Microsoft.AspNetCore.Mvc;
    using Syncfusion.Pdf.Parsing;
    using Microsoft.AspNetCore.Hosting;
    using System.IO;
    using Syncfusion.Pdf;

  4. Include the following code in the HomeController.cs file to compress the PDF document.
    public IActionResult CompressPDF()
    {
    string path = Path.Combine(_hostingEnvironment.ContentRootPath, "Data", "PDF_succinctly.pdf");

    FileStream inputDocument = new FileStream(path, FileMode.Open);

    //Load an existing PDF document
    PdfLoadedDocument loadedDocument = new PdfLoadedDocument(inputDocument);

    //Create a new compression option
    PdfCompressionOptions options = new PdfCompressionOptions();

    //Enable the compress image
    options.CompressImages = true;

    //Set the image quality.
    options.ImageQuality = 30;

    //Optimize the font in the PDF document
    options.OptimizeFont = true;

    //Optimize page contents
    options.OptimizePageContents = true;

    //Remove metadata from the PDF document
    options.RemoveMetadata = true;

    //Flatten form fields in the PDF document
    if (loadedDocument.Form != null)
    loadedDocument.Form.Flatten = true;

    //Flatten all the annotations in the PDF document
    foreach (PdfPageBase page in loadedDocument.Pages)
    {
    if (page.Annotations != null)
    page.Annotations.Flatten = true;
    }

    //Assign the compression option and compress the PDF document
    loadedDocument.Compress(options);

    //Create a MemoryStream instance to save the document
    MemoryStream outputDocument = new MemoryStream();

    //Save the PDF document
    loadedDocument.Save(outputDocument);
    outputDocument.Position = 0;

    //Close the document
    loadedDocument.Close(true);


    //Download the PDF document in the browser
    FileStreamResult fileStreamResult = new FileStreamResult(outputDocument, "application/pdf");
    fileStreamResult.FileDownloadName = "Compressed_PDF_document.pdf";

    return fileStreamResult;
    }

Note: Compression optimizes the image quality and fonts, removes unwanted comments and white spaces, flattens annotations and form fields, and more.

You can also customize the compression operation with the help of the PdfCompressOptions class. To do so, refer to the following table of properties.

PropertiesDescription
CompressImagesIf set to true, the images present in the PDF document are compressed. The image compression depends on the ImageQuality property, and based on that image quality value, the images are downsampled to reduce the file size. The default value of this flag is false.
ImageQualityGets or sets the percentage of image compression. You can set the value from 0 to 100 percent. The default value is 100.
OptimizeFontIf set to true, the font is optimized by removing unwanted or unused glyphs and font tables from the embedded fonts in a PDF document. The default value is false.
OptimizePageContentsIf set to true, the internal content stream is optimized by removing the unwanted white spaces and comment lines, and compresses all uncompressed contents. These changes will not affect the actual view of the document. The default value is false.
RemoveMetadataIf set to true, the unnecessary metadata information is removed from the PDF document and the size of the document is reduced. The default value is false.

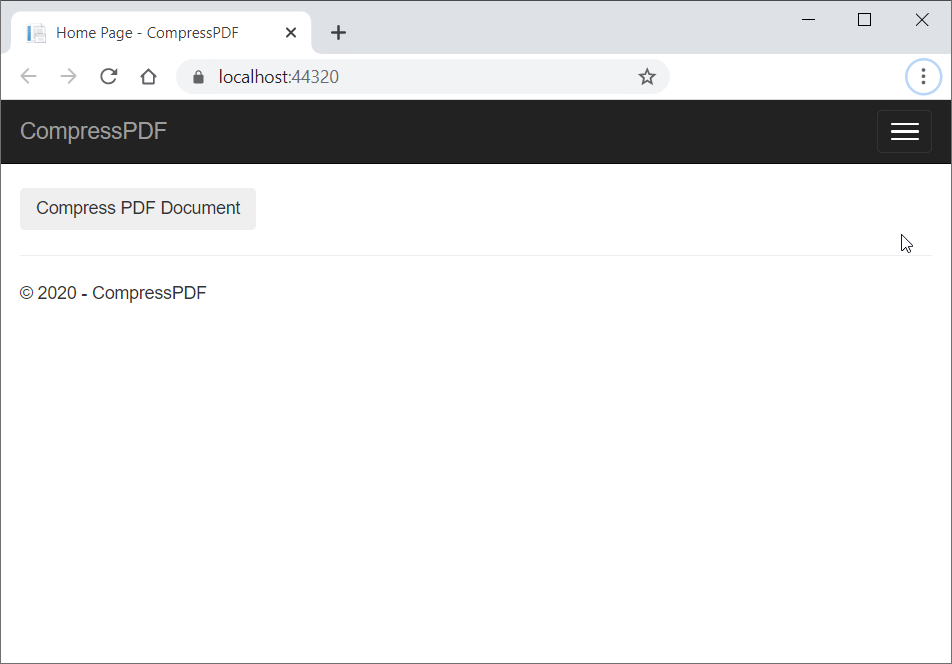

By executing the code above, you will get a compressed PDF document.

Run PDF compression in Linux Docker

After successfully executing the project, follow these steps to run the application in Linux Docker:

  1. Select the target platform Docker from the toolbar as shown in the following screenshot.
  2. Click on the Docker button to run the application. Visual Studio will now build and run your container image and launch a web browser.

GitHub samples

You can download an example of this PDF compression app in ASP.NET Core from this GitHub repository.

Conclusion

In this blog post, we have learned an easy way to compress PDF documents in an ASP.NET Core web application that is deployed in Linux Docker. With this app, you can reduce the file size of PDF documents without degrading the document quality or appearance. This PDF compression feature is available in ASP.NET Core as of the 2020 Volume 2 release.

Take a moment to peruse our documentation, where you’ll find other options and features of the Syncfusion PDF Library, all with accompanying code examples.

If you have any questions about these features, please let us know in the comments section below. You can also contact us through our support forums, Direct-Trac, or feedback portal. We are always happy to assist you!
