Formatting Essential JavaScript Spreadsheet – Conditional Formatting

Formatting Essential JavaScript Spreadsheet: Conditional Formatting

In this blog post, we will walk through the conditional formatting feature in the Syncfusion JavaScript Spreadsheet. It helps you highlight a cell or a range of cells with a certain color based on applied conditions, and showcases the data by using data bars, color scales, and icon sets that correspond to specific variations in the data. The different types of conditional formatting options available in the JavaScript Spreadsheet are:

Highlight cell rules

The highlight cell rules option enables you to highlight cells with colors depending on the rules applied. The following conditions can be used for highlight cell rules:

  • GreaterThan
  • LessThan
  • Between
  • EqualTo
  • ContainsText
  • DateOccur
  • Duplicate
  • Unique

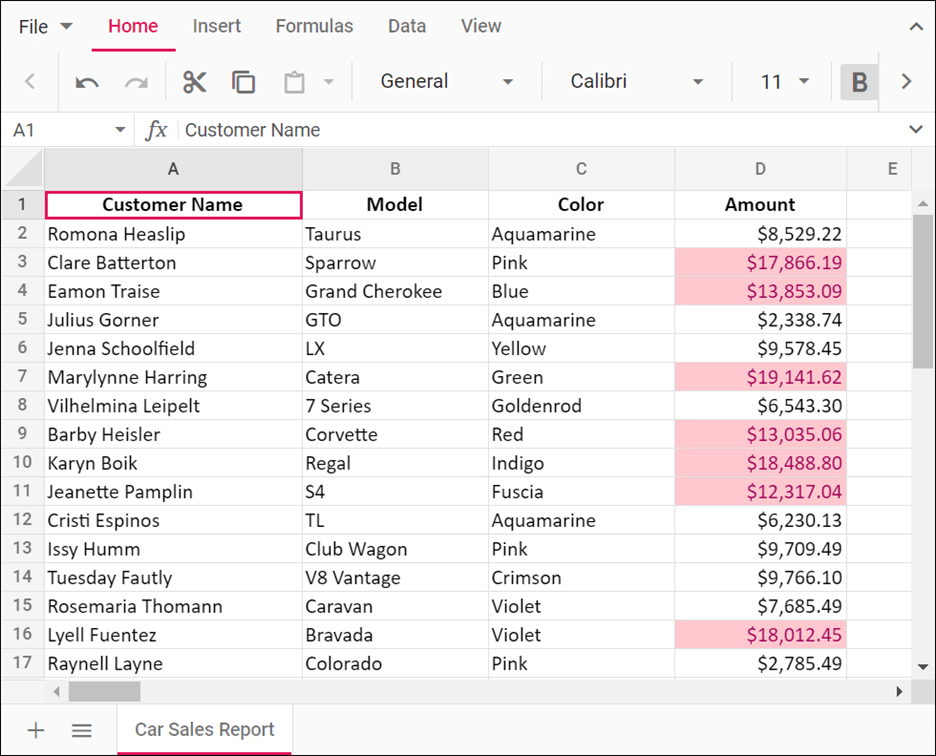

In the following screenshot, formatting is applied to values greater than 10,000 in the Amount column in JavaScript Spreadsheet.
Highlighting Cell values greater than 10,000 in the Amount column in JavaScript Spreadsheet

Top and bottom rules

The top and bottom rules allow you to apply formatting to the cells in JavaScript Spreadsheet whose values meet a given threshold.

The following conditions can be used for the top and bottom rules:

  • Top10Items
  • Bottom10Items
  • Top10Percentage
  • Bottom10Percentage
  • BelowAverage
  • AboveAverage

The following preset colors can be used for formatting styles:

  • RedFT: light red fill with dark red text.
  • YellowFT: yellow fill with dark yellow text.
  • GreenFT: green fill with dark green text.
  • RedF: red fill.
  • RedT: red text.

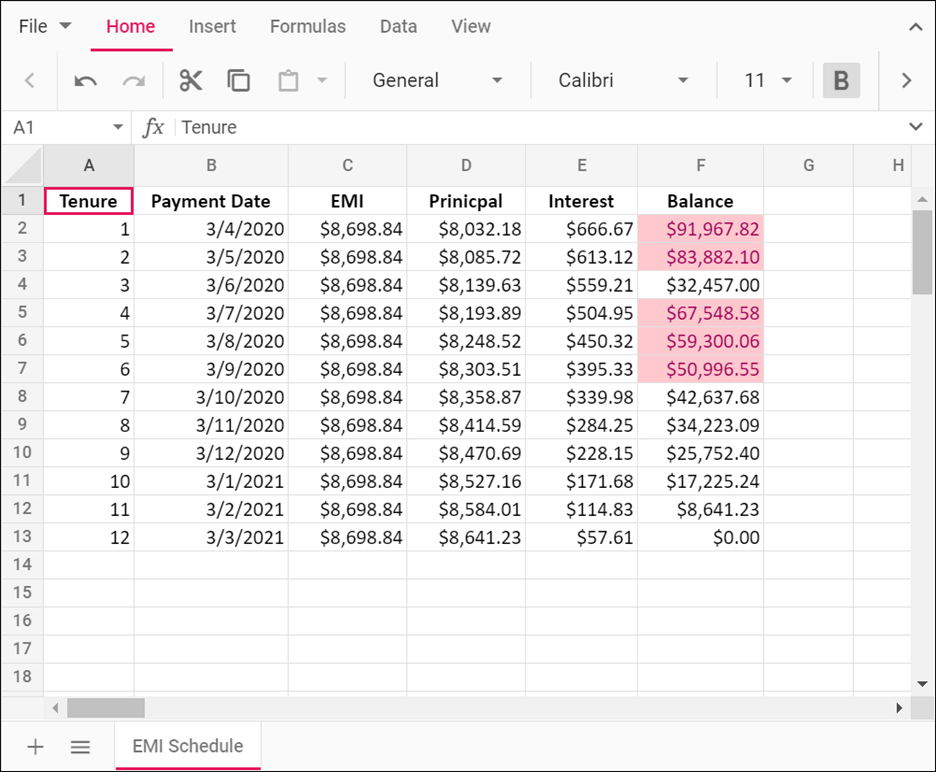

In the following screenshot, the Top 10 Items rule is applied with the RedFT style to the Balance column in JavaScript Spreadsheet.
Top 10 Items rule applied with the RedFT style to the Balance column in JavaScript Spreadsheet

Data bars

Data bars make it easy to visualize the value in a cell or a range of cells. It shows the data of a cell as a bar. When used for a range of cells, the longest bar represents the highest value of the range, and shorter bars represent smaller values.

The following styles can be used for data bars:

  • BlueDataBar
  • GreenDataBar
  • RedDataBar
  • OrangeDataBar
  • LightBlueDataBar
  • PurpleDataBar

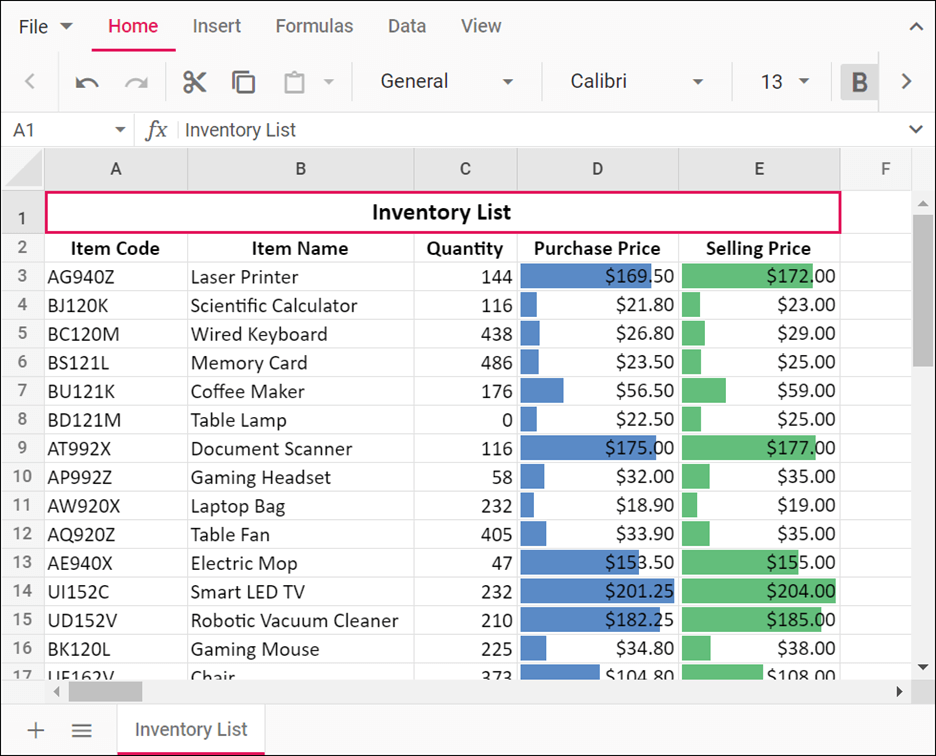

In the following screenshot, data bars are applied to the Purchase Price and Selling Price columns in JavaScript Spreadsheet.
Data bars applied to the Purchase Price and Selling Price columns in JavaScript Spreadsheet

Color scales

Color scales visualize cell data as colors, where the color changes based on the cell value. A color scale has a minimum of two colors (e.g., GY uses green and yellow) and a maximum of three colors (e.g., GYR uses green, yellow, and red). The first color represents the lower value, the last color represents the higher value, and the middle color represents median value.

The following options can be used for color scale types:

  • GYRColorScale
  • RYGColorScale
  • GWRColorScale
  • RWGColorScale
  • BWRColorScale
  • RWBColorScale
  • WRColorScale
  • RWColorScale
  • GWColorScale
  • WGColorScale
  • GYColorScale
  • YGColorScale

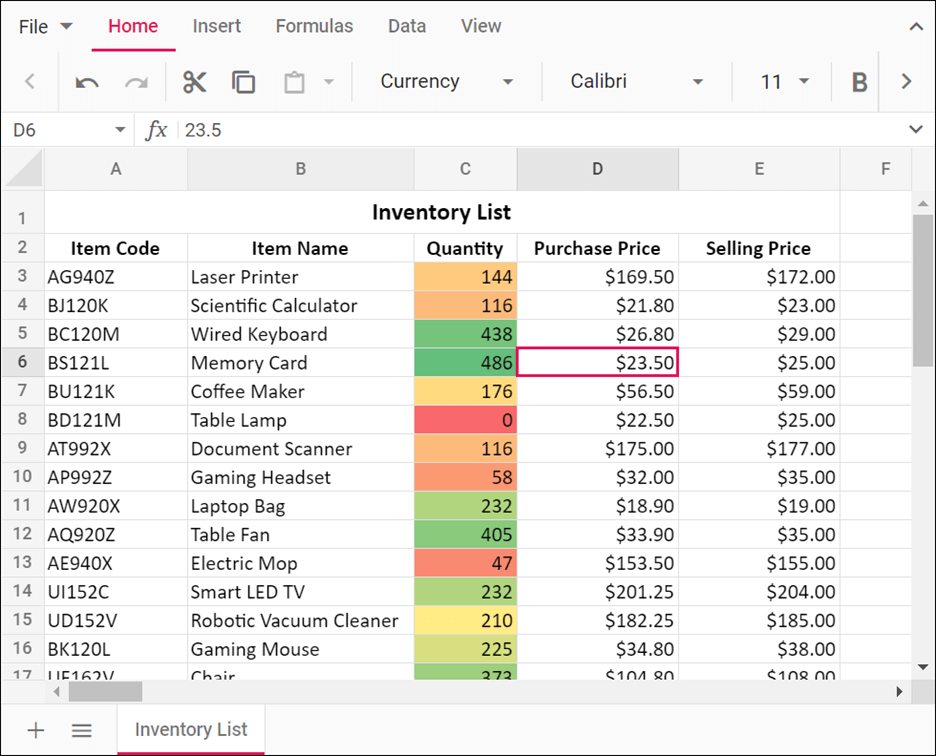

In the following screenshot, a color scale is applied to the Quantity column in JavaScript Spreadsheet.
Color scale applied to the Quantity column in JavaScript Spreadsheet

Icon sets

Icon sets in the JavaScript Spreadsheet control make it easy to visualize the data of a cell or range of cells. Each icon represents a range of values. The control supports three sets of icons:

  • Three icons (e.g., three arrows).
  • Four icons (e.g., four arrows).
  • Five icons (e.g., five arrows).

These icons will be applied based on the percentage of values in the cell or range of cells.

The following options are available for the icon type:

  • ThreeArrows
  • ThreeArrowsGray
  • FourArrowsGray
  • FourArrows
  • FiveArrowsGray
  • FiveArrows
  • ThreeTrafficLights1
  • ThreeTrafficLights2
  • ThreeSigns
  • FourTrafficLights
  • FourRedToBlack
  • ThreeSymbols
  • ThreeSymbols2
  • ThreeFlags
  • FourRating
  • FiveQuarters
  • FiveRating
  • ThreeTriangles
  • ThreeStars
  • FiveBoxes

In the following screenshot, an icon set is applied to the Rating column in JavaScript Spreadsheet.
Icon set applied to the Rating column in JavaScript Spreadsheet

Custom conditional formatting in JavaScript Spreadsheet

Using the custom conditional formatting support in JavaScript Spreadsheet, you can customize cell styles like color, background color, font styles, and properties based on the conditions applied.

Where are the conditional formatting options?

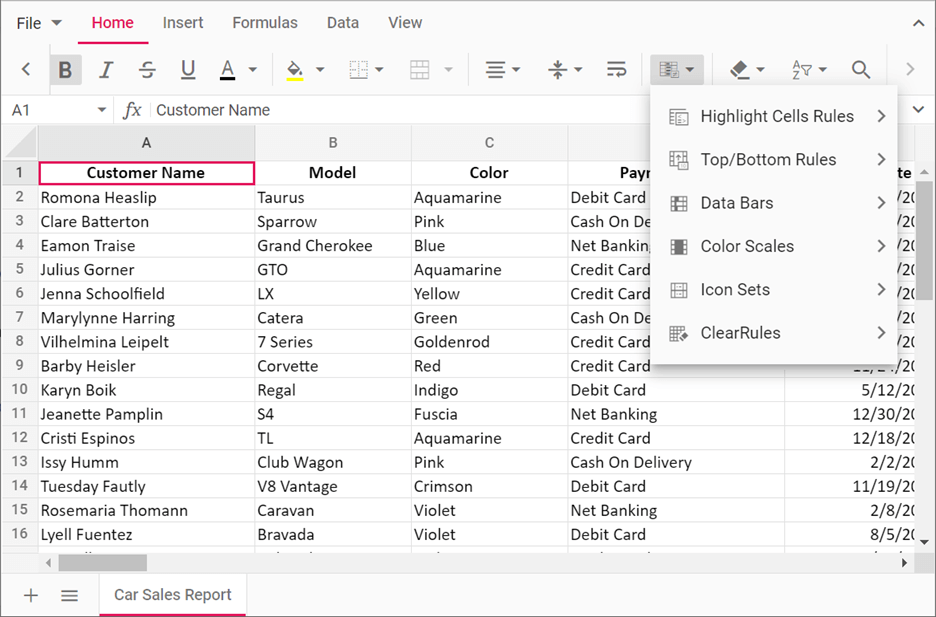

On the Home tab of the ribbon, you can find the Conditional Formatting drop-down button.
Conditional Formatting drop-down button

Adding conditional formatting in JavaScript Spreadsheet through code

In the JavaScript Spreadsheet control, you can add conditional formatting through code by using the conditionalFormat public method and passing the format options with it.

The following code example showcases the application conditional formatting.

/**
 * Conditional Formatting
 */


    loadCultureFiles();

    //Initialize Spreadsheet component.
    let spreadsheet: Spreadsheet = new Spreadsheet({
        sheets: [{
            rows: [{
                height: 30,
                cells: [{
                    index: 1,
                    value: 'Inventory List',
                }]
            }],
            ranges: [{
        //Referred
                dataSource: (dataSource as any).conditionalFormatting,
                startCell: 'A2'
                },
            ],
            name: 'Inventory List',
            conditionalFormats: [
                { type: 'GYRColorScale', range: 'C3:C18' },
                { type: 'LessThan', cFColor: 'RedFT', value: '8/30/2019', range: 'G3:G18' }
            ] } ],
        created: () => {
            spreadsheet.merge('A1:H1');
            spreadsheet.cellFormat({ fontWeight: 'bold', textAlign: 'center' }, 'A2:H2');
            spreadsheet.cellFormat({ fontWeight: 'bold', textAlign: 'center', verticalAlign: 'middle', fontSize: '13pt' }, 'A1:H1');
            spreadsheet.numberFormat('$#,##0.00', 'F3:F18');
            spreadsheet.conditionalFormat({ type: 'BlueDataBar', range: 'D3:D18' });
            spreadsheet.conditionalFormat({ type: 'GreenDataBar', range: 'E3:E18' });
            spreadsheet.conditionalFormat({ type: 'ThreeStars', range: 'H3:H18' });
            spreadsheet.conditionalFormat({ type: 'Top10Items', value: '1',
             format: { style: { color: '#ffffff', backgroundColor: '#009999', fontWeight: 'bold'}}, range: 'F3:F18' });
            spreadsheet.conditionalFormat({ type: 'Bottom10Items', value: '1',
             format: { style: { color: '#ffffff', backgroundColor: '#c68d53', fontWeight: 'bold'}}, range: 'F3:F18' });
        }
    });
    //Render initialized Spreadsheet component.
    spreadsheet.appendTo('#spreadsheet');

The following screenshot shows the conditional formatting applied to the  JavaScript Spreadsheet component through the previous code sample.
Custom conditional formatting in JavaScript Spreadsheet

Resource

For more information, you can check out JavaScript Spreadsheet: Conditional Formatting demo.

Conclusion

I hope you now have a better understanding of the conditional formatting feature in the Syncfusion JavaScript Spreadsheet control. Please share your thoughts about it in the comments section below.

If you’re already a Syncfusion user, you can download the Essential Studio for JavaScript product setup to try out this control. Otherwise, you can download a free 30-day trial.

If you have any questions about these features, please contact us through our support forumsDirect-Trac, or feedback portal. We are happy to assist you!
