Getting Started with R

---

R is a free, open-source statistical programming language. Its utility and popularity show the same explosive growth that characterizes the increasing availability and variety of data. And while the command line interface of R can be intimidating at first to many people, the strengths of this approach, such as increased ability to share and reproduce analyses, soon become apparent. This book serves as an introduction to R for people who are intrigued by its possibilities. Chapter 1 will lay out the steps for installing R and a companion product, RStudio, for working with variables and data sets, and for discovering the power of the third-party packages that supplement R’s functionality.

Installing R

R is a free download that is available for Windows, Mac, and Linux computers. Installation is a simple process.

1. Open a web browser and go to the R Project site.
2. Under “Getting Started,” click “download R,” which will take you to a list of dozens of servers with the downloads.
3. Click any of the servers, although it may work best to click the link http://cran.rstudio.com/ under “0-Cloud”.
4. Click the download link for your operating system; the top option is often the best.
5. Open the downloaded file and follow the instructions to install the software.

You should now have a functional copy of R on your computer. If you double-click the application icon to open it, then you will see the default startup window in R. It looks something like Figure 1.

1. The Default Startup Window for R

For those who are comfortable working with the command line, it is also possible to access R that way. For example, if I open Terminal on my Mac and type R at the prompt, I get Figure 2.

2. Calling R from the Command Line

You’ll notice that the exact same boilerplate text that appeared in R’s IDE appears in the Terminal.

Many people run R in either of these two environments: R’s IDE, or the command line. ‘There are other methods, though, that make working with R easier, which is where we will turn next.

Installing RStudio

R is a great way to work with data but the interface is not perfect. Part of the problem is that everything opens in separate windows. Another problem is that the default interface for R does not look and act the same in each operating system. Several interfaces for R exist to solve these problems. Although there are many choices, the interface that we will use in this book is RStudio.

Like R, RStudio is a free download that is available for Windows, Mac, and Linux computers. Again, installation is a simple process, but note that you must first install R.

1. Open a web browser and go to https://www.rstudio.com.
2. Click “Download now”.
3. RStudio can run on a desktop or over a Linux server. We will use the desktop version, so click “Download RStudio Desktop.”
4. RStudio will check your operating system; click the link under “Recommended for your system.”
5. Open the downloaded file and follow the instructions to install the software.

If you double-click the RStudio icon, you will see something like Figure 3.

3. RStudio Startup Window

RStudio organizes the separate windows of R into a single panel. It also provides links to functions that can otherwise be difficult to find. RStudio has a few other advantages as well:

• It allows you to divide your work into contexts or “projects.” Each project has its own working directory, workspace, history, and source documents.
• It has GitHub integration.
• It saves a graphics history.
• It exports graphics in many sizes and formats.
• It can create interactive graphics via the Manipulate package.
• It provides code completion with the tab key.
• It has standardized keyboard shortcuts.

RStudio is a convenient way of working with R, but there are other options. You may want to spend a little time looking at some of the alternatives so you can find what works best for you and your projects.

The R console

When you open RStudio, the two windows where you will work the most are on the left by default. The bottom window on the left is the R console, which has the R command prompt: > (the “greater than” sign). Two things can happen in the console. First, you can run commands here by typing at the prompt, although you cannot save your work there. Second, R gives the output for the commands.

We can try entering a basic command in the console to see how it works. We’ll start with addition. Enter the following text at the command prompt and press Enter:

The first line contains the command you entered; in this case 9 + 11. Note that you do not need to type an equal sign or any other command terminator, such as a semicolon. Also, although it is not necessary to put spaces before and after the plus sign, it is good form.[1] The output looks like this:

The second line does not have a command prompt because it has the program’s output. The “1” in square brackets, [1], requires some explanation. R uses vectors to do math and that it how it returns the responses. The number in brackets is the index number for the first item in the vector on this line of output. (Many other programs begin with an index number of 0, but R begins at 1.) After the index number, R prints the output, the sum “20” in this case.

The contents of the console will scroll up as new information comes in. You can also clear the console by selecting Edit > Clear console or pressing ctrl-l (a lower-case L) on a Mac or PC. Note that this only clears the displayed data, it does not purge the data from the memory or lose the history of commands.

The Script window

The console is the default window in R, but it is not the best place to do your work. The major problem is that you cannot save your commands. Another problem is that you can enter only one command at a time. Given these problems, a much better way to work with R is to use the Script window. In RStudio, this is the window on the top left, above the console. (In case you see nothing there, go to File > New File > R Script or press Shift+Command+N to create a new script document.)

A script in R is a plain text file with the extension “.R.” When you create a new script in R, you can save that script and you can select and run one or more lines of it at a time. We can recreate the simple addition problem we did in the console by creating a new script and then typing the command again. You can also enter more than one command in a script, even if you only run one at a time. To see how this works, you should type the following three lines.

Note that there is no command prompt > in the script window. Instead, there are just numbered lines of text. Next, save this script by either selecting File > Save or by pressing Command+S on the Mac and Ctrl+S on Windows.

If you want to run one command at a time, then place your cursor anywhere on the line of desired command. Then select Code > Run Line(s) or press Command+Return (Ctrl+Return on Windows). This will send the selected command down to the console and display the results. For the first command, 9 + 11, this will produce the same results that we had earlier when we entered the command at the console.

The next two lines of code illustrate a few other, basic functions. The command 1:50 creates a list of numbers from 1 to 50. You can also see that the number in square brackets at the beginning of the line is the index number for the first item on that line.

If you run the third line of text, print("Hello World!"), you get this output.

The output "Hello World!" is a character vector of length 1. This is the same as a string in C or other languages.

Comments

It is good form to add comments to your code. Comments can help you remember what each section of your code does. Comments also help make your code reproducible because other people can follow your logic. This is critical in collaborative projects, as well as projects that you might revisit later.

To make a comment in R, type # followed by your text. You can also “comment out” a line of code to disable it while you try alternative lines. To make a multiline comment, you will need to comment each line, as R has no built-in multiline function. RStudio makes it easy to comment out lines. Just select the text and go to Code > Comment/Uncomment Lines or press Shift+Command+C (Shift+Ctrl+C on Windows).

Data structures

R recognizes four basic structures of data:

1. Vectors. A vector is a one-dimensional array. All of the data must be in the same format, such as numeric, character, and so on. This is the basic data object in R.
2. Matrices and Arrays. A matrix is similar to a vector in that all of the data must be of the same format. A matrix, however, has two dimensions; the data is arranged in rows and columns (and the columns must be the same length), but the columns are not named. An array is similar to a matrix except that it can have more than two dimensions.
3. Data frames. A data frame is a collection of vectors that are all the same length. The difference between a data frame and a matrix is that a data frame can have vectors of different data types, such as a numeric vector and a character vector. The vectors can also have names. A data frame is similar to a data sheet in SPSS or a worksheet in Excel (with the difference, again, that the vectors in a data frame must all be the same length).
4. Lists. A list is the most general data structure in R. A list is an ordered collection of elements of any class, length, or structure (including other lists). Many statistical functions, however, cannot be applied to lists.

R also has several built-in functions for converting or coercing data from one structure to another:

• as.vector() can coerce matrices to one-dimensional vectors, although it may be necessary to first coerce them to matrices
• as.matrix() can coerce data structures into the matrix structure
• as.data.frame() can coerce data structure into data frames
• as.list() can coerce data structures to lists

Variables

Variables are easy to create in R. Just type the name of the variable, there is no need to assign the variable type. Next, use the assignment operator, which is <-. You can read this as “gets," so that x <- 2 means "x gets 2." It is possible to use the equal sign for assigning values, but that is bad form in R. In the following two lines, I create a variable x, assign the values 1 to 5, and then display the contents of x by typing its name.

If you want to specify each value that you assign to a variable, you can use the function c. This stands for "concatenate," although you can also think of it as "combine" or "collection." This function will create a single vector with the items you assign to it. As a note, RStudio has a convenient shortcut for the assignment operator, <-. When you are typing in your code, use the shortcut Alt+Hyphen and RStudio will insert a leading space, the assignment operator, and a trailing space. You can then continue with your coding.

Here I assign the values 7, 12, 5, 4, and 9 to the vector y.

The assignment operator can also go from left to right or it can include several variables at once.

To remove a variable from R's workspace, use the rm function.

Packages

The default installation of R is impressive in its functionality but it can't do everything. One of the great strengths of R is that you can add packages. Packages are bundles of code that extend R's capabilities. In other languages, these bundles are libraries, but in R the library is the place that stores all the packages. Packages for R can come from two different places.

Some packages ship with R but are not active by default. You can see these in the Packages tab in RStudio. Other packages are available online at repositories. A list of available packages can be viewed here. This webpage is part of the Comprehensive R Archive Network (CRAN). It contains a list of topics or "task views" for packages. If you click on a topic, it will take you to an annotated list with links to individual packages. You can also search for packages by name here. Another good option is the website CRANtastic. All the packages at these sites are, like R, free and open source.

To see which packages are currently installed or loaded, use the following functions:

library() will bring up a text list of functions. The same information is available in hyperlinked format under the Packages tab in RStudio. search() will display the names of the active packages in the console. These are the same packages that have checks in RStudio's Package tab.

To install new packages, you have several options in RStudio. First, you can use the menus under Tools > Install Packages. Second, you can click "Install Packages" at the top of the Packages tab. Third, you can use the function install.packages(). Just put the name of the desired package in quotes (and remember that, like most programming languages, R is case-sensitive). The last option is best if you want to save the command as part of a script.

The previous command installs the package. To use the package, you must also load it or make it active in R. There are two ways to do this. The first is library(), which is often used for loading packages in scripts. The second is require(), which is often used for loading packages in functions.[2] In my experience, require(), works in either setting and avoids confusion about the meaning of "library," so I prefer to use it.

To learn more about a package, you can use R's built-in help functions. Many packages also have vignettes, which are examples of the package's functions. You can access these with the following code:

You should also check for package updates on a regular basis. There are three ways to do this. First, you can use the menus in RStudio: Tools > Check for Package Updates. Second, you can go the Package tab in RStudio and click "Check for Updates." Third, you can run this command: update.packages().

When you finish working in R, you may want to unload or remove packages that you won't use again soon. By default, R unloads all packages when it quits. If you want to unload them before then, you have two options. First, you can go to the Packages tab in RStudio and uncheck the packages one by one. Second, you can use the detach() command, like this: detach("package:ggplot2", unload = TRUE).[3]

If you would like to delete a package, use remove.packages(), like this: remove.packages("psytabs"). This trashes the packages. If you want to use a deleted package again you will need to download it and reinstall it.

R’s datasets package

The built-in package "datasets" makes it easy to experiment with R's procedures using real data. Although this package is part of R's base installation, you must load it. You can either select it in the Packages tab or enter library("datasets") or require("datasets"). You can see a list of the available data sets by typing data() or by going to the R Datasets Package list.

For more information on a particular data set, you can search R help by typing ? and the name of the data set with no space: ?airmiles. You can also see the contents of the data set by entering its name: airmiles. To see the structure of the data set, use str(), like this: str(airmiles). That will show you what kind of data set it is, how many observations and variables it has, and the first few values.

If you are ready to work with the data set, you can load it with data(), like this: data(airmiles). It will then appear in the Environment tab in the top right of RStudio.

R’s built-in data sets are a wonderful resource. You can use them to try out different functions and procedures without having to find or enter data. We’ll use these data sets in every chapter of this book. I suggest that you take a little while to look through them to see what may be of interest to you.

Entering data manually

R is flexible in that it allows you to get data into the program in many different ways.

The simplest—but not always the fastest—is to enter the data right into R. If you only have a handful of values, then this method might make sense.

If you want to create patterned data, you have two common choices. First, the colon operator : creates a set of sequential integer values. For example:

Gives this ascending list:

Or, by placing the larger number first, as shown here:

Then R will create a descending list:

Another choice for patterned data is the sequence function seq(), which is more flexible.

You can choose the step size:

This size yields the following:

Or you can choose the list length:

Which gives you:

You can also feed any of these functions into a new variable. Just declare the variable name and put the assignment operator before the function, like this:

If, instead, you have real data that are not sequenced, you can enter them into R two ways. First, you can use the concatenate function c() as mentioned earlier. For example:

Second, you can enter the numbers in the console using the scan() function. After calling this function, go to the console and type one number at a time. Press return after each number. When you finish, press return twice to send the data to the variable.

In my experience, it only makes sense to enter data into R if you have sequential data or toy data. For a data set of any real size, it is almost always easier to import the data into R, which is what we will discuss next.

Importing data

An enormous amount of data resides in spreadsheets. R makes it easy to import such data, with some important qualifications. Many people also have data in statistical programs such as SPSS or SAS. R is also able to read that data, but again with an important qualification.

Avoid native files from Excel or SPSS

Don't try to import native Excel spreadsheets or SPSS files. While there are packages designed to do both of these, they are often difficult to use and they can introduce problems. The R website[4] says this about importing Excel spreadsheets (emphasis added):

The most common R data import/export question seems to be “how do I read an Excel spreadsheet” … The first piece of advice is to avoid doing so if possible! If you have access to Excel, export the data you want from Excel in tab-delimited or comma-separated form, and use read.delim or read.csv to import it into R … [An] Excel .xls file is not just a spreadsheet: such files can contain many sheets, and the sheets can contain formulae, macros and so on. Not all readers can read other than the first sheet, and may be confused by other contents of the file.

Many of the same problems apply to SPSS files. The good news is that there is a simple solution to these problems.

Importing CSV files

The easiest way to import data into R is with a CSV file, or comma-separated values spreadsheet. Any spreadsheet program, including Excel, can save files in the CSV format. Statistical programs like SPSS can do this, too.[5] Then, to read a CSV file, use the read.csv function. You will need to specify the location of the file and whether it has a header row for variable names. For example, on my Mac, I could import a file named "rawdata.csv" from my desktop this way:

A similar process can read data in tab-delimited TXT files. The differences are these: First, use read.table instead of read.csv. Second, you may need to be explicit about the separator, such as a comma or a tab, by specifying that in the command. Third, if you have missing data values, be sure to specify an unambiguous separator for the cells. If your separators are tabs, then use the command sep = \t, as in this example:

R and its available packages offer a variety of ways to get data into the program. I have found, though, that it is almost always easiest to put the data into a CSV file and import that. But regardless of how you get your data into R, now you are ready to begin exploring your data.

Converting tabular data to row data

One important question to ask right away is whether your data are in the right format for your analyses. This is most important for categorical data, because it is possible to collapse the data into frequency counts. An excellent example is the built-in R data set UCBAdmissions. This data set describes outcomes for graduate admissions at UC Berkeley in 1973. These data are important because they formed the basis of a major discrimination lawsuit. They are also a perfect example of Simpson's Paradox[6] in statistics. Before we take a look at the code, I should explain two things.

First, tabular data are data that can be organized into tables with rows and columns of frequencies. For example, you could create a table that showed the popularity of several Internet browsers. That table would have just one dimension or factor: which browser was installed. You could then add a second dimension that broke down the data by operating system. The browsers would be listed in the columns and the operating systems would be listed in the rows. This would be a two-way table, or cross-tabulation. The numbers in each cell of the table would give you the number of cases that matched that combination of categories, such as the number of Windows PCs running IE or the number of Android tablets running Chrome. It is, of course, possible to add more variables, which would usually be shown as separate panels or tables, each of which would have the same rows and columns. This is also the case in the UCBAdmissions data that we’ll use in this example. The data are arranged in rows and columns (or panels) to get “marginal” totals, which are more often just called “marginals.” These marginals are the totals for one or more variables summed across other variables. So, for example, in our hypothetical table of browsers and operating systems, the marginal for browsers would be the total number of installations of each browser, ignoring the operating systems. In a similar manner, the marginals for the operating system would give the total number of installations for each OS, ignoring the browser. The marginals are important because they are often of greater interest than the data at maximum dimensionality (i.e., where all of the dimensions or factors are broken down to their most detailed level).

Second, I am going to use two plotting commands in this example—barplot() and plot()—and the next on color that I have not yet presented. Right now I am using them to demonstrate other principles but I will explain them fully in the next chapter on graphics.

The code for this section is available in a single R file, sample_1_1.R, but I will break it into parts for readability.

Sample: sample_1_1.R

This code produces Figure 4, which is an unusual 3-way bar plot. We wanted a simple bar chart of the number of people who applied to each of the six departments, so this doesn't work.

4. Default Plot of UCBAdmissions

The next step is to get the marginal frequencies from the 3-way table. At this point, the frequencies are just displayed in the console.

Next we save the marginal frequency for department, as this has the data we need for the chart.

However, further analyses need the data to be structured as one row per person. We can do that by converting from a table to a data frame to a list to a data frame.

It is also possible, though substitution, to do the entire conversion in one long command:

The commands above show one way to organize data into the structure that will be most useful for analysis. In other situations different approaches will be more helpful, but this gives you a useful idea of what you can do in R.

Color

When you make graphs in R, you should consider your design decisions. Factors like layout and color can make or break visualizations. Consider a bar chart made with R’s default colors.

Sample: sample_1_2.R

The following command uses the default colors.

5. Bar Chart with Default Colors

We could improve Figure 5 by changing the colors of the bars using the col attribute in the barplot function. R gives us several methods to specify colors.

R has names for 657 colors, arranged in alphabetical order (except for white, which is first on the list). You can see a text list of all the color names by entering colors(). You can also see a PDF with color charts here. If I want to change the bars to slategray3, I can do this in several ways:

• Color name: slategray3.
• Color location in list: slategray3 is index number 602 in the vector of colors.
• RGB hex codes: According to this Stowers Institute chart, slategray3 is #9FB6CD
• RGB color on a 0-255 scale: Use col2rgb("slategray3")  to get 159, 182, and 205 or see the values on the previous PDF. You must specify 255 as the maximum value.
• RGB color on a 0-1 scale: Divide the previous values by 255 to get .62, .71, and .80.

You can then use these values in the col attribute:

Any of the previous commands will produce the chart in Figure 6.

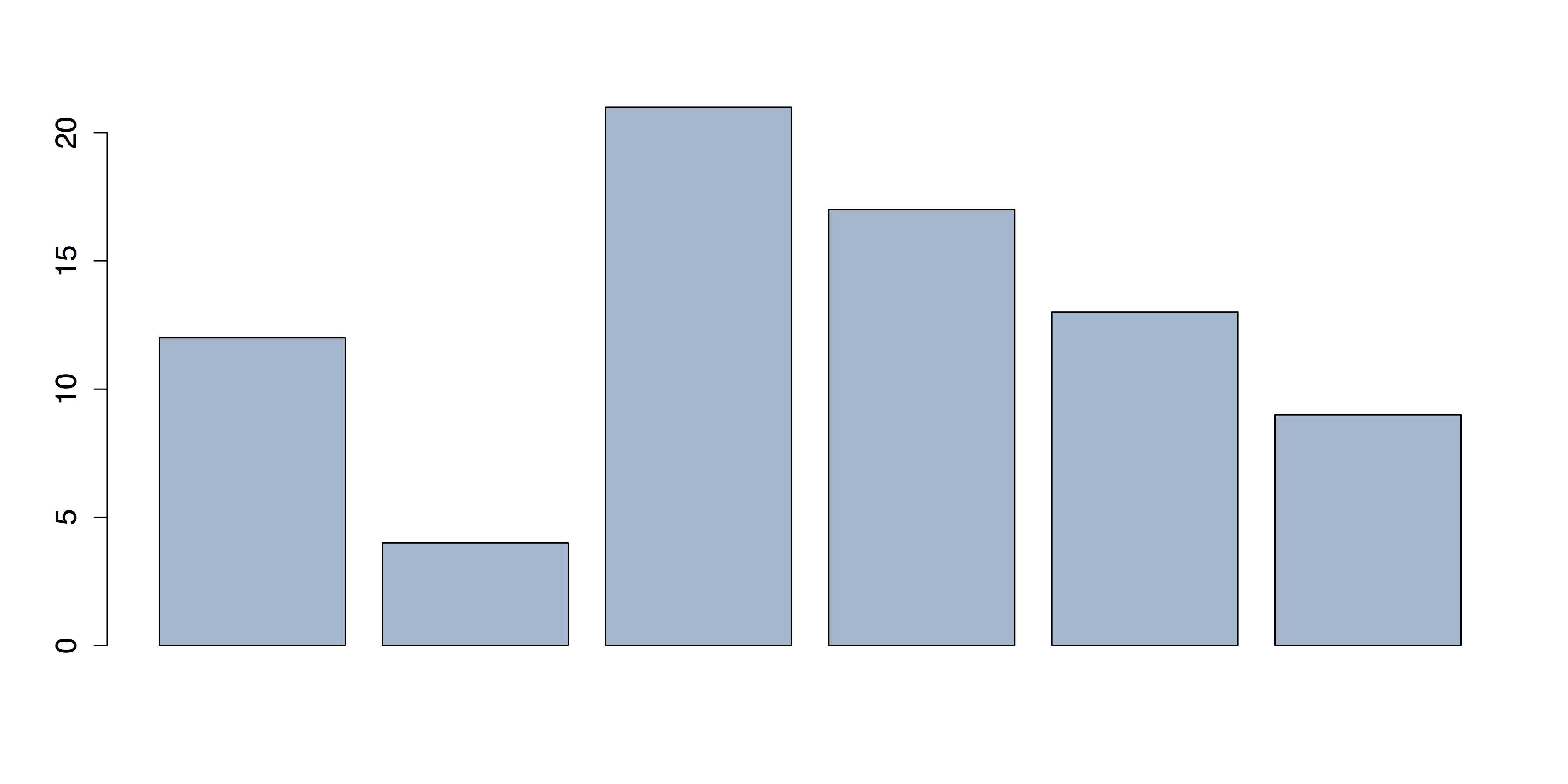

6. Colored Bar Chart

If you want to the bars to be different colors, then you can either specify the colors one at a time or you can use a color palette. To specify the individual colors, just use the concatenate function c() in the col attribute, like this: col = c("red", "blue"). You can use any of the color specification methods in the section. The colors will then cycle through for each of the bars.

A palette can give a wider range of colors, as well as colors that look better together. You can use R's built-in palettes by specifying the name of the palette and the number of colors you desire. Some of R's palettes are:

• rainbow: bright primary colors
• heat.colors: yellow through red
• terrain.colors: gray through green
• topo.colors: purple through tan
• cm.colors: blues and pinks

Run the command ?palette for more information on R’s built-in palettes.

To use the topo.colors palette for the six bars, you would enter the following:

The output of the previous code is shown in Figure 7.

7. Bar Chart with the R Palette “topo.colors”

An attractive alternative to R's palettes is the package RColorBrewer. This package derives from the excellent website ColorBrewer 2.0.[7] RColorBrewer provides several palettes of sequential, diverging, and qualitative colors. To use RColorBrewer, you must first install it and load it in R:

I encourage you to explore the help information for RColorBrewer by entering help(package = "RColorBrewer"). You can see all the available palettes by entering display.brewer.all(). This produces Figure 8. (The overlapping labels are due to the landscape aspect ratio.)

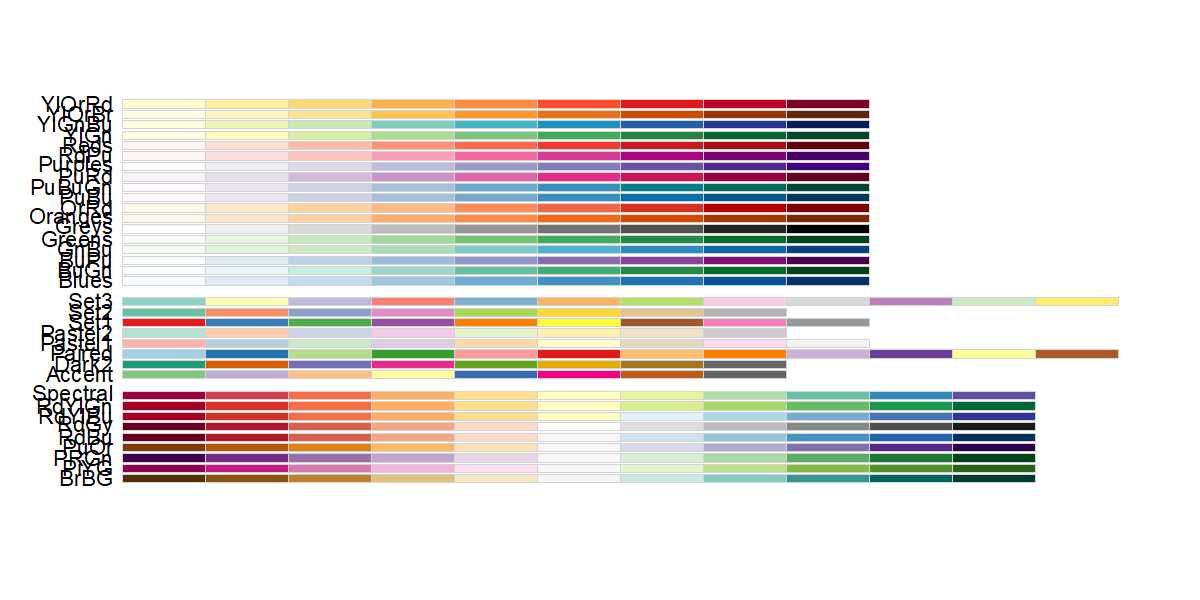

8. All RColorBrewer Palettes

You can get a better view of an individual palette by specifying the palette and the number of colors desired, like this: display.brewer.pal(8, "Accent"). Figure 9 illustrates this palette.

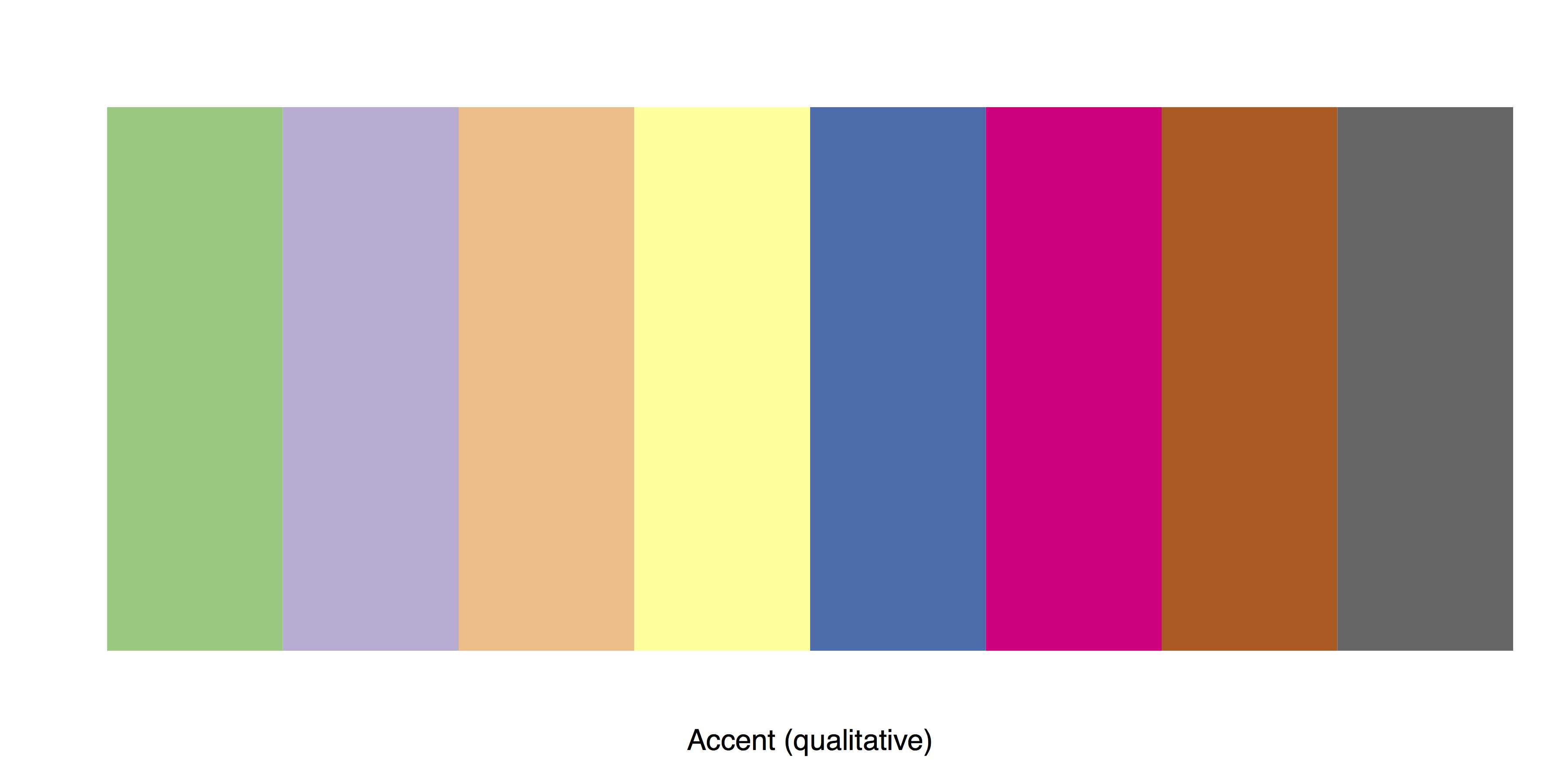

9. Preview of the RColorBrewer Palette “Accent”

To apply an RColorBrewer palette to a bar chart, call brewer.pal in the col attribute. Also specify the palette and the number of colors desired.

This command produces Figure 10.

10. Bar Chart with RColorBrewer Palette

When you finish, it is a good idea to restore the default palette and clean up:
