Creating a Real-time Application

---

In this chapter, we will create an application that will talk with Bitbucket and receive event notification data. We will then work with the received data.

Introduction

We will create an application that will listen to our Bitbucket repository to get notifications. Our application will then:

• Receive notification using the handler class
• Store received data
• Display data using Web API

Prerequisite

Here are the prerequisites for continuing with the sample application:

• Basic knowledge of ASP.NET WebHooks (including WebHook receivers, handlers, etc.)
• Visual Studio 2015
• Basic knowledge of MVC5, WebAPI, and JQuery
• SQL Server 2008 R2 or later
• A valid Azure subscription
• Basic knowledge of AngularJS
• Basic knowledge of Bootstrap
• Basic knowledge of Entity Framework

Application: architecture and design

In this section we will discuss the architecture and design of the application we want to build. This includes how our application will interact with the Bitbucket repository, and what technologies and frameworks we are going to use in this application.

Figure 16: Overview of application

Figure 16 shows an overview of our application. Our main application will contain Restful APIs (Web API) and will be hosted on Azure as App Services. This API application will talk with the SQL Server Database hosted on Azure itself. These APIs can then be consumed by any client (desktop, web or mobile). In this sample, we are only going to develop a web client using AngularJS.

Note: RESTful is short form of “Representational state transfer,” and RESTful APIs or RESTful Webservices provide a way to access services in a manner of stateless operations.

We can divide the preceding figure into three parts:

Database

This part of application is important to persist all the application activities. Here we will be using SQL Server database hosted on Azure. Furthermore, our database will be:

• Named: Activity (or name of your choice)
• Having table : ActivityModel (or name of your choice)

The database will be used to persist and retrieve all data received from Bitbucket repository.

API

This is the main part of our sample application. To make it simple and more flexible, we are using WebAPI2.0, and it is further divided into:

• Data access layer
• Business layer
• Repository classes
• Common classes
• Model entities

User Interface (UI)

This part represents a client application that will be consuming these APIs. Our client can be one of the following:

• Desktop application
• Web application
• Mobile application

To make our application simple, we will create a web application using MVC5 and AngularJS.

Creating the sample application

In Chapter 2, we created a sample application of BitbucketWebHook Receiver, where we discussed how our WebHook receiver receives the data from the Bitbucket repository. The scope for that application was just to showcase that the data was finally received.

In this section, we will discuss all the steps required to create a production application, and take it one step further by persisting the data received locally and making it available through a WebAPI.

New web application

To get started with this application, just create a simple WebAPI project using Visual Studio. You can also refer to Chapter 2 for help creating a WebAPI project.

Figure 17: Creating web project

We will name our new project ActivityTracker, select a location, and provide a suitable Solution name. Click OK once you’re done.

Select template

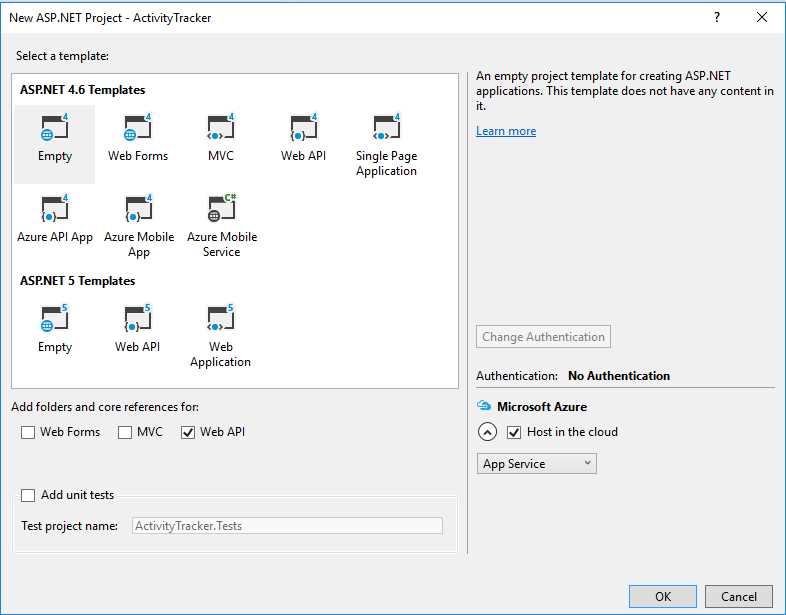

From the next screen, select an empty template and check the Web API checkbox, as shown in Figure 18.

Figure 18: Selecting a template

As we will be deploying this app to Azure, it’s good if you check the option Host in the cloud in the Microsoft Azure section. If you select this option, you will be be prompted to select an Azure app name and location. Please follow all the steps. You can just click on Cancel if you don’t want to do this at the moment (we can publish it later).

Figure 19: Project structure

 Visual Studio will create an empty project, as shown in Figure 19.

Adding support of Bitbucket WebHook receiver

We have created an empty project, and now we need to add support for our Bibucket WebHook receiver to start collecting the data sent by Bitbucket.

Figure 20: Adding NuGet packages

Open NuGet Package Manager, and under the Browse tab, enter Microsoft.AspNet.WebHooks.Receivers.BitBucket. Check the Include prerelease option, and then install the NuGet package.

Adding Entity Framework support

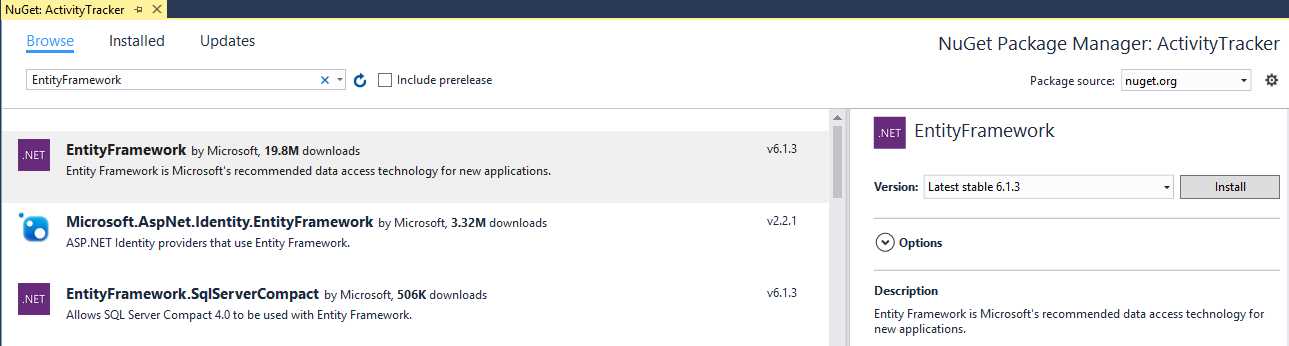

We are using Entity Framework to support our persistence models. Now, in the NuGet Package Manager dialog box, enter EntityFramework. Do not forget to uncheck the Include prerelease option.

Figure 21 Adding EntityFramework

Click on Install, and it will install EF6.1.3 to the project.

Now that we have met all basic framework requirements for our project, we are ready to write our code.

Note: We created an application and named it ActivityTracker. This application will show us our all activities (what we have configured for WebHook).

Start writing Handler class

Let us start to write code to our sample application.

From Visual Studio, open the Solution Explorer and the new folder WebHooks. Add a BitBucketWebhookHandler class to the application under the newly created folder. This class should inherit an abstract class, WebHookHandler.

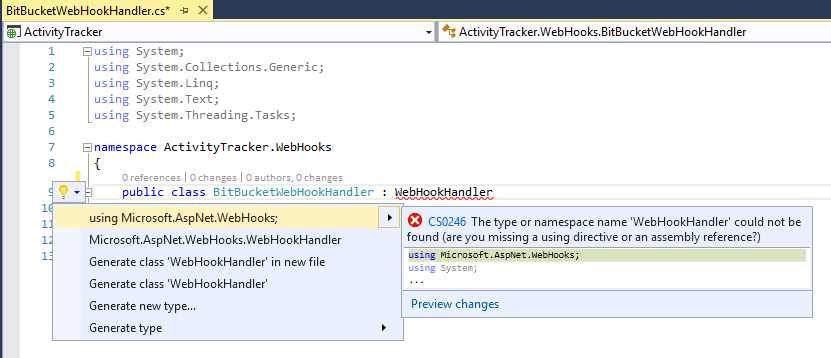

Figure 22: Missing namespace

Add required the namespace (Microsoft.AspNet.Webhooks) as shown in Figure 22, and implement its method (ExecuteAsync).

Note: We have already discussed the ExecuteAsync method in Chapter 2.

Implement the ExecuteAsync method to receive data from Bitbucket repository; the parameter WebHookhandlerContext contains all actions occurring during an operation. Action is a list of string. Always get First action, and then grab the data.

Code Listing 6

In Code Listing 6, we are evaluating action and implementing code based upon its value. Bitbucket has these pre-defined actions, such as repo:fork and repo:updated. Based upon the value of action received by us, we will perform some specific operations. If it does not match any of these conditions, then we will simply get the data and store it in a var data type.

Sometimes it can be erroneous when comparing hard-coded strings. As humans, we can somehow add spaces or truncate some words (for example, repo:fork could be repo:fork or rep : fork).

To avoid scenarios where we might create errors, we can go with:

• constants
• enums

If we go with constants, then we can have a constant class, which can look something like this:

Code Listing 7

With the use of constants, the ExecuteAsync method of our BitBucketWebHookHandler class would look like the following:

Code Listing 8

If we go with enum, then we can have an enum declaration, which goes something like this:

Code Listing 9

In Code Listing 9, we have created EnumRepository and declared all possible enums that fall in BitBucket Repository Events.

Note: Details of Bitbucket repository events can be found here.

We have created two custom attributes, EnumDisplayName and EnumDisplayCode, which represent a short description of enum and an action of the Bitbucket repository event. We will use these EnumDisplayCode to analyze the WebHookHandlerContext action.

In Code Listings 10 and 11, we will see how these attributes look, and how we can get the values of these attributes.

Code Listing 10

Code Listing 11

These custom attribute classes simply contain the properties DisplayName and DisplayCode. Both classes are inherited from System.Attribute, and their usage is set for all targets.

Note: For more details regarding attributes, refer here.

We have created custom attributes, but to access these attributes we need to write some custom code. Our best bet to access attribute values is by using reflection. To achieve this, I have written a helper class. In order to access the attribute values, we would have two methods: one to access DisplayName, and another to access DisplayCode.

We won’t go into great detail for this class as a whole, but we will cover these two methods in detail.

Note: The complete source code is available here.

Code Listing 12

This method is accepting enumeratedValue and enumProp and finding the custom attribute. It then calls another method GetEnumDisplay(enumProp, attribArray) to display the value.

Code Listing 13

EnumProp is nothing but another enum that contains two enums: DisplayName and DisplayCode.

Code Listing 14

GetCustomAttributes() first locates the value of DisplayName, and if it is not found, it then gets the custom attribute using the reflection method GetCustomAttributes(), and returns an object array.

Code Listing 15

The GetEnumDisplay() method is getting a DisplayName or a DisplayCode as per enumProp, and it returns an empty string in case of no match. There might be cases where the provided custom attribute name is actually not available; in such conditions we will get an empty string, which is by design.

We have seen that it will make our code easier to read and understand if we go with either a constant or an enum.

In our application, I will go with enum. The reason I prefer to go with enum is that our customized attribute will give us more facility while we will work with either action or dataobject in our BitBucketWebHookHandler. With the help of the helper class and extension methods, we can easily access the custom attribute as per our need.

Our BitBucketWebHookhandler class would look like Code Listing 16, when we are using this for Repository events.

Note: There are different approaches to achieve this; we will discuss a few in coming sections.

Code Listing 16

Now, our BitBucketWebHookHandler class looks neat and clean, and we can easily go to an enum and read its description. In every case, we can also use our EnumHelper class for various operations.

Before going any further, let us draft out what we want to do with the data. Our data is nothing but some information that our WebHook received via WebHookHandlerContext.

Entity framework: Using code-first approach

We have already added Entity Framework support to our project. Now the only thing remaining is to add few models, mapping, and persistence classes.

Under the folder Models, add a new class with the name ActivityModel. The model class looks like Code Listing 17:

Code Listing 17

Note: The validation attributes may cause validation errors in API method calls if the data passed in is longer than specified by the attributes, but the attributes are used to create the data model.

Setting up the repository

Before writing code for our repository, which will enforce the code-first approach, let’s add a connection string in the webconfig file. From the Solution Explorer, open the web.config file and add the connection string, as shown in Code Listing 18.

Code Listing 18

Note: We used SQL Express as a database, so we used a connection string of SQLServer. If you are using MySQL or any other database, you would be required to change connection string accordingly.

Now we are ready to write our repository classes. Open Solution Explorer and add a new folder, Persistance. Add a new class called ActivityContext, which should inherit from DbContext. Our context class would look like the following:

Code Listing 19

In our context, we passed connectionstring to let Dbcontext know about our database. We have also added one DbSet of our ActivityModel class.

To complete our repository classes, we also added IActivityRepository interface and a class ActivityRepository which implements the interface.

Rewriting the BitBucketWebHookHandler class

Our handler class is not persisting data. Let us rewrite our BitBucketWebHookhandler class so it will start persisting our data received from the Bitbucket repository. The new code would look like the following:

Code Listing 20

In our new code, we have introduced a new class, ProcessActivities, and upon calling the Process method, our data will be persisted in our SQL Database.

Code Listing 21

Write APIController

The next step is to add write to our WebAPI controller (TrackerController) code to complete the Web API.

Code Listing 22

We are ready with two GET resources. One retrieves complete records from database, while another fetches records of a particular ActivityId.

We are done with our Web API, the next step is to create a client. As we discussed previously, we are going to create a web client using MVC5 and AngularJS. To achieve this, we need to follow these steps:

Wire up API using AngularJS

Add the MVC controller

Open Solution Explorer and right-click on the controllers folder, and add a new MVC controller called DashboardController. This task will add MVC5 support to our project. Now we just need to add the following code snippet to our config file.

Code Listing 23

Add AngularJS references

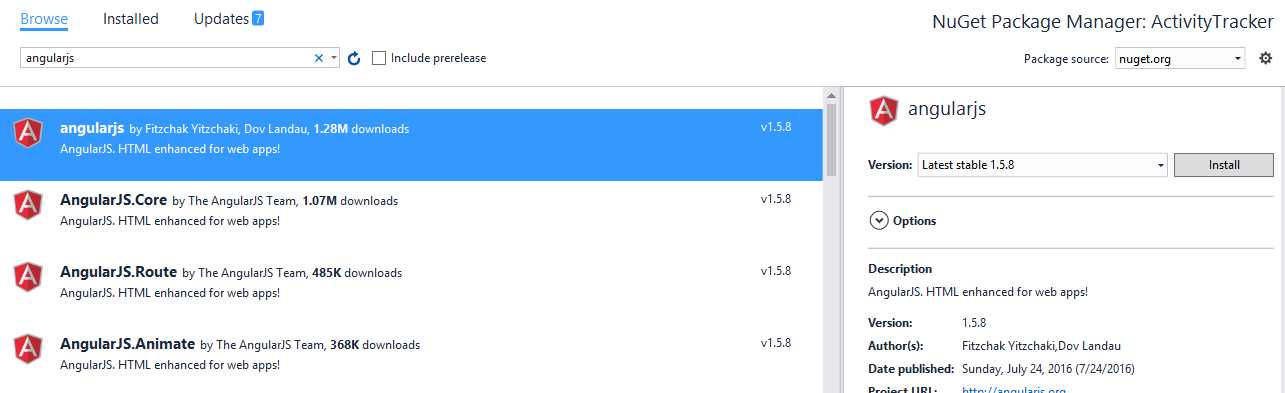

To start with angularjs, open the NuGet Package Manager and add the AngularJS NuGet packages:

Figure 23: AngularJS

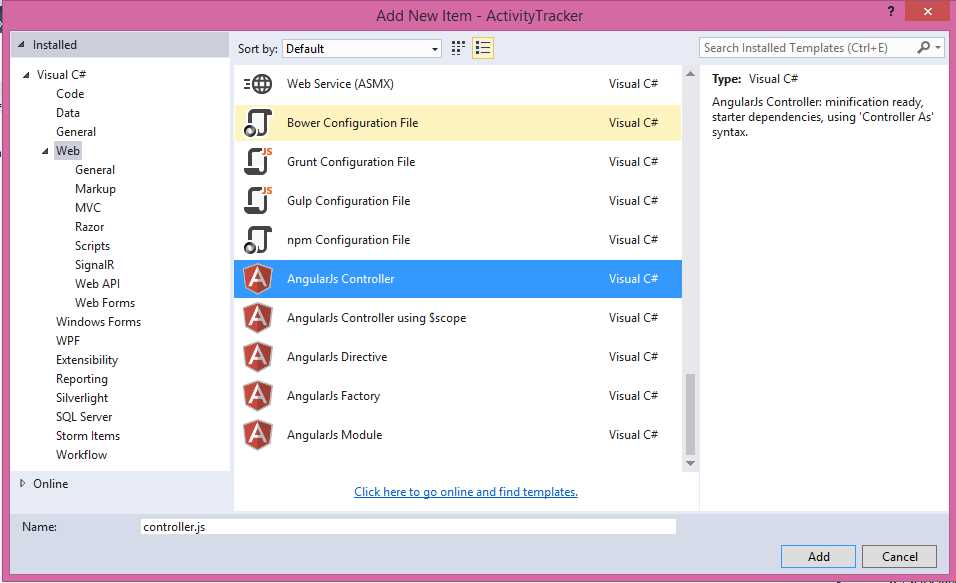

In Solution Explorer, open the new folder app in the scripts folder. Right-click the folder and add a new item from the New Item dialog box, and select the angularjs controller.

Figure 24: Adding AngularJS controller

Wire up the API call

Now add AngularJS services, and name it service.js. Then add this code to the js file:

Code Listing 24

In our service.js file, we are just wrapping up our API calls in such a way that our getAll function will use the Web API resource api/Tracker.

Now, get back to our AngularJS controller and add code so that we can use it in our View.

Code Listing 25

In controller.js, we are calling the refreshGrid() function, which will fetch complete data from our database as soon as our application is initiated.

1. Add View

Add Razor view by right-clicking on the Index action method of DashboardController, and select Blank view. It adds the Index.cshtml view under the folder Dashboard of the Views folder. Add the following code to our view to initiate the data:

Code Listing 26

Our view represents a simple table, and we are using ng-repeat to bind our table with whole data.

2. Initialize WebHook controller

Open WebAPIconfig.cs and add following code:

Code Listing 27

This will initialize our Bitbucket WebHook receiver.

Note: Please make sure you have configured the Bitbucket repository to receive notifications and have added a secret key to your web.config file. Refer to Chapter 2 for more details.

1. Deploying to Azure

In Chapter 2, we explained how to publish an application over Azure—if you skipped this chapter, please refer back for more details.

2. Perform operation and validate results

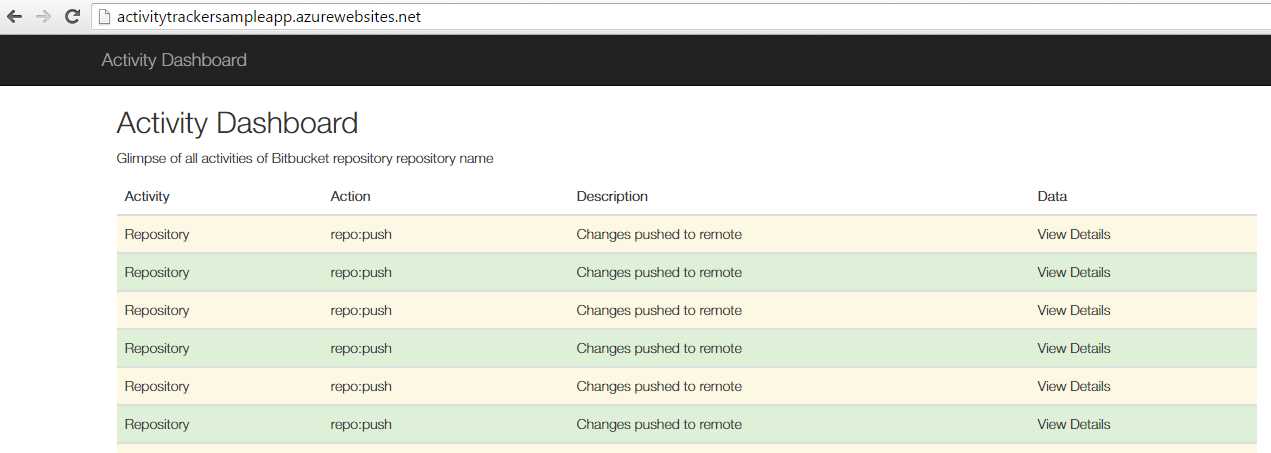

Go to your Bitbucket repository and perform a few actions to push changes, create an issue, etc. If you have configured everything correctly, you will get the result on your index page.

Figure 25: Activity Dashboard

Conclusion

In this chapter we have developed a real-time application using the Bitbucket Webhook Receiver. There is no limit to the ways you can extend the application. To keep it simple, we will just save the data to our database and display it in a table using MVC5 and AngularJS.
