VisibleMinimum and VisibleMaximum always null

[Julien Torrent]

Hi,

I have set a DateTimeAxis on my chart.

But when I try to use ActualRangeChanged, the VisibleMinimum and VisibleMaximum are always null.

Is there something I do wrong or is the issue on your side ?

Thanks

Attachment: App1_6b600870.zip

[Prabakaran R]

Hi Torrent,

Please get the actual range from ActualMinimum and ActualMaximum properties. If you would like change visible range based on the actual range, use the VisibleMinimum and VisibleMaximium properties.

Thanks,

Prabakaran.

[Julien Torrent]

Hi,

The actualMaximum and ActualMinimum return the values for all the data in the graph.

What I want is to get the maximum and minmum values that are visible on the graph (should be VisibleMaximum and VisibleMinimum).

Dosen't work either when I set ZoomPosition and ZoomFactor. Like the documentation says.

How can I get thoses values ?

Thanks

[Divya Venkatesan]

Hi Torrent,



We achieved your requirement to get the visible range using DependencyService. Please download the sample from the following link.



Sample: https://www.syncfusion.com/downloads/support/forum/136802/ze/ChartSample16213130



Please let us know if you need any further assistance.



Regards,

Divya Venkatesan



[Julien Torrent]

Hi,

I have tried your sample. The problem is that it return the previous value.

For example when I launch the app the axis range is 31/12/17 to 10/01/18.  But when I zoom to  01/01/18 to 09/01/18, it gives me the values before the zoom. (31/12/17 and 10/01/18) . But I want to get the 01/01/18 to 09/01/18.

I want to know if it is possible to get the value at the end of the zoom ?

Thanks

[Divya Venkatesan]

Hi Torrent,



We have analyzed the reported issue with our sample and the sample working fine. Can you please check with the sample in the following location? If still you face the problem, please revert us by modifying the sample based on your application along with replication procedure, SfChart version and Xamarin.Forms version. This would be helpful for us to serve you.

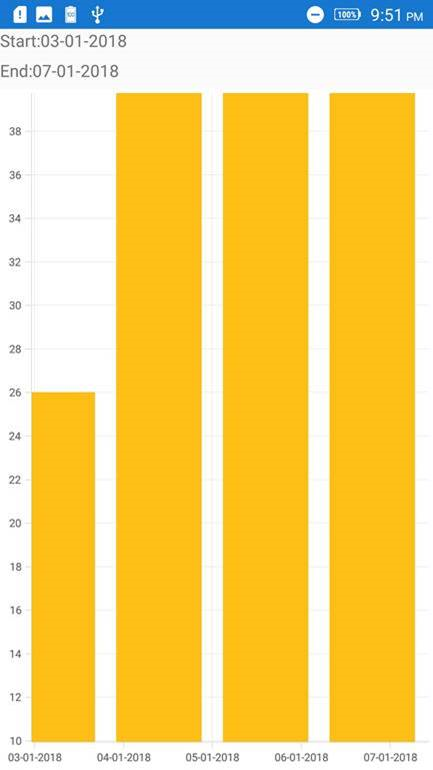

Output:





Sample: https://www.syncfusion.com/downloads/support/forum/136802/ze/ChartSample-57090522



Regards,

Divya Venkatesan

[Julien Torrent]

Hi,

The problem is when I load the data with the button, the event is not triggered. ( I think it sould be trigerred as the visiblerange has changed )

If you load the data, zoom in then double click to reset. You can see that it return the previous value.

Thanks

Attachment: ChartSample_2ca496e2.zip

[Julien Torrent]

Hi,

The problem is in your sample too.

I have added a short video to show the problem. You can clearly see that it returns me the previous value.

Thanks

Attachment: ZoomAlwaysPrevious_4d454f.zip

[Muneesh Kumar G]

Hi Torrent,



Sorry for the inconvenience caused.



We achieved your requirement by calculating the visible range from axis actual range by using axis ZoomFactor and ZoomPosition property. We have modified our sample based on this, please download the sample from the following link.



Sample: https://www.syncfusion.com/downloads/support/forum/136802/ze/ChartSample812654669



Please let us know if you need any further assistance.



Regards,

Muneesh Kumar G.
