Get Started with JavaScript Stock Chart

Overview

Stock charts are mostly used to track and visualize a stock’s price over a specific period of time using charting and ranging tools. In this blog, we are going to have a look at the elements of a stock chart and how to integrate the Syncfusion Stock Chart control in your JavaScript application.

What is Stock Chart?

There are a variety of elements used in a stock chart for different purposes. Let’s have a look at the individual elements and their purposes.
Elements of a Stock Chart

Elements of a Stock Chart

1. Period selector

The period selector allows you to choose predefined time periods, typically days, weeks, months, quarters, half year, and years, to check the trends for different time spans before investing.

2. Chart area

The chart area visualizes the data of the stock. Here, a candle chart is used to represent the open price of the stock at the start of the day, the highest and lowest prices during the day, and the closing price at the end of the day.

3. Range selector

The range selector allows you to select ranges from the larger collection to spot trends in the price within the selected range.

4. Series

The series allows you to select different types of charts to visualize the data. The Syncfusion Stock Chart supports the following types of charts:

  • Line and spline—Help visualize the closing price of a stock.
  • Hilo—Plots the high and low values of a stock during the specific time periods.
  • OHLC and candle—Plot the open, close, high, and low values of a stock.

5. Indicators

Technical indicators are used to analyze past and predict future market trends based on historic price, volume, or open interest. Syncfusion’s Stock Chart supports 10 different types of indicators.

6. Volume

The volume of stock is usually associated with a bar chart. The higher the bar value, the more people involved in the stock in the specific time period.

How to integrate Syncfusion Stock Chart in a web application

Let’s create a stock chart to visualize and compare the stock prices of AAPL. The Stock Chart control can be configured in TypeScript as follows:

    1. Clone the Essential JS 2 quick-start seed repository and configure the necessary package in the config.js file.
      "@syncfusion/ej2-base": "syncfusion:ej2-base/dist/ej2-base.umd.min.js",

      "@syncfusion/ej2-data": "syncfusion:ej2-data/dist/ej2-data.umd.min.js",

      "@syncfusion/ej2-charts": "syncfusion:ej2-charts/dist/ej2-charts.umd.min.js",

      "@syncfusion/ej2-popups": "syncfusion:ej2-popups/dist/ej2-popups.umd.min.js",

      "@syncfusion/ej2-buttons": "syncfusion:ej2-buttons/dist/ej2-buttons.umd.min.js",

      "@syncfusion/ej2-pdf-export": "syncfusion:ej2-pdf-export/dist/ej2-pdf-export.umd.min.js",

      "@syncfusion/ej2-file-utils": "syncfusion:ej2-file-utils/dist/ej2-file-utils.umd.min.js",

      "@syncfusion/ej2-compression": "syncfusion:ej2-compression/dist/ej2-compression.umd.min.js",

      "@syncfusion/ej2-navigations": "syncfusion:ej2-navigations/dist/ej2-navigations.umd.min.js",

      "@syncfusion/ej2-calendars": "syncfusion:ej2-calendars/dist/ej2-calendars.umd.min.js",

      "@syncfusion/ej2-lists": "syncfusion:ej2-lists/dist/ej2-lists.umd.min.js",

      "@syncfusion/ej2-inputs": "syncfusion:ej2-inputs/dist/ej2-inputs.umd.min.js",

      "@syncfusion/ej2-svg-base": "syncfusion:ej2-svg-base/dist/ej2-svg-base.umd.min.js",

      "@syncfusion/ej2-splitbuttons": "syncfusion:ej2-splitbuttons/dist/ej2-splitbuttons.umd.min.js"
    2. Install the NPM packages by using the following command.
      npm install
    3. Add the HTML input element that needs to be initialized as a component in the index.html file.
    4. Initialize the component in the ts file as shown in the following code.
      import { StockChart } from '@syncfusion/ej2-charts';

      // initialize stockchart component
      let chart: StockChart = new StockChart();

      // render initialized stock chart
      chart.appendTo('#container');

Populating stock chart with data

Now we need to populate the stock details of AAPL in the chart. We are going to visualize the data using a candle chart, so import and inject the CandleSeries into the Stock Chart component using the StockChart.Inject method.

 import { StockChart } from '@syncfusion/ej2-charts';
 import { StockChart, CandleSeries, DateTime } from '@syncfusion/ej2-charts';
 StockChart.Inject(CandleSeries, DateTime);

Then, add JSON data for the stock price to your application and assign it to the dataSource property in the series. Here, the data about the AAPL is used, and the complete set of data can be found in the sample.

  let stockchartData: any[] = [{
    x: new Date('2012-04-02'),
    open : 85.9757,
    high : 90.6657,
    low : 85.7685,
    close : 90.5257,
    volume : 660187068
  },
  {
    x: new Date('2012-04-09'),
    open : 89.4471,
    high : 92,
    low : 86.2157,
    close : 86.4614,
    volume : 912634864
  },
  {
    x: new Date('2012-04-16'),
    open : 87.1514,
    high : 88.6071,
    low : 81.4885,
    close : 81.8543,
    volume : 1221746066
  },
  {
    x: new Date('2012-04-23'),
    open : 81.5157,
    high : 88.2857,
    low : 79.2857,
    close : 86.1428,
    volume : 965935749
  },
  {
    x: new Date('2012-04-30'),
    open : 85.4,
    high : 85.4857,
    low : 80.7385,
    close : 80.75,
    volume : 615249365
  }];

let chart: StockChart = new StockChart({
    series:[{
        // dataSource for stockchart series
        dataSource: stockchartData,
        type: 'Candle'
    }]
}, '#container);

Note: In this example, we have exported the data from a service and used it in the sample. You can directly get the data from the services for a chart through the dataManager.

After adding the series, the chart will appear as shown in the following screenshot.
JavaScript Stock Chart

JavaScript Stock Chart

How to visualize data about volume with stock chart

You can analyze both the price action and volume with merely a glance using the Stock Chart. Since we are going to show the volume in a separate row, we need to customize the axes and rows of the chart as follows.

let chart: StockChart = new StockChart({
    rows : [{height : '30%'}, {height : '70%'}],
    axes : [{
      name: 'yaxis', opposedPosition: true, rowIndex: 1,
    }],
    series:[
    {
        // dataSource for stockchart series
        dataSource: stockchartData,
        type: 'Candle', yAxisName: 'yaxis'
    },{
        // dataSource for stockchart series
        dataSource: stockchartData,
        type: 'Column', yName: 'volume'
    }
  ]
}, '#container);

Import and inject the ColumnSeries module into the stock chart, as we are going to visualize the volume data with the column series.

import { StockChart, CandleSeries, ColumnSeries } from '@syncfusion/ej2-charts';
StockChart.Inject(CandleSeries, ColumnSeries);

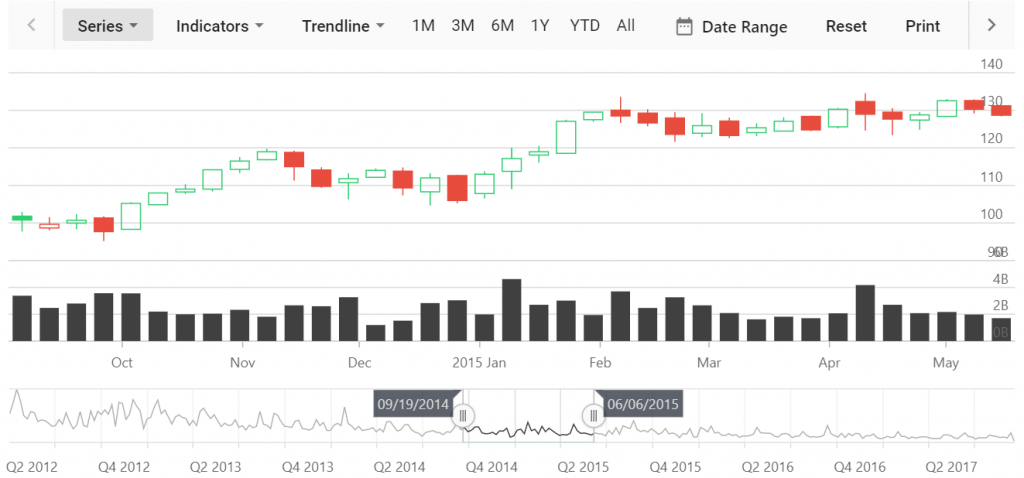

A candlestick chart for volume will appear as shown in the following screenshot.

Candlestick chart for volume

Candlestick chart for volume

Period and range selector

Select and view data for specific periods of time using predefined time periods and custom ranges in the period selector. You can define your own time periods using the periods property in the stock chart. The period selector includes options to add indicators, trendlines, and different series types, and to export the stock chart. The visibility of the period selector can be toggled using the enablePeriodSelector property. By default, the period selector will be enabled.

let chart: StockChart = new StockChart({
     periods: [
            { intervalType: 'Month', interval: 1, text: '1M' },
            { intervalType: 'Month', interval: 3, text: '3M' },
            { intervalType: 'Month', interval: 6, text: '6M' },
            { intervalType: 'Years', interval: 1, text: '1Y', selected: true },
        ],
}, '#container);

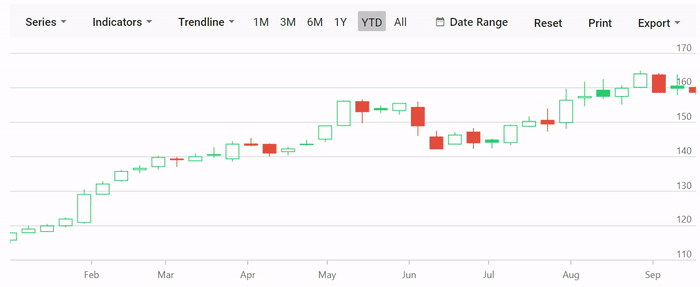

Period Selector in Stock Chart

You can filter a data range for data that needs to be visualized using the range selector. Toggle the visibility of the range selector using the enableSelector property. By default, the range selector will be enabled.

Range selector in Stock Chart

Tracking data on interaction with the chart

You can hover over any region in the chart to display the stock value of the company with the help of tooltips. You can also zoom in and out the chart using the mouse wheel to view the data.

let chart: StockChart = new StockChart({
    series:[
    {
        // dataSource for stockchart series
        dataSource: stockchartData,
        type: 'Candle'
    }
  ],
   tooltip: {
      enable: true
   },
   crosshair: {
      enable: true, lineType: 'Vertical'
   }

}, '#container);

Import and inject the tooltip and crosshair modules into the stock chart.

import { StockChart, CandleSeries, ColumnSeries, Tooltip, Crosshair } from '@syncfusion/ej2-charts';
StockChart.Inject(CandleSeries, ColumnSeries, Tooltip, Crosshair);

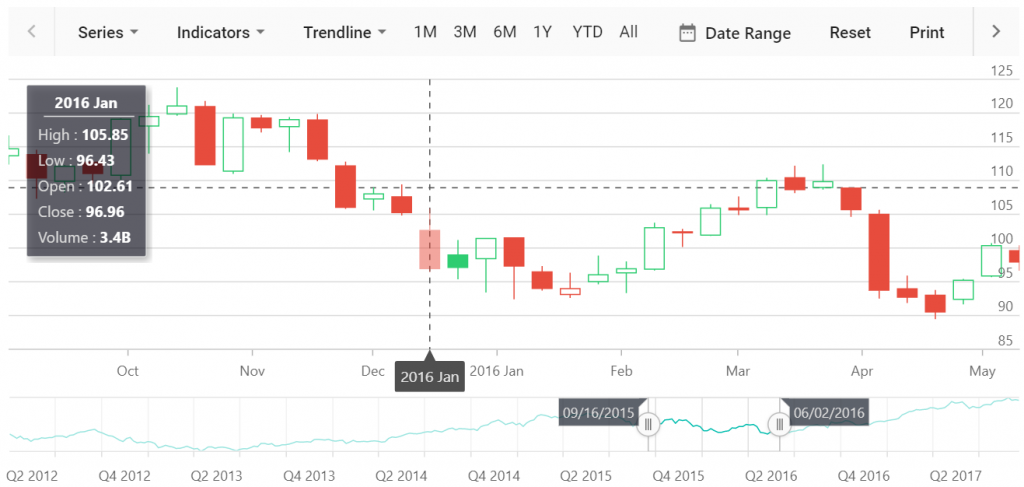

Stock chart interaction

Add title

Specify the appropriate title in the chart to provide quick information about the data. This can be done using the title property.

let chart: StockChart = new StockChart({
 title: 'APPL Stock Price'
}, '#container);

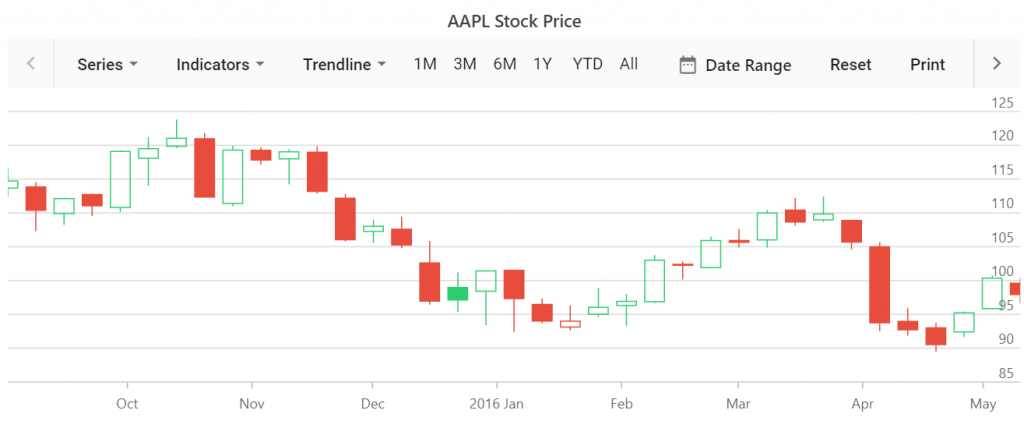

stock chart title

Conclusion

We hope you will find the Stock Chart component user-friendly and look forward to you trying it out. You can find the Essential JS 2 install download link on our website. Also, you can check out the stock chart source on GitHub. Please take a look at our live demos in our sample browser, and customization features in our documentation.

The JavaScript Stock Chart component is also available for the ReactAngularASP.NET Core, and MVC frameworks, built from their own TypeScript libraries.

If you wish to send us feedback or would like to ask any questions, please feel free to post in the comments section below, or contact us through our support forum, Direct-Trac, or feedback portal.
