Overview

The WinUI 100% Stacked Line Chart displays multiple series of data as stacked lines, ensuring that the cumulative proportion of each stacked element always totals 100%. Thus, the y-axis will always render within the range 0–100. This chart type is best suited for depicting the relative contribution of data points.

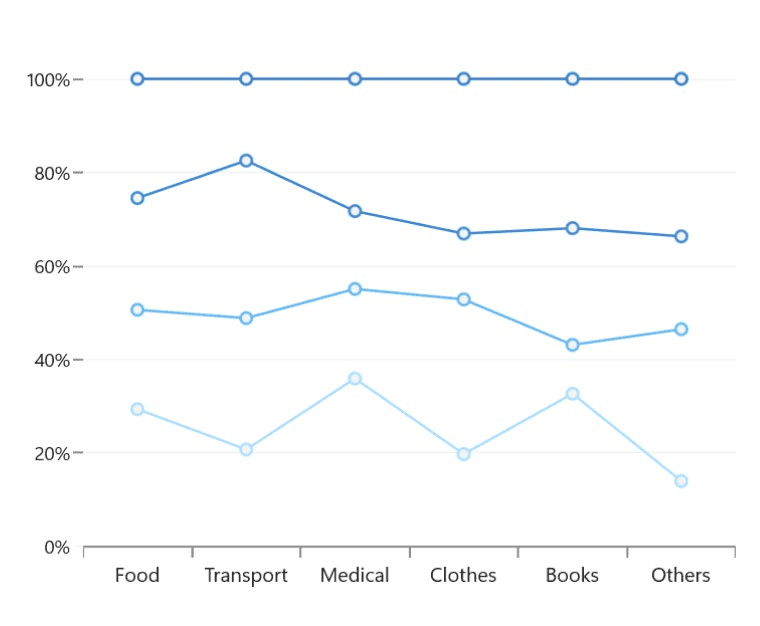

WinUI 100 Percentage Stacked Line Chart Documentation

WinUI 100 Percentage Stacked Line Chart


Key Features

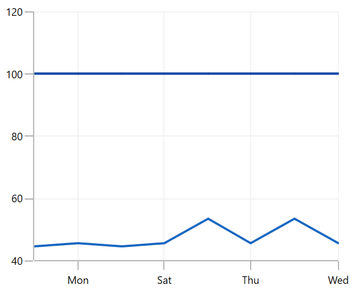

WinUI Grouped Stacked Line Chart

Grouped Stacked Chart

The WinUI 100% Stacked Line Chart allows grouping a series with another series separately using a different group name.

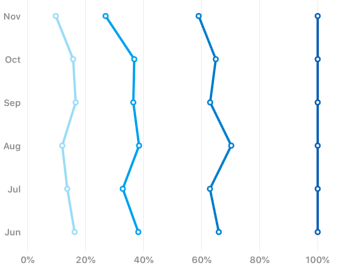

WinUI Vertical Stacked Line Chart

Vertical Chart

Rotate the 100% stacked line chart to plot data vertically and view data from a different perspective.

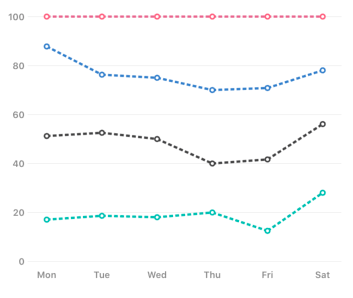

WinUI Stacked Line Chart with Customized Color and Line

UI Styling

Customize the color and dashes of the WinUI 100% Stacked Line Chart using built-in APIs to make it visually unique.

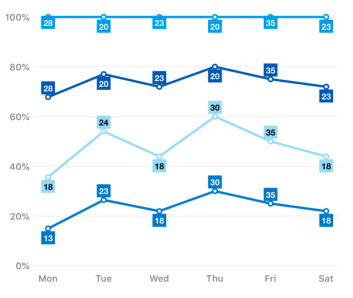

WinUI Stacked Line Chart with Data Labels

Data Labels

Data labels display information about the data points. Customize the labels’ foreground, border, and background. Template support to customize the default appearance with the desired view. Rotate a data label by its given angle.


Code Guideline

Easily get started with WinUI 100% Stacked Line Chart using a few simple lines of XAML and C# code, as demonstrated below.

<Window x:Class="ChartExample.MainPage"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:local="using:ChartExample"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:chart="using:Syncfusion.UI.Xaml.Charts"
        mc:Ignorable="d"
        Title="WinUI 100% Stacked Line Chart" Height="450" Width="700">

    <Grid>
        <chart:SfCartesianChart Height="300" Width="500">
            <!--Setting DataContext-->
            <chart:SfCartesianChart.DataContext>
                <local:ViewModel/>
            </chart:SfCartesianChart.DataContext>

            <!--Initialize the horizontal axis for the WinUI Chart-->
            <chart:SfCartesianChart.XAxes>
                <chart:DateTimeAxis/>
            </chart:SfCartesianChart.XAxes>

            <!--Initialize the vertical axis for the WinUI Chart-->
            <chart:SfCartesianChart.YAxes>
                <chart:NumericalAxis/>
            </chart:SfCartesianChart.YAxes>

            <!--Adding 100% Stacked Line Series to the WinUI Chart-->

            <chart:StackedLine100Series
                ItemsSource="{Binding Accidents}"
                XBindingPath="Month"
                YBindingPath="Bus">
            </chart:StackedLine100Series>

            <chart:StackedLine100Series
                ItemsSource="{Binding Accidents}"
                XBindingPath="Month"
                YBindingPath="Car">
            </chart:StackedLine100Series>

            <chart:StackedLine100Series
                ItemsSource="{Binding Accidents}"
                XBindingPath="Month"
                YBindingPath="Truck">
            </chart:StackedLine100Series>
        </chart:SfCartesianChart>
    </Grid>
</Window>
public class StackingLineChartModel
{
    public DateTime Month { get; set; }
    public double Bus { get; set; }
    public double Car { get; set; }
    public double Truck { get; set; }
}

public class ViewModel
{
    public ObservableCollection<StackingLineChartModel> Accidents { get; set; }

    public ViewModel()
    {
        this.Accidents = new ObservableCollection<StackingLineChartModel>();
        DateTime mth = new DateTime(2011, 1, 1);

        Accidents.Add(new StackingLineChartModel() { Month = mth.AddMonths(6), Bus = 3, Car = 4, Truck = 5 });
        Accidents.Add(new StackingLineChartModel() { Month = mth.AddMonths(7), Bus = 4, Car = 5, Truck = 6 });
        Accidents.Add(new StackingLineChartModel() { Month = mth.AddMonths(8), Bus = 3, Car = 4, Truck = 5 });
        Accidents.Add(new StackingLineChartModel() { Month = mth.AddMonths(9), Bus = 4, Car = 5, Truck = 6 });
        Accidents.Add(new StackingLineChartModel() { Month = mth.AddMonths(10), Bus = 7, Car = 8, Truck = 7 });
        Accidents.Add(new StackingLineChartModel() { Month = mth.AddMonths(11), Bus = 4, Car = 5, Truck = 6 });
        Accidents.Add(new StackingLineChartModel() { Month = mth.AddMonths(12), Bus = 7, Car = 8, Truck = 7 });
        Accidents.Add(new StackingLineChartModel() { Month = mth.AddMonths(13), Bus = 4, Car = 5, Truck = 6 });
    }
}

Learning Resources

Navigate to GitHub code used to configure the WinUI Stacked Line Graph

GitHub Code

Explore the WinUI 100% Stacked Line Chart example from GitHub to learn how to render and configure charts.

Navigate to the options available in the user guide to customize the WinUI Stacked Line Graph

WinUI 100% Stacked Line Chart User Guide

Learn more about the available options to customize WinUI 100% Stacked Line Charts.

Navigate to the API reference documentation of the WinUI Stacked Line Graph

WinUI 100% Stacked Line Chart API Reference

Explore the WinUI 100% Stacked Line Chart APIs.
