React Scheduler Crud Django Mysql

Syncfusion React Scheduler CRUD Application with Django and MySQL database.

Pre-requisites

1. Python 3.6 or above
2. Django 3.0 or above
3. MySQL 5.7 or above
4. React 16.8 or above
5. Node 16.17 or above

Steps to run the project

1. Clone the repository
2. Run the following command to install the required packages

    pip install django-cors-headers
    pip install djangorestframework
    pip install pymysql
    pip install dj-database-url
    pip install mysqlclient


3. Go to the backend directory
4. Need to configure your database in the backend/scheduler/settings.py file

   DATABASES = {
        'default': {
            'ENGINE': 'django.db.backends.mysql',
            'NAME': 'Your database',
            'USER': 'Your username',
            'PASSWORD': 'Your password',
            'HOST': 'localhost',   # Or an IP Address that your DB is hosted on
            'PORT': '3306',
        }
    }


5. We need to create table in the mysql database. Run the following command to create the table

   python manage.py makemigrations

   python manage.py migrate


6. Now lets run the server

    python manage.py runserver


   you will see the server is running at http://127.0.0.1:8000/

7. Now open another terminal, on the root directory, run the following command to install the required packages

    npm install


8. Run the following command to start the react server

    npm run start


   you will see the react server is running at http://localhost:3000/

9. Now you can see the scheduler application running in the browser, and you can able to perform crud operations in the scheduler.

Output Preview

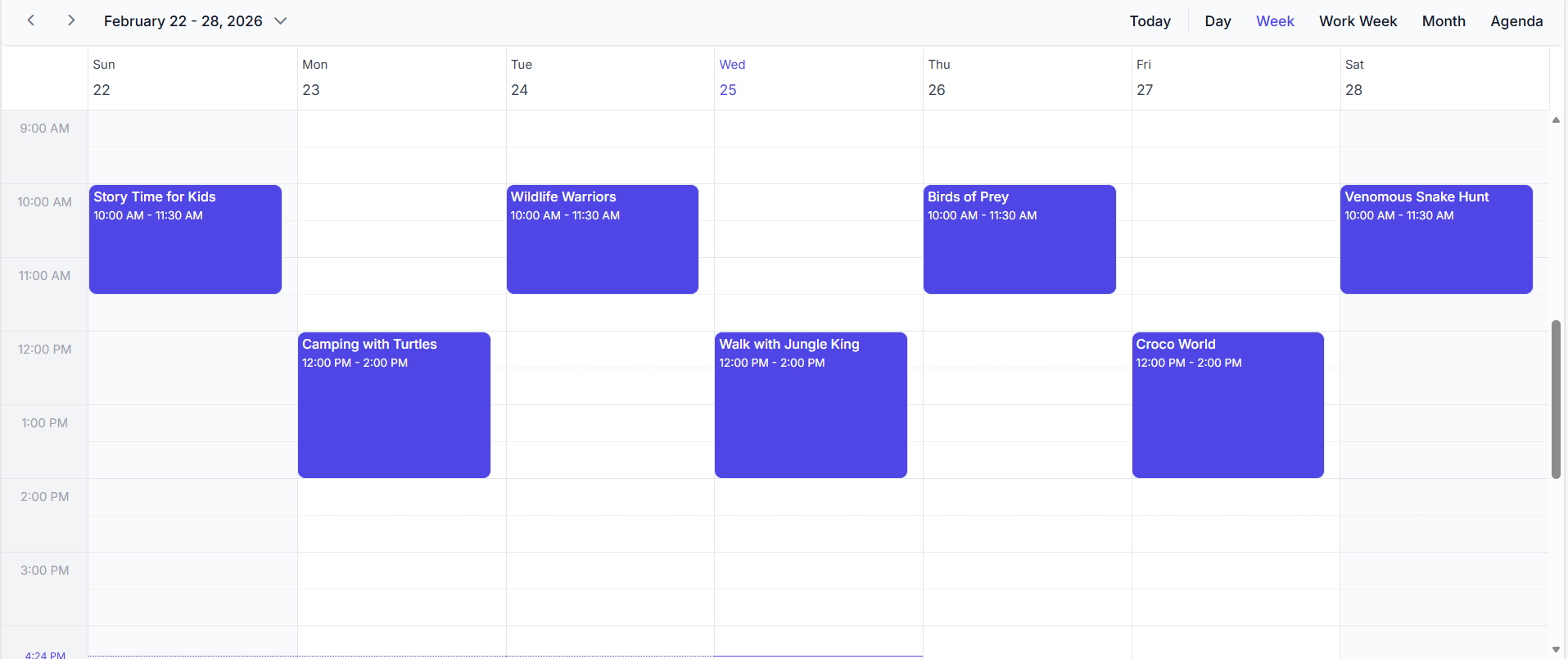

Image illustrating the Syncfusion React Scheduler

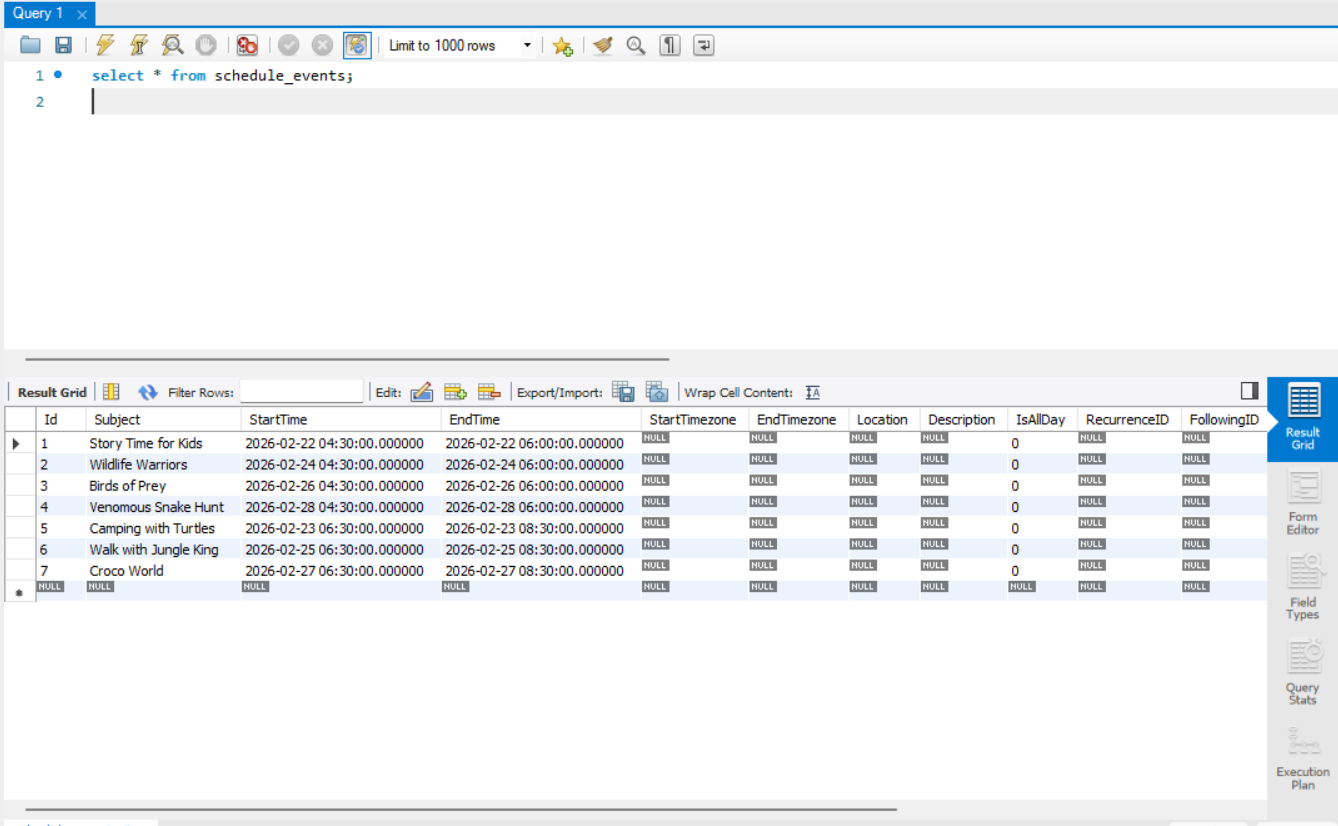

Image illustrating the events of Syncfusion React Scheduler in MYSQL

Troubleshooting

• 401 Unauthorized: Check NAME User and Password.
• CORS errors: Ensure the backend’s CORS configuration explicitly allows the frontend origin (e.g., http://localhost:3000).
