The connectors secondary loading position is out of order

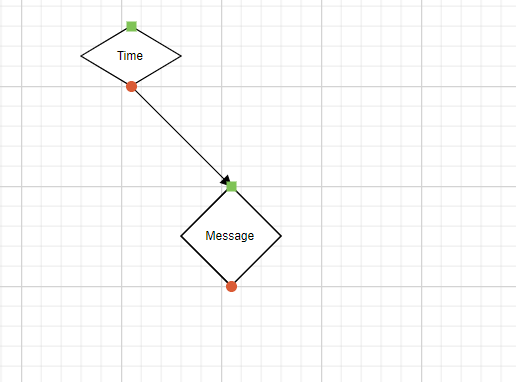

I have two nodes and one connector on the canvas. The node has 2 ports, and the linker connects to the port of the node. See the figure below for details:

Empty

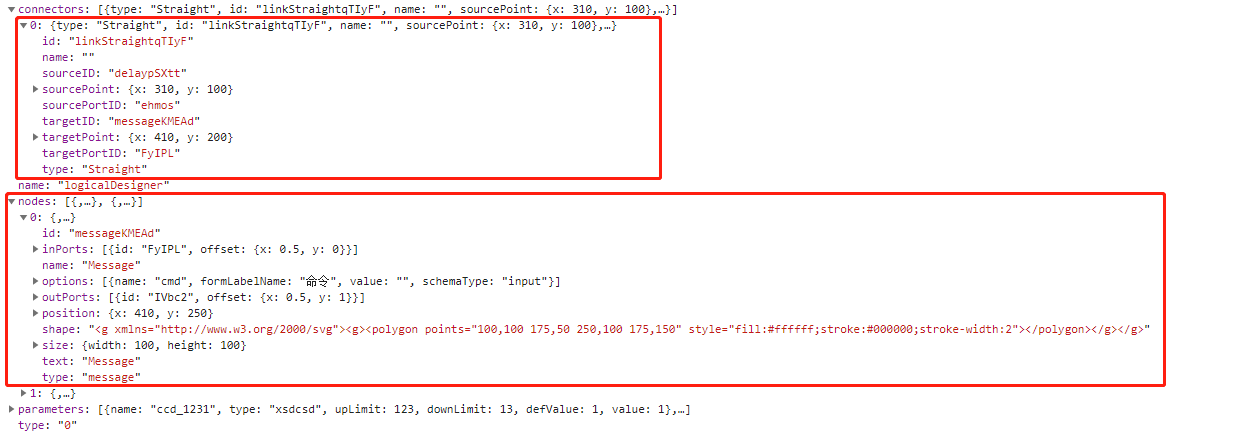

At this time, I will save the node and connector data to localStorage. For the saved data, please see the picture below:


Empty

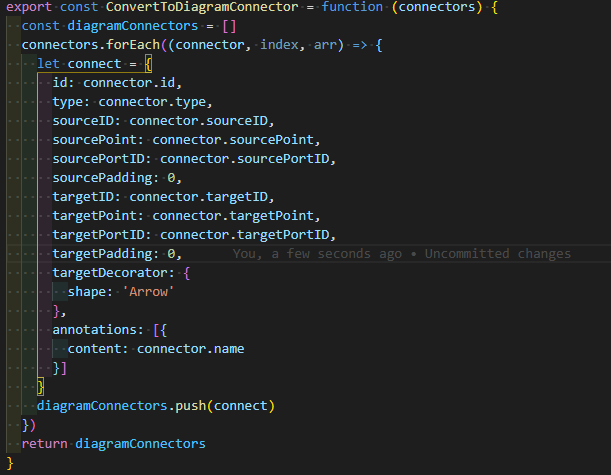

After the save is successful, I will clear the current canvas and reload the node and connector data stored in localStorage. Assign the stored attribute data of nodes and connectors to Diagram nodes and connectors.

Empty

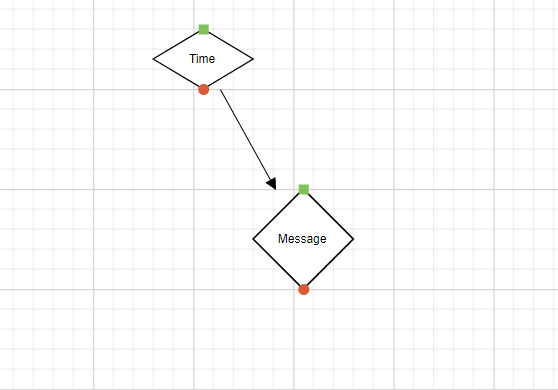

But after the load is successful, the effect displayed on the canvas is wrong. For details, see the following picture:

Empty


The start and end positions of the connector are misaligned. The connector should be connected to the port of the node, but the actual situation is not.
